Metric 32BSS-3 Stainless Steel Roller Chains

  • Categories: Triple Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 32BSS-3 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (5)_compressed.jpeg

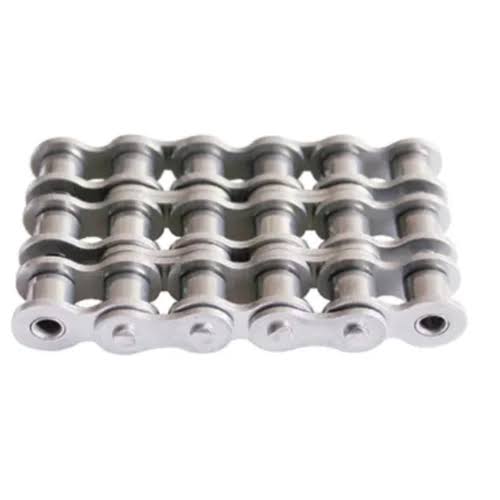

    About 32BSS-3 Stainless Steel Roller Chain

    32BSS‑3 triplex stainless steel roller chain is manufactured following ISO‑606 metric standard. Made of high‑quality 304 stainless steel, it owns remarkable corrosion resistance, high tensile strength and stable running performance. The three‑strand design greatly increases load‑bearing capacity. It can operate reliably under humid, acidic, alkaline and high‑temperature conditions. This chain is widely used in food machinery, chemical equipment, marine transport and heavy‑duty conveyor systems. Custom attachments, chain lengths and surface‑treatment solutions are available for your special applications.

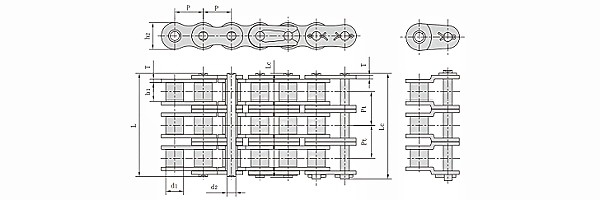

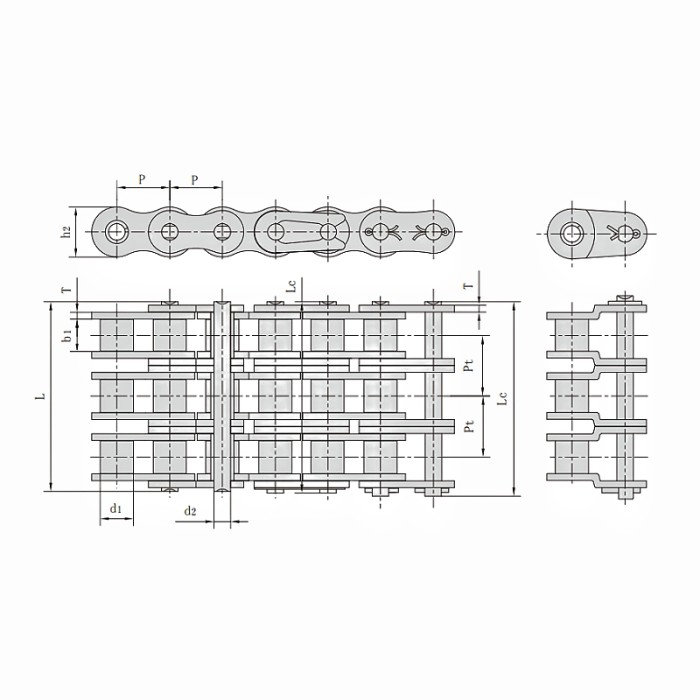

    Metric 32BSS-3 Stainless Steel Roller Chain Dimension




  • Pitch (P): 50.8mm
  • Roller diameter : 29.21mm
  • Width between inner plates (b1): 30.99mm
  • Pin diameter (d2): 17.81mm
  • Pin length (L): 183.2mm
  • Pin length (Lc): 188.2mm
  • Inner Plate depth (h2): 42mm
  • Plate thickness (t/T): 7/6mm
  • Transverse pitch (Pt): 58.55mm
