Metric 32BSS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 32BSS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

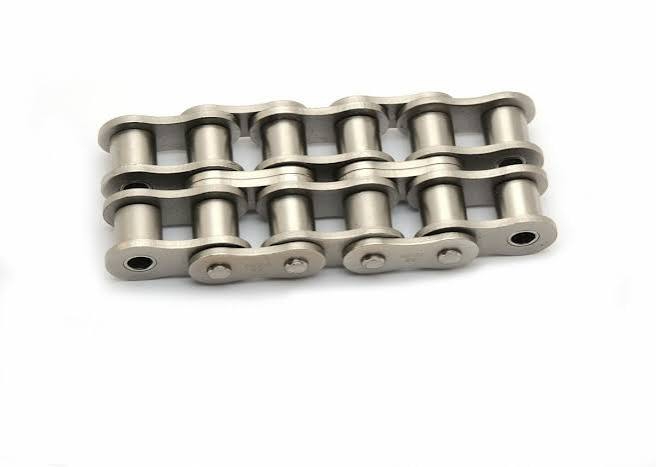

    About 32BSS-2 Stainless Steel Roller Chain

    32BSS‑2 double‑strand stainless steel roller chain is produced to ISO‑606 metric standard. Constructed from high‑grade 304 stainless steel, this chain delivers excellent corrosion resistance, good tensile strength and long‑term wear‑resistance. The double‑row structure provides higher load‑carrying capacity than single‑strand chains. It works steadily in humid, corrosive and high‑temperature environments, ideal for food processing, chemical machinery, marine conveyors and industrial transmission. Custom chain lengths, attachments and surface treatments are offered to meet your project demands.

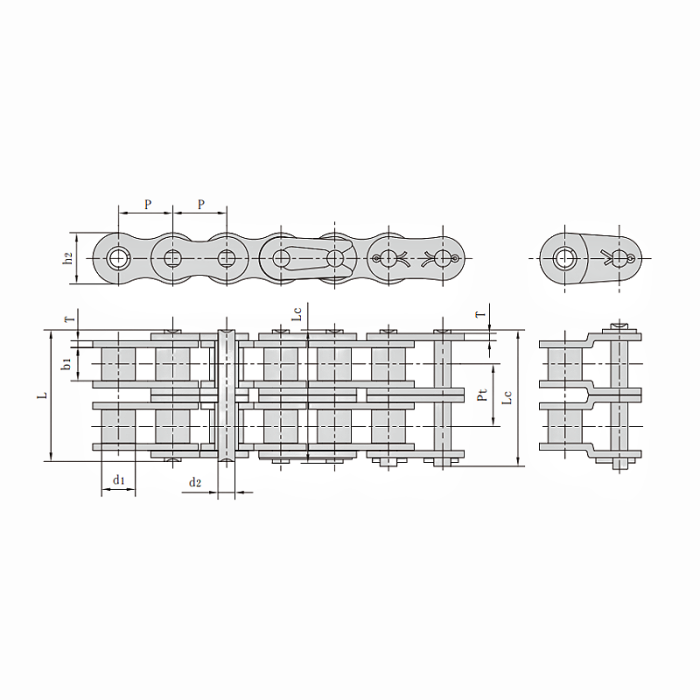

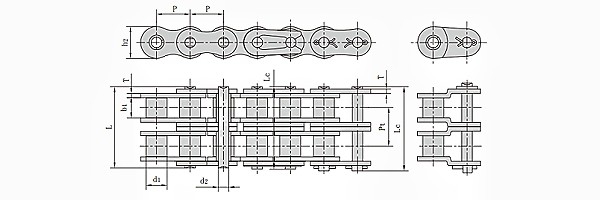

    Metric 32BSS-2 Stainless Steel Roller Chain Dimension




  • Pitch (P): 50.8mm
  • Roller diameter : 29.21mm
  • Width between inner plates (b1): 30.99mm
  • Pin diameter (d2): 17.81mm
  • Pin length (L): 124.6mm
  • Pin length (Lc): 129.6mm
  • Inner Plate depth (h2): 42mm
  • Plate thickness (t/T): 7/6mm
  • Transverse pitch (Pt): 58.55mm
