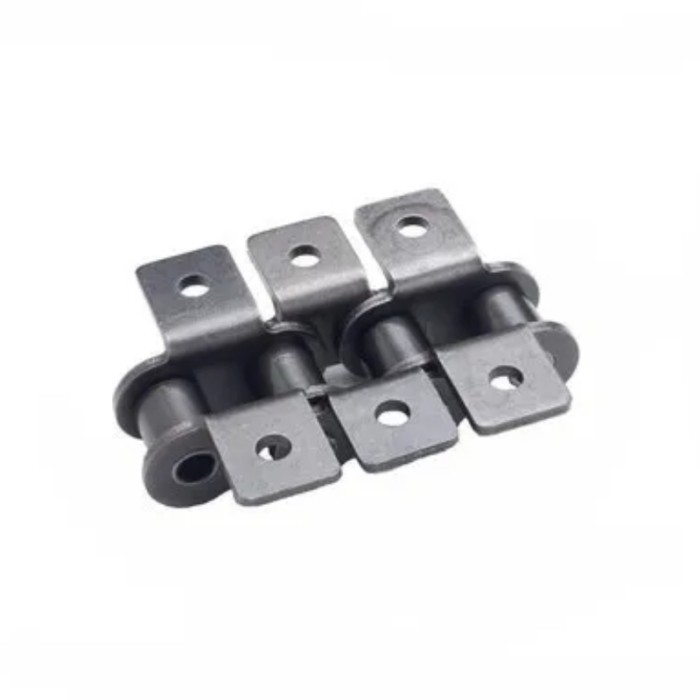

Metric 28B Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: Metric 28B-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

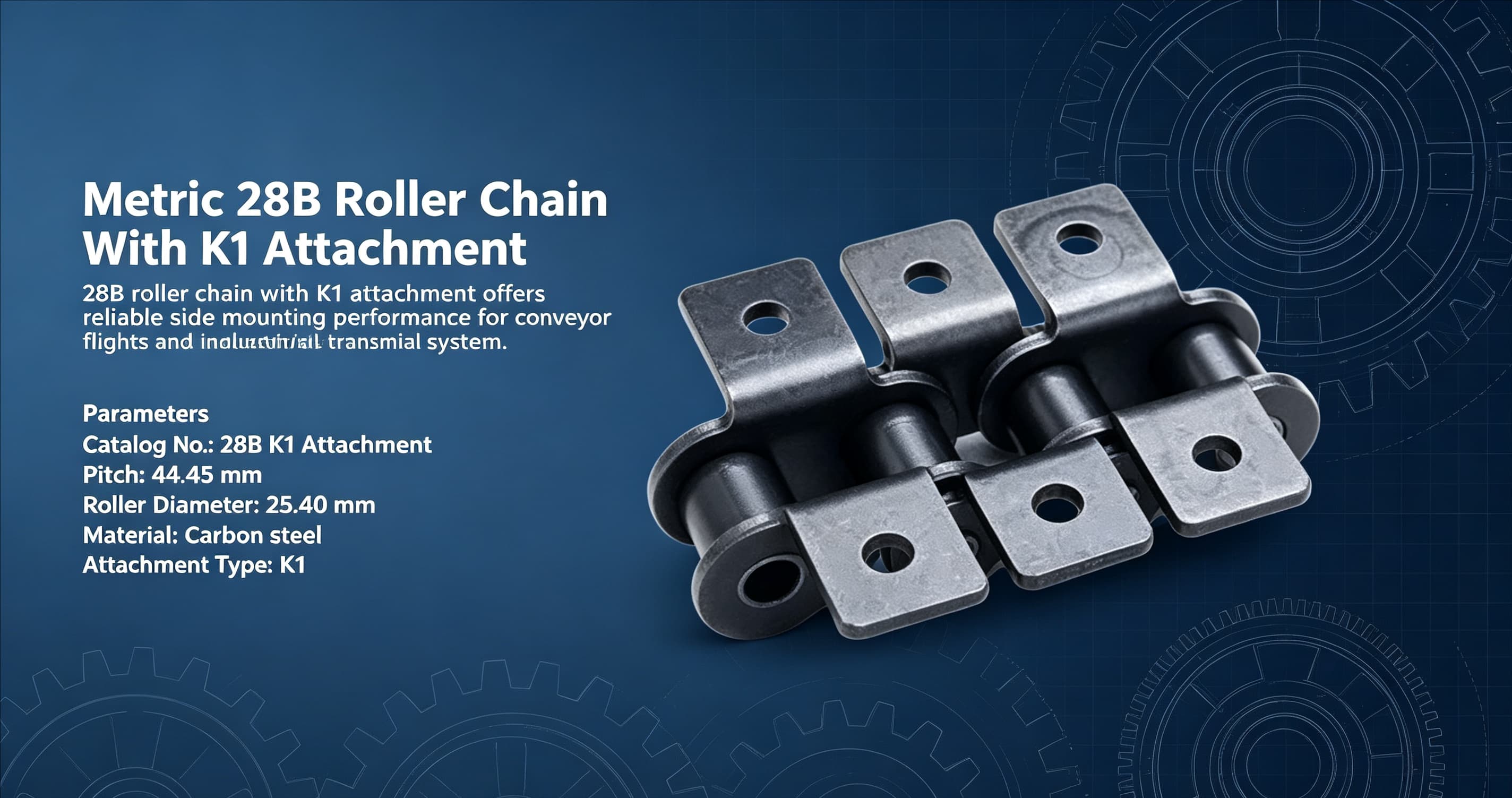

    裁剪旋转 (8)_compressed.jpeg


    About 28B K1 Attachment Roller Chain


    28B K1 attachment roller chain is produced strictly according to ISO metric standards. Made of heat‑treated high‑strength carbon steel, it features great tensile strength, excellent wear resistance and stable heavy‑load transmission. Fitted with K1 upright attachments, this heavy‑duty chain is specially designed for material‑handling and conveying tasks. It is widely used in large agricultural machinery, heavy‑duty conveyors, industrial assembly lines and bulk‑handling equipment. Custom attachment spacing, surface treatments and other specifications are available upon your request.

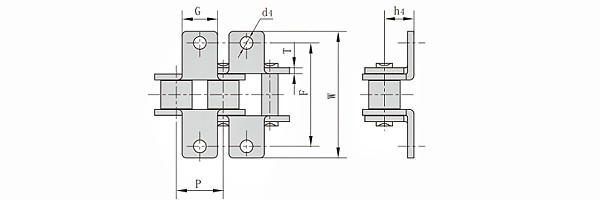

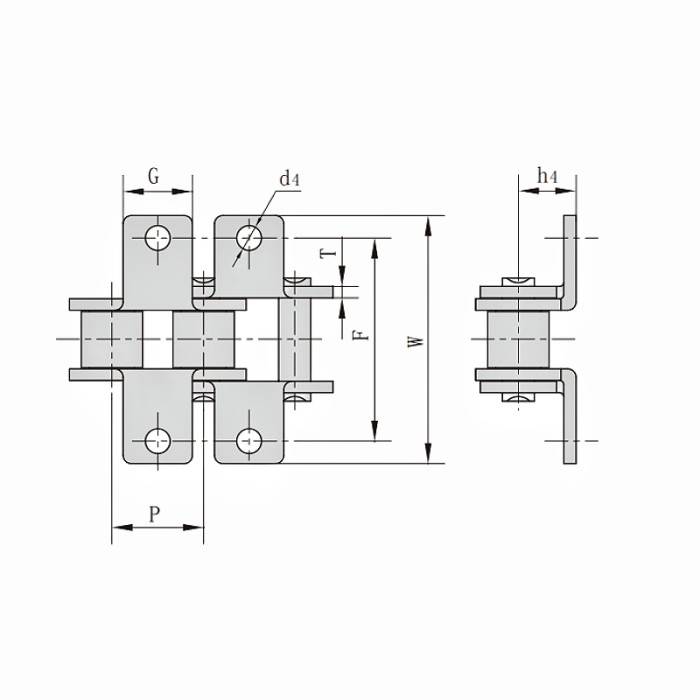

    Metric 28B K1 Attachment Roller Chain Dimension





  • Pitch (P): 44.45mm
  • Attachment Dimension (G): 35mm
  • Attachment Dimension (F): 88.9mm
  • Attachment Dimension (W): 123mm
  • Attachment Dimension (h4): 28.58mm
  • Attachment Dimension (d4): 13.1mm
  • Link Plate Thickness (T): 6mm
