Metric 28B Roller Chain With A1 Attachment

  • Categories: Roller Chain With A1 Attachments
  • Brand: HXST-Drive
  • Model: Metric 28B-A1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (7)_compressed.jpeg

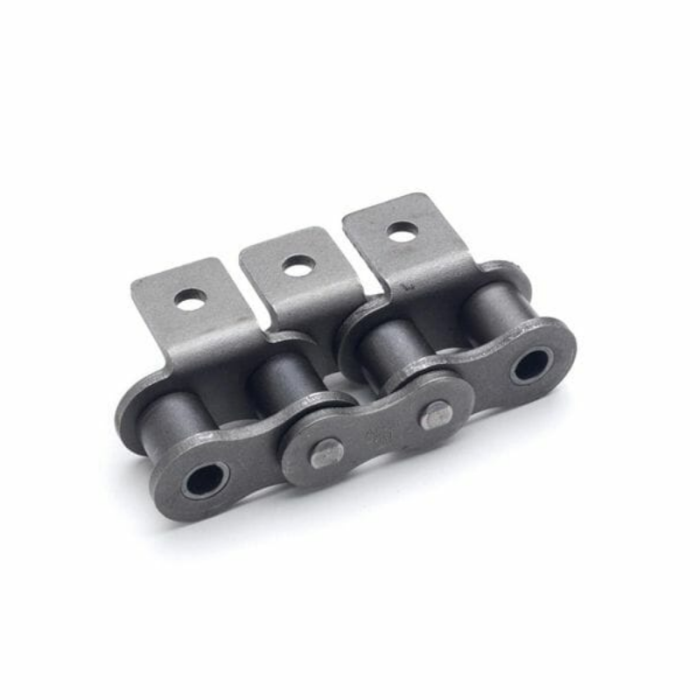

    About 28B A1 Attachment Roller Chain


    28B A1 attachment roller chain is manufactured in strict accordance with ISO metric standards. Made of high‑strength heat‑treated carbon steel, it delivers excellent wear resistance and stable heavy‑load transmission performance. Equipped with A1 attachments on selected links, this chain is designed for conveying and material‑handling tasks. It is widely used on agricultural machinery, assembly lines, heavy‑duty conveyors and automated production equipment. Custom‑made attachment spacing, surface treatments and other specifications are available to meet your special requirements.

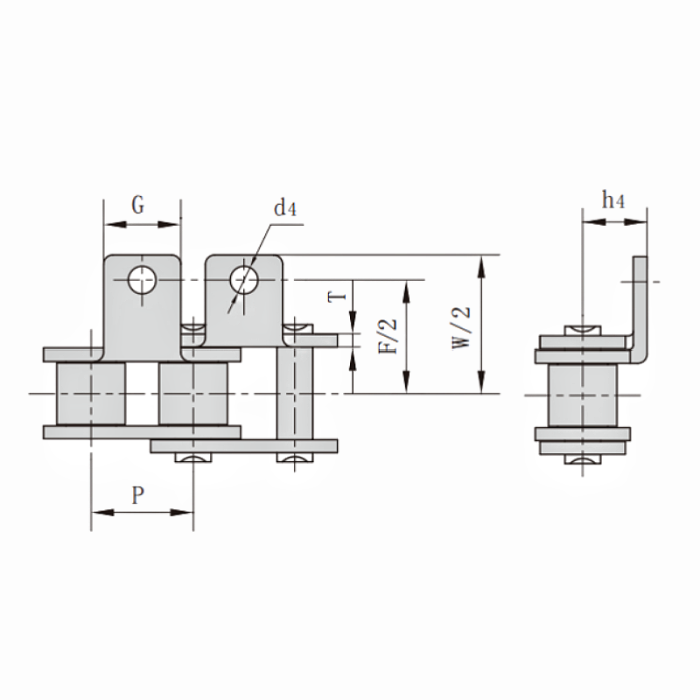

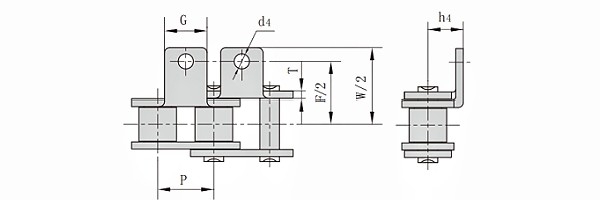

    Metric 28B A1 Attachment Roller Chain Dimension





  • Pitch (P): 44.45mm
  • Attachment Dimension (G): 35mm
  • Attachment Dimension (F): 88.9mm
  • Attachment Dimension (W): 123mm
  • Attachment Dimension (h4): 28.58mm
  • Attachment Dimension (d4): 13.1mm
  • Link Plate Thickness (T): 6mm
