Metric 28BSS-3 Stainless Steel Roller Chains

  • Categories: Triple Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 28BSS-3 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (6)_compressed.jpeg

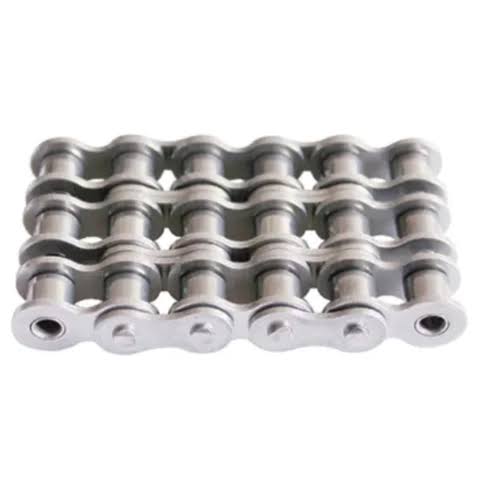

    About 28BSS-3 Stainless Steel Roller Chain

    28BSS‑3 triplex stainless‑steel roller chain is manufactured to ISO metric standards. Made of premium stainless‑steel material, it provides outstanding anti‑corrosion and rust‑resistant performance for harsh working environments. The three‑strand design greatly improves load‑bearing capacity while keeping stable power transmission. It is well‑suited for humid, salty, acidic and high‑low‑temperature conditions, widely used in food‑processing, chemical, marine and heavy‑duty conveyor equipment. Custom attachments and special surface treatments are available upon your request.

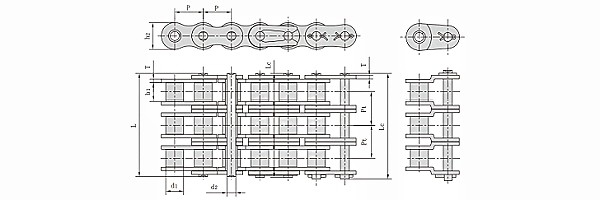

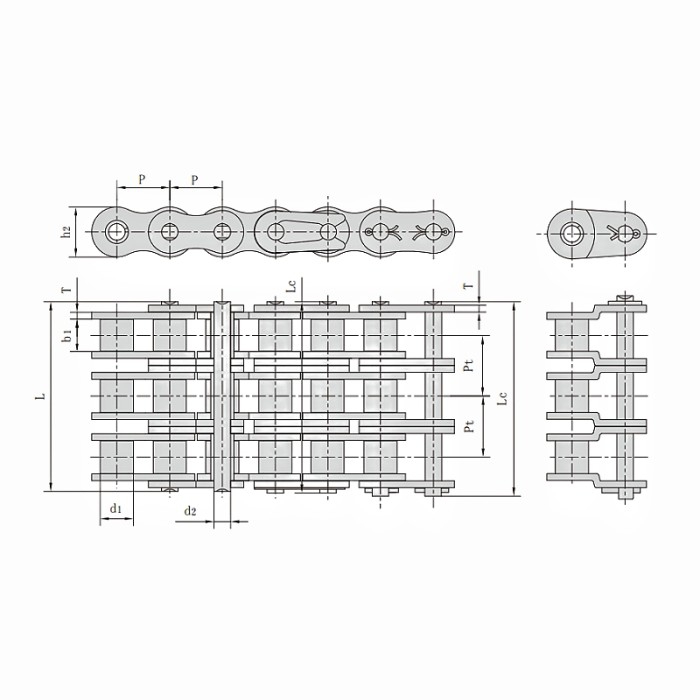

    Metric 28BSS-3 Stainless Steel Roller Chain Dimension




  • Pitch (P): 44.45mm
  • Roller diameter : 27.94mm
  • Width between inner plates (b1): 30.99mm
  • Pin diameter (d2): 15.9mm
  • Pin length (L): 184.2mm
  • Pin length (Lc): 188.7mm
  • Inner Plate depth (h2): 36.7mm
  • Plate thickness (t/T): 7.5/6mm
  • Transverse pitch (Pt): 59.56mm
