Metric 28BSS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 28BSS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (5)_compressed.jpeg

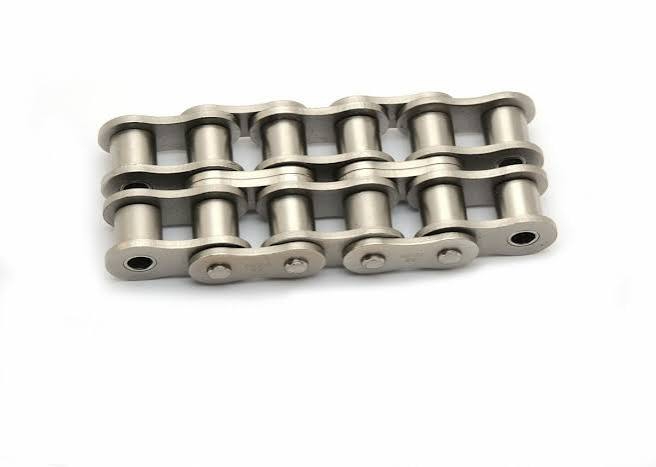

    About 28BSS-2 Stainless Steel Roller Chain

    28BSS‑2 double‑strand stainless steel roller chain complies with ISO metric standards. Fabricated from high‑quality stainless steel, this chain delivers excellent corrosion‑resistance, rust‑proof property and stable power transmission. Its double‑row structure provides higher load‑bearing capacity than single‑strand chains. Perfect for humid, acidic, salty and extreme‑temperature working conditions, it is commonly applied in food machinery, chemical conveyors, marine‑related equipment. Custom attachments and special surface treatments can be offered as your requirements.

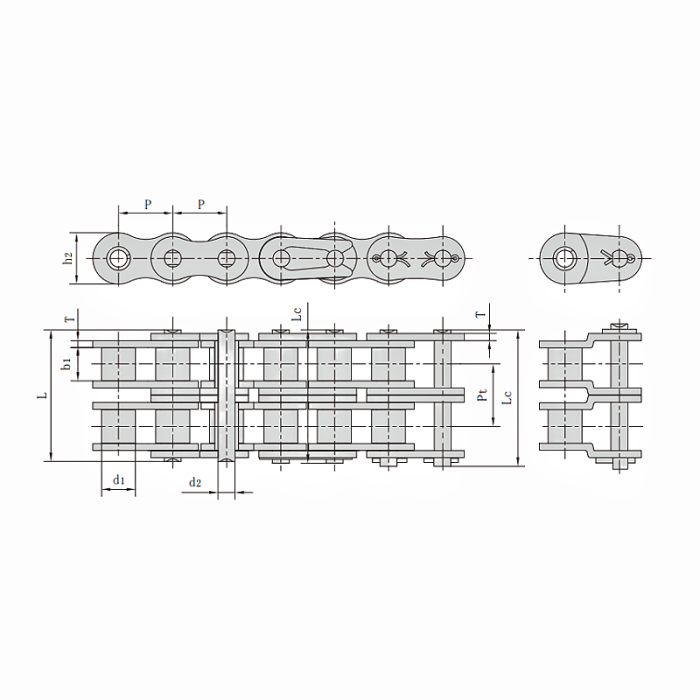

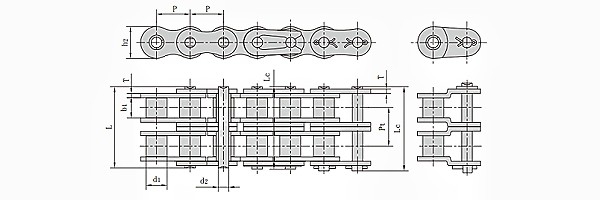

    Metric 28BSS-2 Stainless Steel Roller Chain Dimension




  • Pitch (P): 44.45mm
  • Roller diameter : 27.94mm
  • Width between inner plates (b1): 30.99mm
  • Pin diameter (d2): 15.9mm
  • Pin length (L): 124.6mm
  • Pin length (Lc): 129.1mm
  • Inner Plate depth (h2): 36.7mm
  • Plate thickness (t/T): 7.5/6mm
  • Transverse pitch (Pt): 59.56mm
