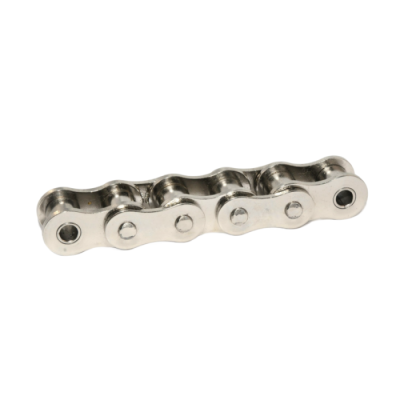

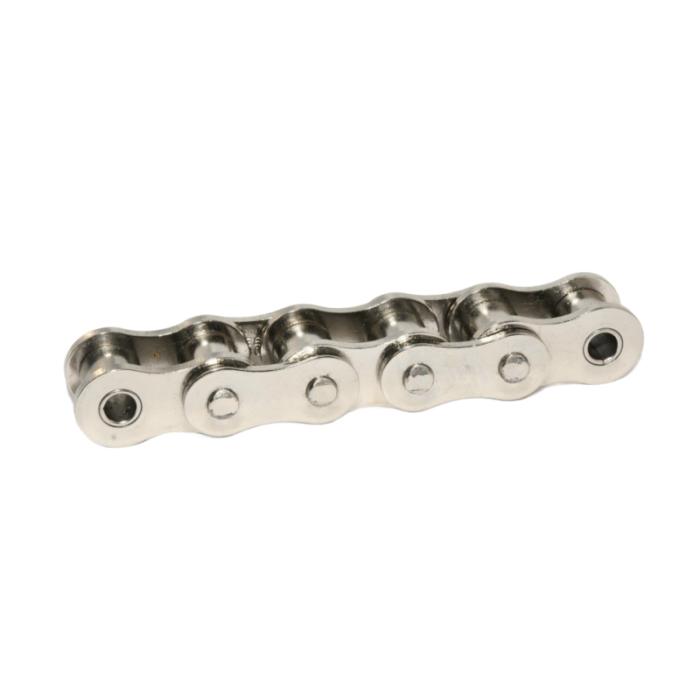

Metric 28BSS-1 Stainless Steel Roller Chains

  • Categories: Single Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 28BSS-1 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

    About 28BSS-1 Stainless Steel Roller Chain

    28BSS‑1 single‑strand stainless steel roller chain is produced according to ISO metric standards. Made of premium stainless‑steel material, it features outstanding corrosion resistance, rust‑proof performance and stable transmission. It can work reliably under humid, acidic, alkaline and high‑low temperature environments. Widely used for food processing, chemical equipment, marine machinery and corrosive‑condition conveyor systems. Custom surface treatments and various attachments are available on request.

    Metric 28BSS-1 Stainless Steel Roller Chain Dimension




  • Pitch (P): 44.45mm
  • Roller diameter (d1): 27.94mm
  • Width between inner plates (b1): 30.99mm
  • Pin diameter (d2): 15.9mm
  • Pin length (L): 61.5mm
  • Pin length (Lc): 69.5mm
  • Inner plate depth (h2): 36.7mm
  • Plate thickness (t/T) :7.5/ 6mm
