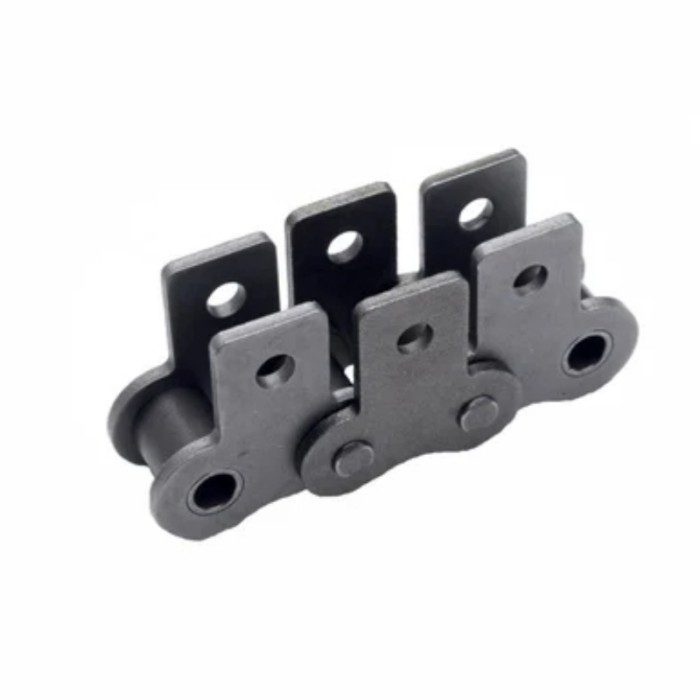

About 24B SK1 Attachment Roller Chain

24B SK1 attachment roller chain is manufactured to ISO‑606 standard with a pitch of 38.1 mm. Made of premium carbon‑steel material and heat‑treated, it delivers high tensile strength, excellent wear‑resistance and stable heavy‑load performance. Equipped with SK1 bent attachments on both sides with one mounting hole each, this chain is specially built for conveying, lifting and material‑handling systems. It is widely used in agricultural machinery, packaging equipment, automated conveyor lines and industrial transport facilities. Custom‑made services for surface treatment, attachment spacing and stainless‑steel versions are available to meet your special requirements.

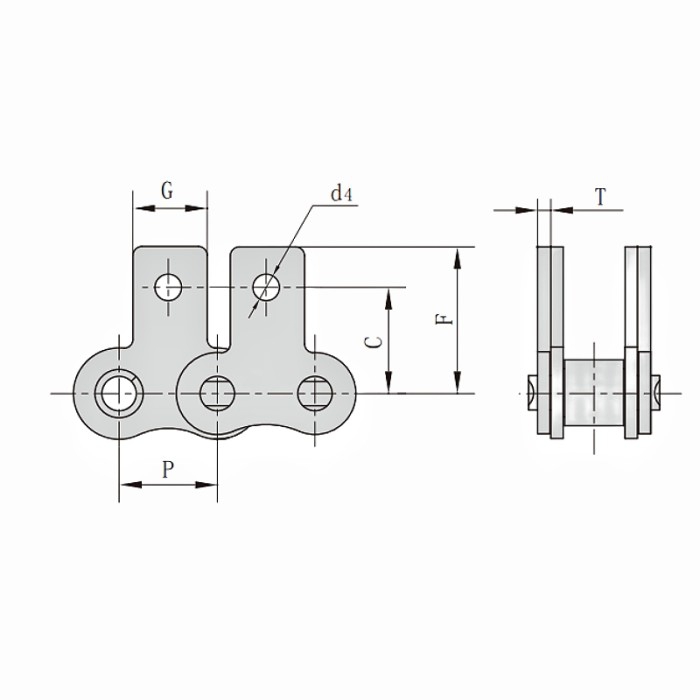

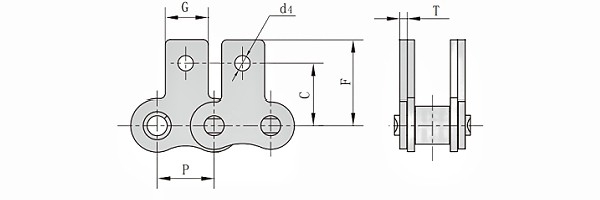

Metric 24B SK1 Attachment Roller Chain Dimension

Pitch (P): 38.1mm

Attachment Dimension (G): 36mm

Attachment Dimension (C): 36mm

Attachment Dimension (F): 61.5mm

Attachment Dimension (d4): 10.5mm

Link Plate Thickness (T): 4.8mm
