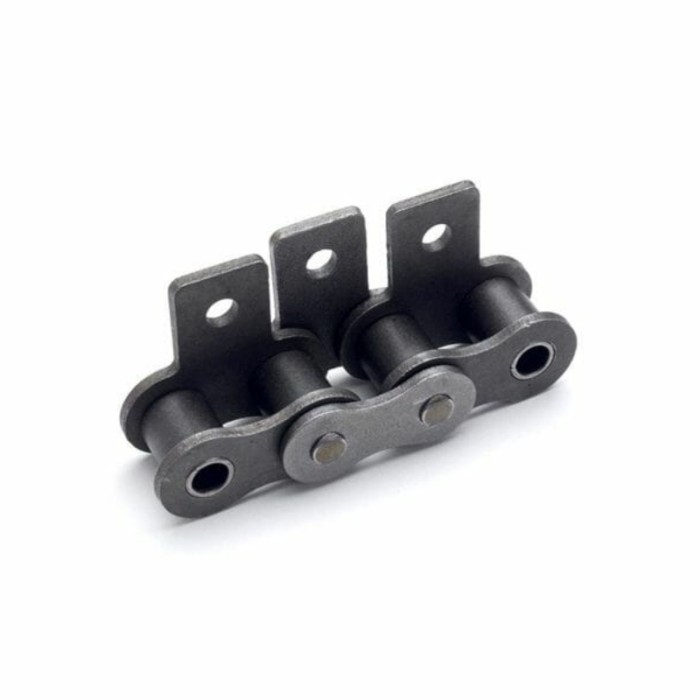

About 24B SA1 Attachment Roller Chain

24B SA1 attachment roller chain complies with ISO‑606 standard, pitch 38.1mm. Constructed from high‑grade carbon steel and heat‑treated, it features great tensile strength, outstanding wear resistance and stable heavy‑load operation. SA1 extended straight attachments are pre‑fitted on the chain, ideal for material carrying, conveyor systems and automated production lines. It is widely applied in packaging machinery, agricultural equipment and industrial transport facilities. Custom‑built options including surface treatment, attachment spacing and stainless‑steel material are available upon your request.

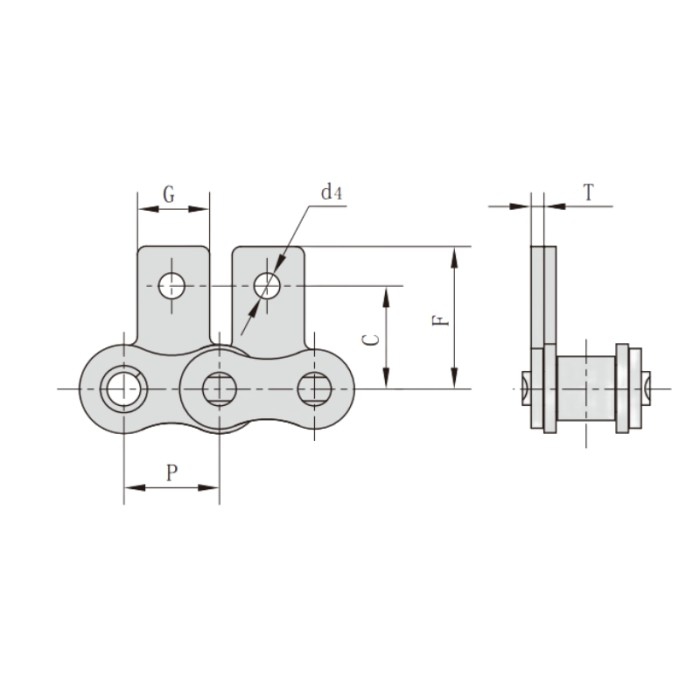

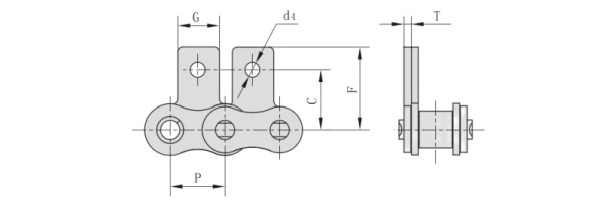

Metric 24B SA1 Attachment Roller Chain Dimension

Pitch (P): 38.1mm

Attachment Dimension (G): 36mm

Attachment Dimension (C): 36mm

Attachment Dimension (F): 61.5mm

Attachment Dimension (d4): 10.5mm

Link Plate Thickness (T): 4.8mm
