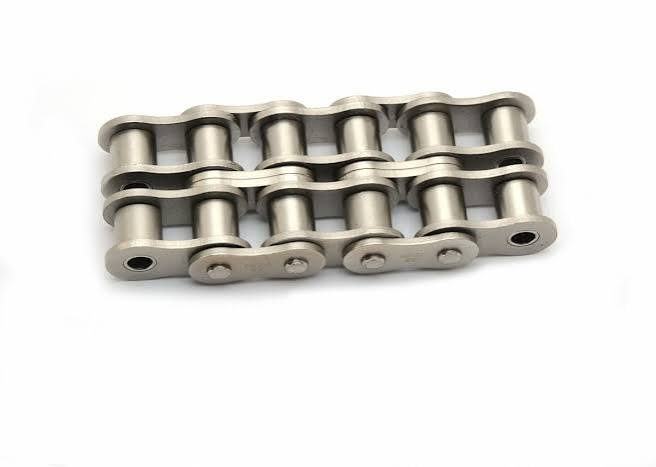

Metric 24BSS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 24BSS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

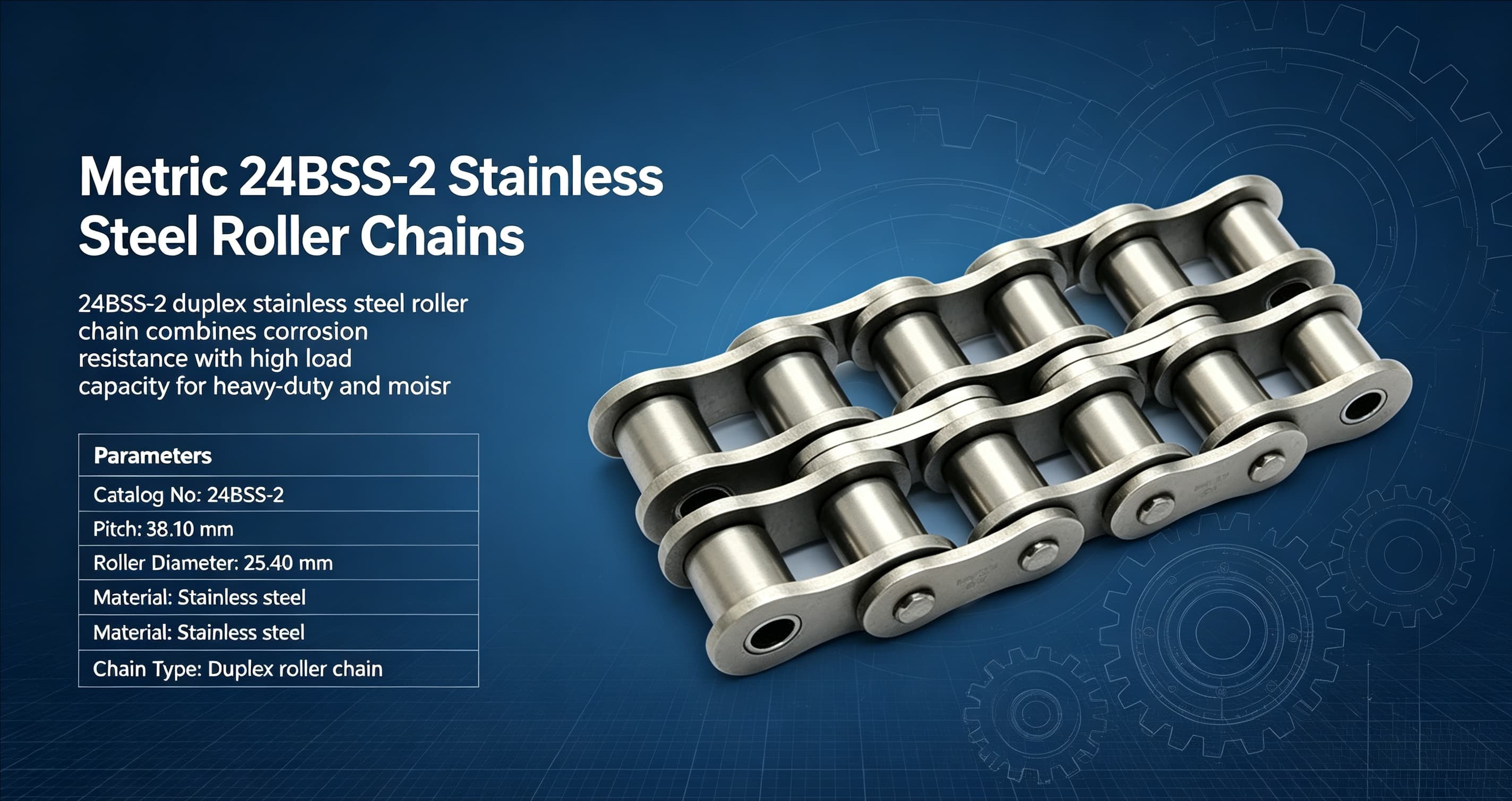

    About 24BSS-2 Stainless Steel Roller Chain

    24BSS‑2 stainless‑steel roller chain is a duplex metric chain manufactured to ISO standards. Made of premium stainless‑steel material, it delivers great corrosion‑resistance, rust‑proof performance and improved tensile load compared with single‑strand chains. Precision‑processed parts guarantee smooth, low‑noise operation and long‑lasting service life. It is well‑suited for wet, corrosive, high‑humidity environments, widely used in food‑processing, chemical machinery, marine equipment and heavy‑duty conveyor systems. Custom attachments and special surface treatments can be supplied on request.

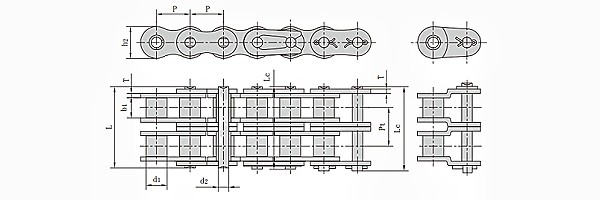

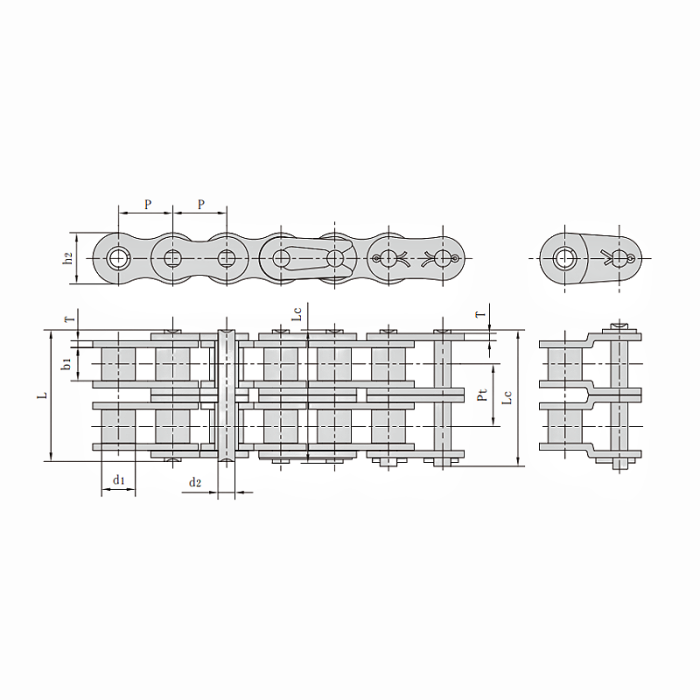

    Metric 24BSS-2 Stainless Steel Roller Chain Dimension





  • Pitch (P): 38.1mm
  • Roller diameter : 25.4mm
  • Width between inner plates (b1): 25.4mm
  • Pin diameter (d2): 14.63mm
  • Pin length (L): 101.7mm
  • Pin length (Lc): 106.2mm
  • Inner Plate depth (h2): 33.2mm
  • Plate thickness (t/T): 6/4.8mm
  • Transverse pitch (Pt): 48.36mm
