Metric 24BSS-1 Stainless Steel Roller Chains

  • Categories: Single Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 24BSS-1 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (3)_compressed.jpeg

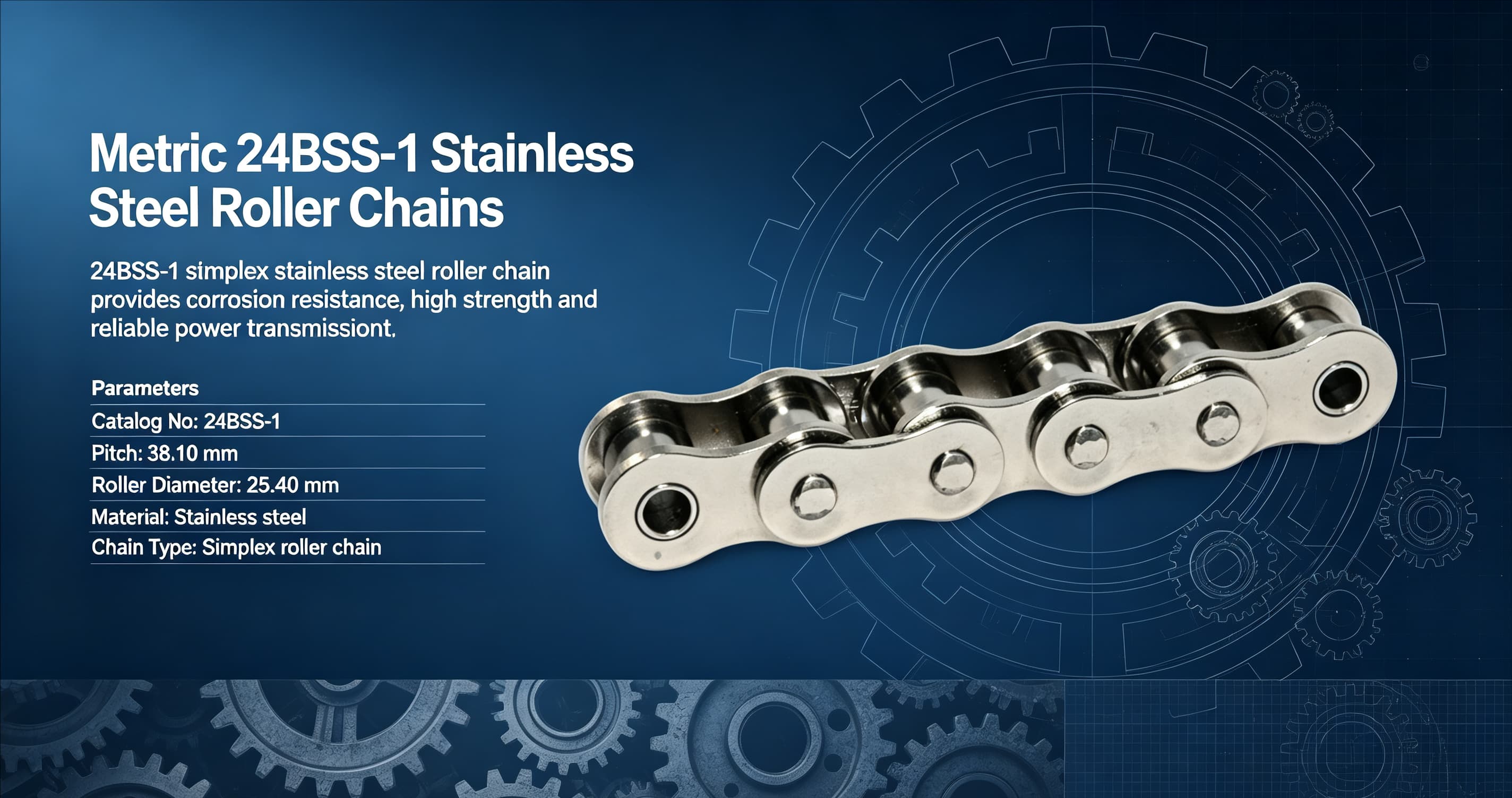

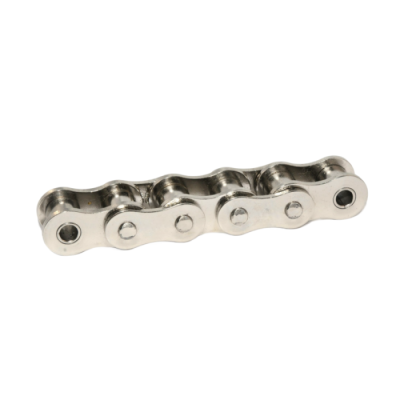

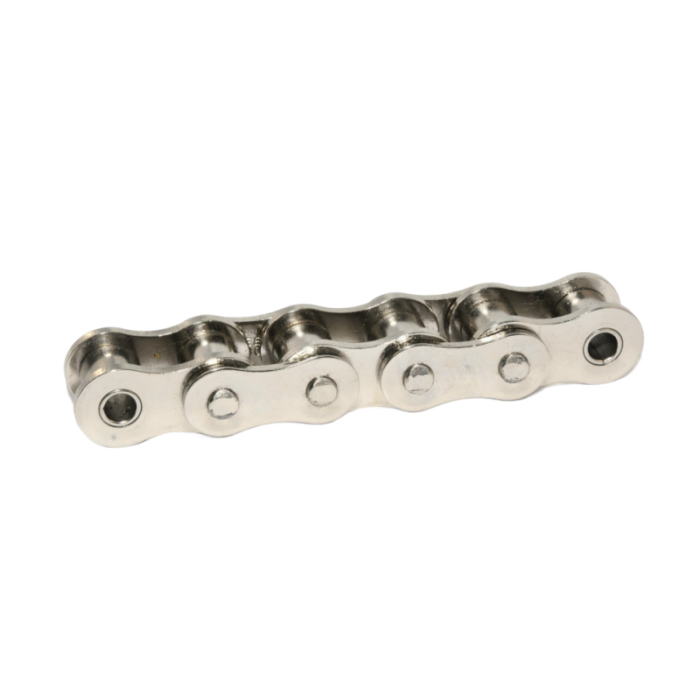

    About 24BSS-1 Stainless Steel Roller Chain

    24BSS‑1 stainless steel roller chain is a single‑strand metric chain conforming to ISO standards. Made of premium stainless‑steel material, it features excellent corrosion‑resistance, rust‑proof property and high tensile strength. It runs smoothly with low noise and long service life, perfectly suited for wet, acidic, high‑humidity and other harsh working environments. Widely used in food‑processing equipment, chemical machinery, marine and conveyor systems. Custom attachments and special surface treatments are available upon your request.

    Metric 24BSS-1 Stainless Steel Roller Chain Dimension




  • Pitch (P): 38.1mm
  • Roller diameter (d1): 25.4mm
  • Width between inner plates (b1): 25.4mm
  • Pin diameter (d2): 14.63mm
  • Pin length (L): 63.4mm
  • Pin length (Lc): 57.8mm
  • Inner plate depth (h2): 33.2mm
  • Plate thickness (t/T) : 6/4.8mm
