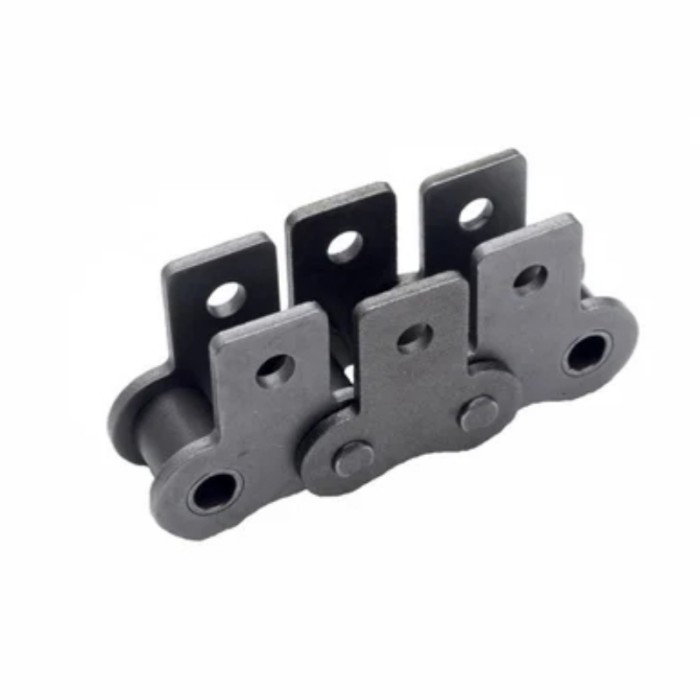

About 16B SK1 Attachment Roller Chain

16B SK1 Attachment Roller Chain complies with ISO 606‑B metric standard, with a pitch of 25.4mm. It is fabricated from high‑grade carbon steel and precisely heat‑treated for high tensile strength and outstanding wear‑resistance.

SK1 features straight attachment plates on both sides with one mounting hole, ideal for fixing fixtures and transporting materials. This heavy‑duty conveyor chain runs steadily under continuous load. It is widely used for agricultural machinery, packaging equipment, automated conveyor systems and processing lines. Custom attachment spacing, surface finishing and stainless‑steel versions are available.

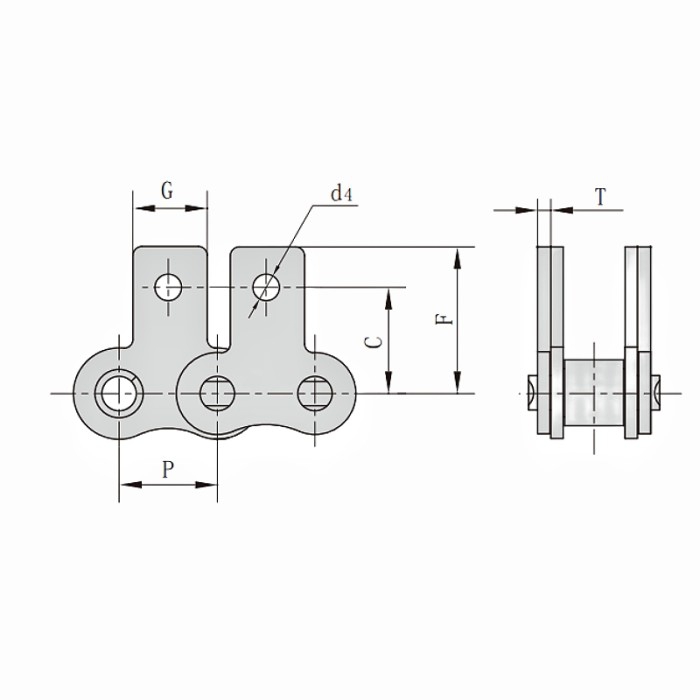

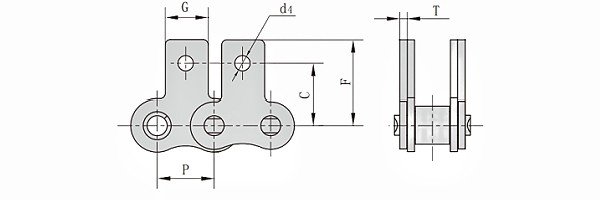

Metric 16B SK1 Attachment Roller Chain Dimension

Pitch (P): 25.4mm

Attachment Dimension (G): 19.1mm

Attachment Dimension (C): 23.15mm

Attachment Dimension (F): 34mm

Attachment Dimension (d4): 6.4mm

Link Plate Thickness (T): 3.1mm
