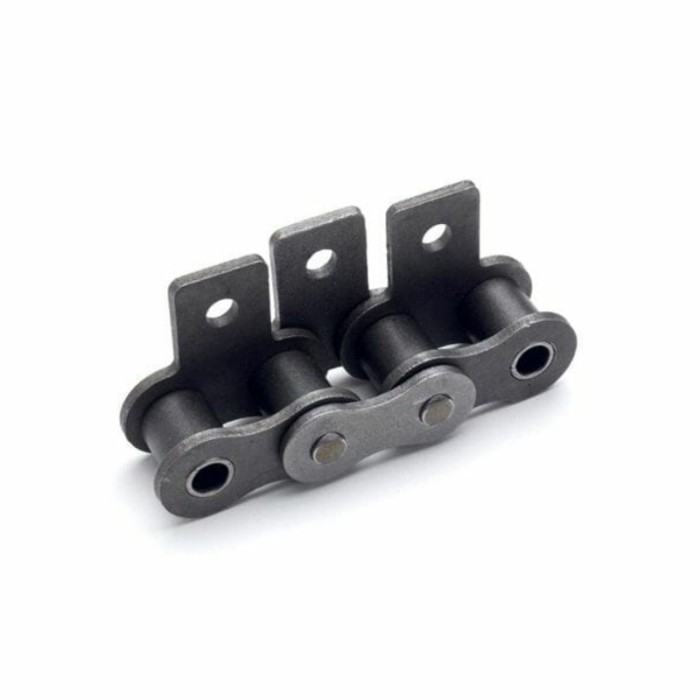

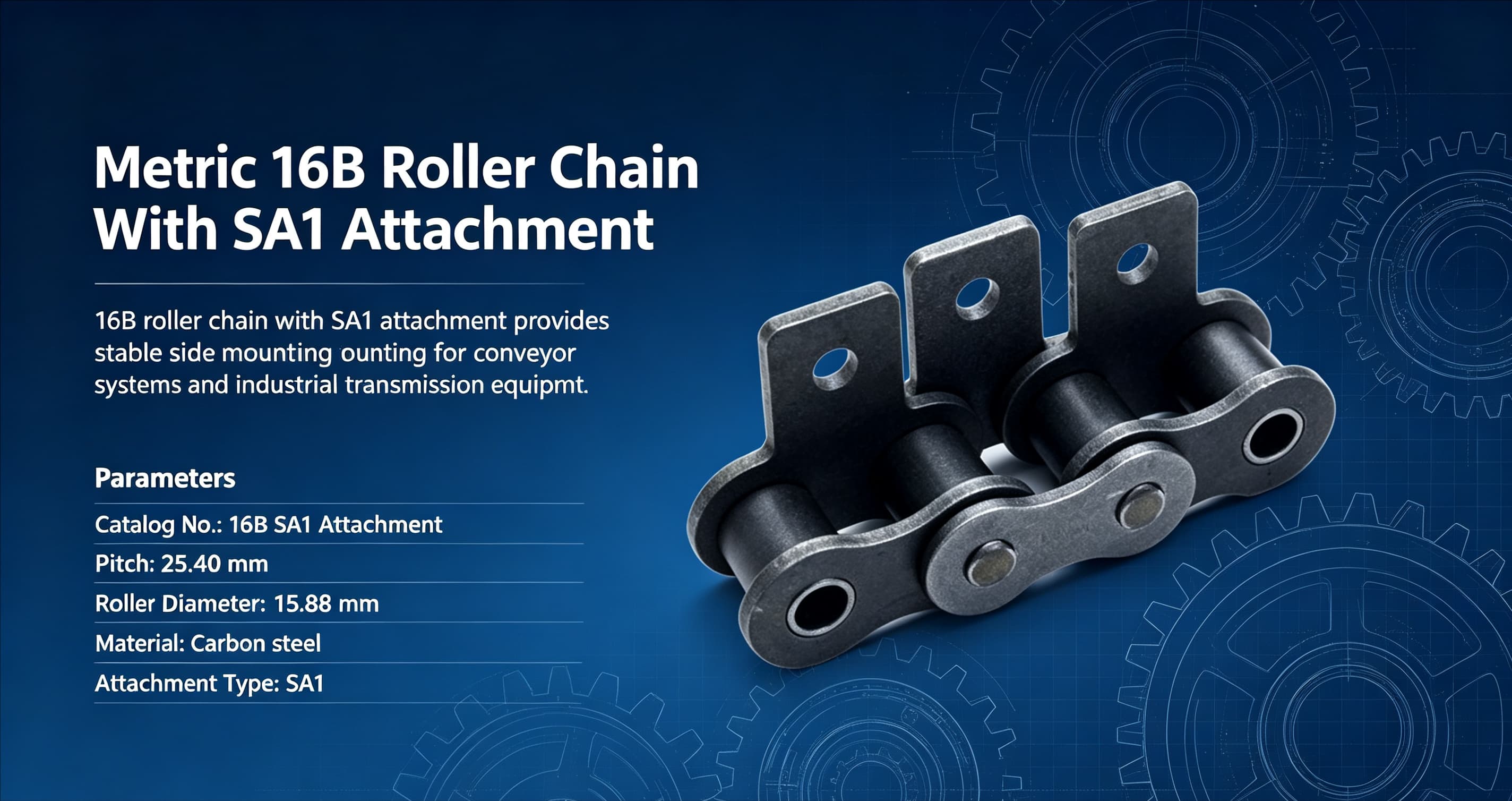

About 16B SA1 Attachment Roller Chain

Our 16B SA1 Attachment Roller Chain is manufactured strictly in accordance with ISO 606‑B metric standard, with a pitch of 25.4mm. It is made of high‑quality carbon steel with precise heat‑treatment, delivering high tensile strength, excellent wear‑resistance and stable performance under heavy‑load operation.

The SA1 one‑side bent attachment with mounting hole is perfectly designed for material conveying, pushing and carrying workpieces. It is widely applied on conveyors, agricultural machinery, packaging and automated production lines. Custom‑made attachments, surface treatments and stainless‑steel versions are available to meet your special working requirements.

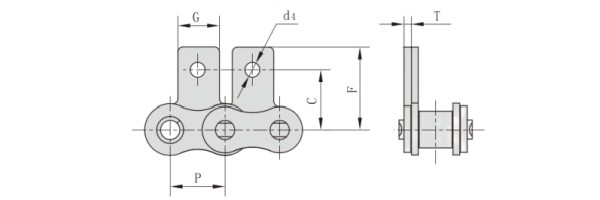

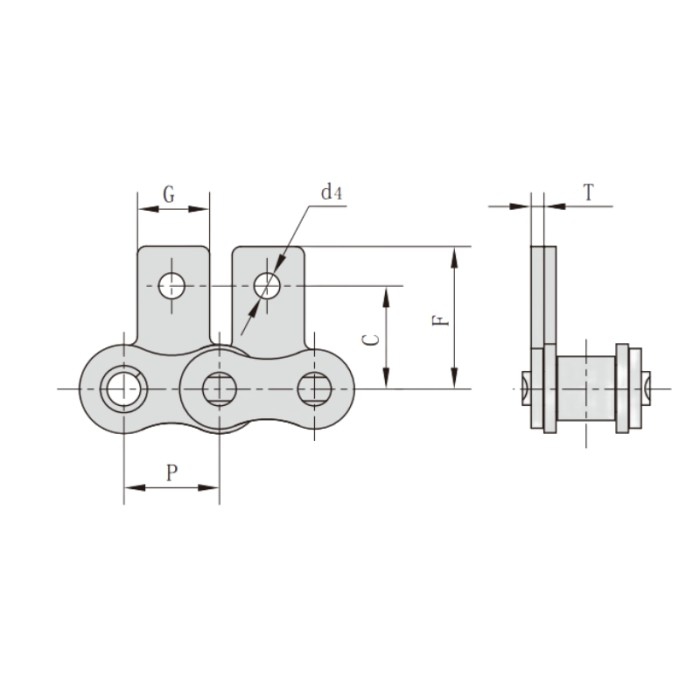

Metric 16B SA1 Attachment Roller Chain Dimension

Pitch (P): 25.4mm

Attachment Dimension (G): 19.1mm

Attachment Dimension (C): 23.15mm

Attachment Dimension (F): 34mm

Attachment Dimension (d4): 6.4mm

Link Plate Thickness (T): 3.1mm
