Metric 16BSS-3 Stainless Steel Roller Chains

  • Categories: Triple Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 16BSS-3 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (3)_compressed.jpeg

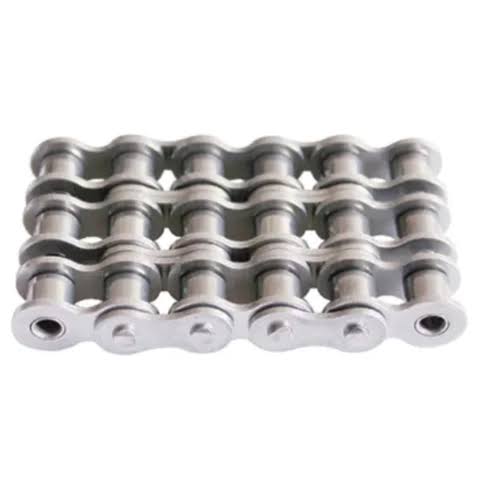

    About 16BSS-3 Stainless Steel Roller Chain

    The 16BSS‑3 triple‑strand stainless steel roller chain is manufactured to ISO metric standards. Made of high‑quality 304/316 stainless steel material, it delivers excellent rust‑resistance, corrosion resistance and high‑temperature performance. This heavy‑duty 3‑row chain provides stronger tensile strength and stable power‑transmission capacity compared with single‑strand types. It works reliably in humid, chemical and outdoor harsh environments. Widely used in food machinery, beverage equipment, wastewater treatment, agricultural conveyors and marine‑related systems. Custom surface treatments, attachments and special sizes are available upon your requirements.

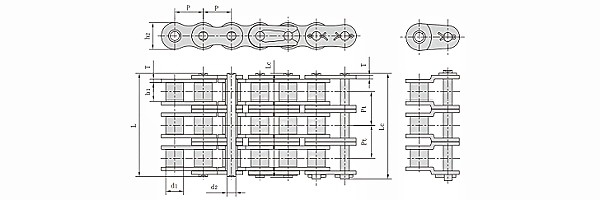

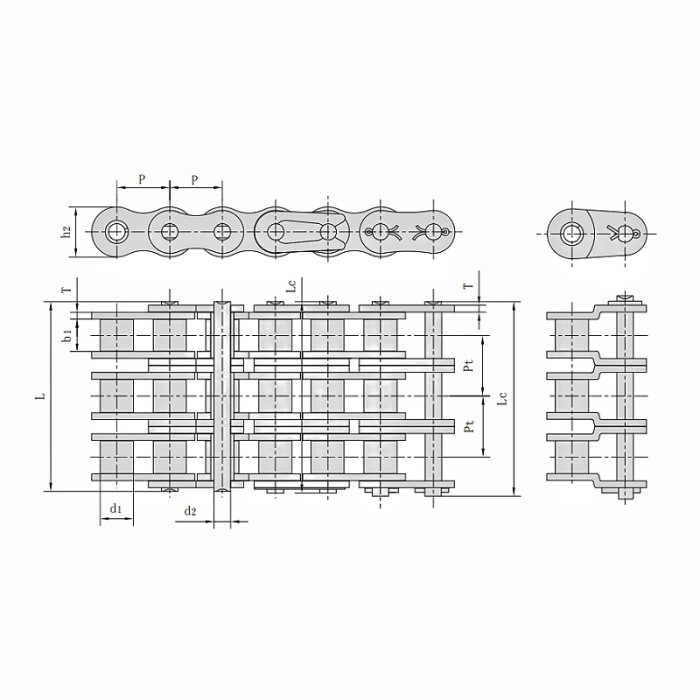

    Metric 16BSS-3 Stainless Steel Roller Chain Dimension





  • Pitch (P): 25.4mm
  • Roller diameter : 15.88mm
  • Width between inner plates (b1): 17.02mm
  • Pin diameter (d2): 8.28mm
  • Pin length (L): 99.8mm
  • Pin length (Lc): 101.2mm
  • Inner Plate depth (h2): 21mm
  • Plate thickness (t/T): 4.15/3.1mm
  • Transverse pitch (Pt): 31.88mm
