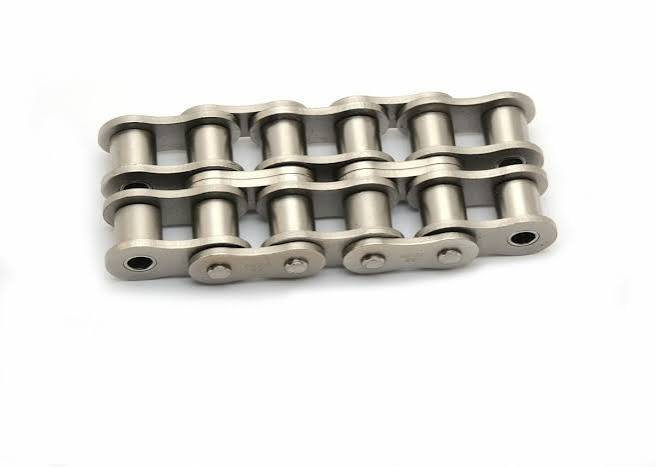

About 16BSS-2 Stainless Steel Roller Chain
16BSS‑2 is double‑row stainless‑steel roller chain produced according to ISO 606 standard. Adopting high‑quality 304 stainless steel, it boasts great rust‑proof and corrosion‑resistant property, suitable for wet, salty and chemical‑exposed working conditions.
With a pitch of 25.4 mm, its double‑strand structure provides higher tensile strength and heavier load‑bearing capacity than simplex chains. Every component is precision‑processed to guarantee smooth, low‑noise transmission and extended service life.
It is commonly used in food machinery, marine equipment, chemical, packaging and heavy‑duty agricultural conveyors. Custom attachments, supporting sprockets and cut‑to‑length service are available.

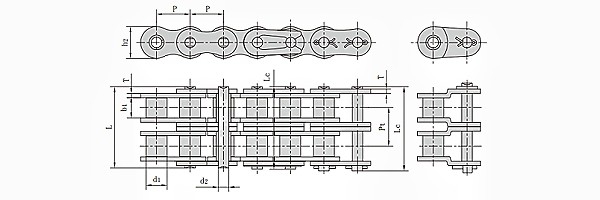

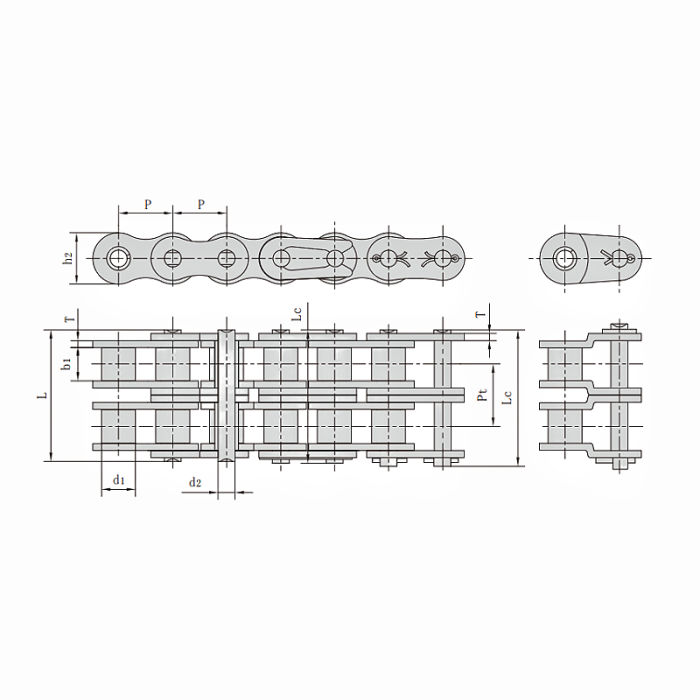

Metric 16BSS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 25.4mmRoller diameter : 15.88mmWidth between inner plates (b1): 17.02mmPin diameter (d2): 8.28mmPin length (L): 68mmPin length (Lc): 69.3mmInner Plate depth (h2): 21mmPlate thickness (t/T): 4.15/3.1mmTransverse pitch (Pt): 31.88mm
