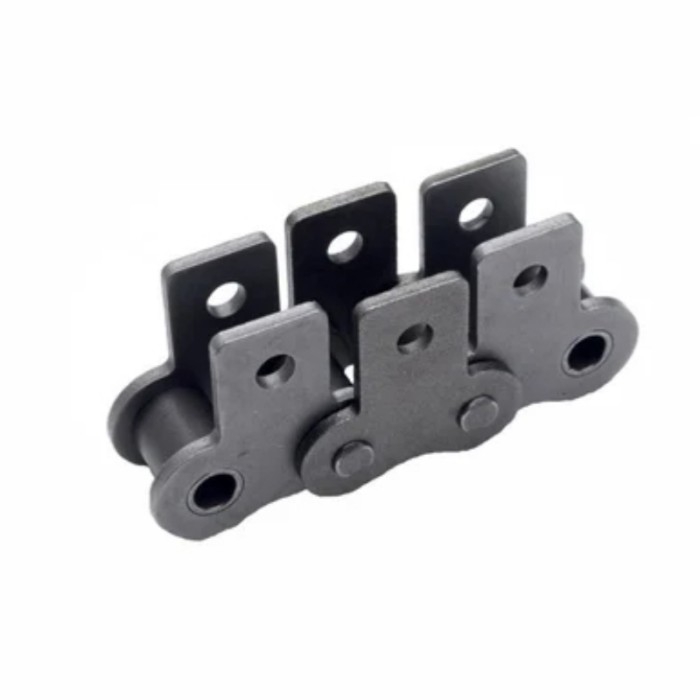

About 10B SK1 Attachment Roller Chain

10B SK1 attachment roller chain is a metric‑size conveyor chain manufactured to ISO 606 and DIN 8187 standards, with a pitch of 15.875 mm. It is fitted with SK‑1 single‑hole straight attachments, perfectly designed for carrying and pushing materials during conveying.

Made of premium carbon‑steel components with heat‑treatment, this chain features high tensile strength, outstanding wear‑resistance and stable running performance. It matches standard 10B sprockets for simple installation and replacement.

Commonly applied in packaging equipment, food processing, automated production lines and wood‑working machinery. Custom attachment spacing and chain lengths are available on request.

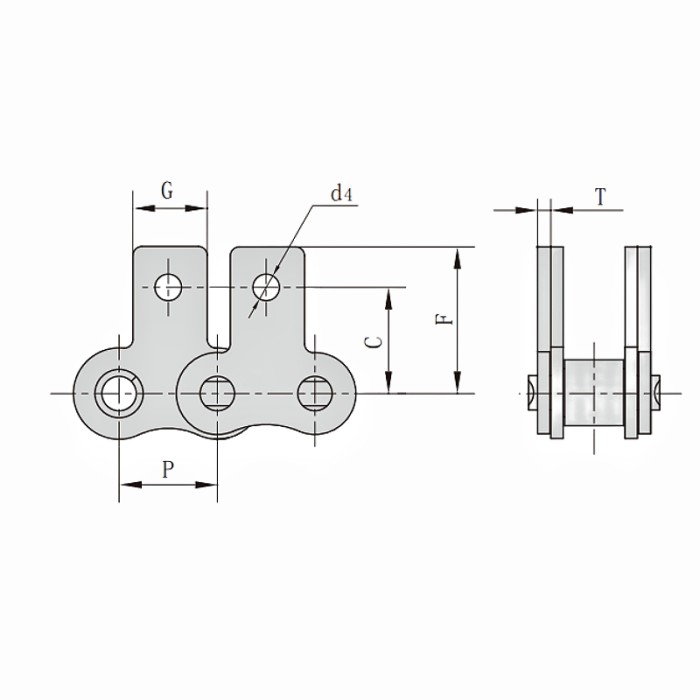

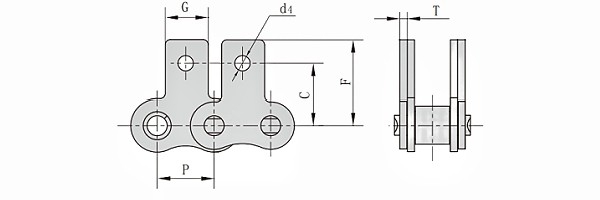

Metric 10B SK1 Attachment Roller Chain Dimension

Pitch (P): 15.875mm

Attachment Dimension (G): 14.3mm

Attachment Dimension (C): 16.5mm

Attachment Dimension (F): 22.95mm

Attachment Dimension (d4): 5.3mm

Link Plate Thickness (T): 1.7mm
