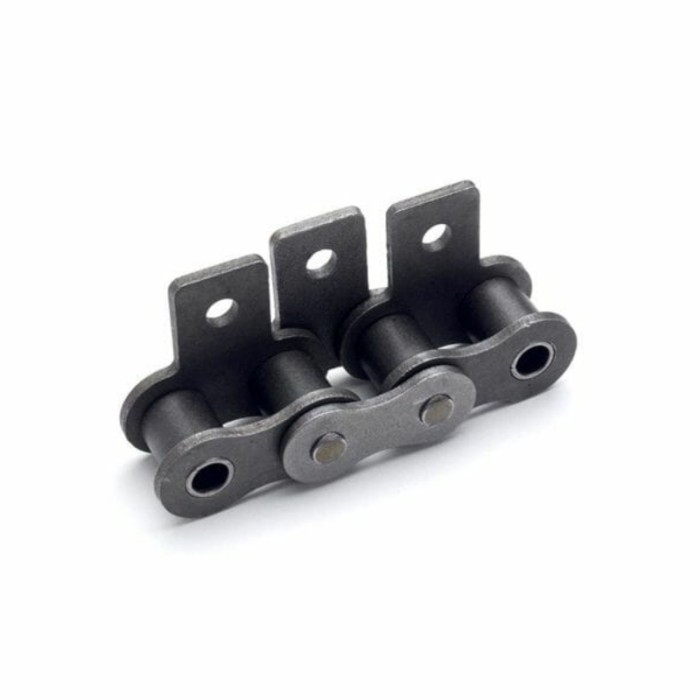

About 10B SA1 Attachment Roller Chain

10B SA1 attachment roller chain is a metric‑series short‑pitch conveyor chain manufactured to ISO 606 and DIN 8187 standards. It features single‑hole SA1 bent attachments, specially designed for material‑carrying and conveying tasks.

Made of high‑strength carbon steel, all components are heat‑treated to achieve excellent wear resistance, tensile strength and long service life. Precise machining ensures smooth meshing with matching 10B sprockets, stable and low‑noise operation.

This attachment roller chain is widely used in food machinery, packaging equipment, automated production lines and other light‑to‑medium‑load conveying systems. Custom attachment spacing, surface finishes and stainless‑steel versions are available on request.

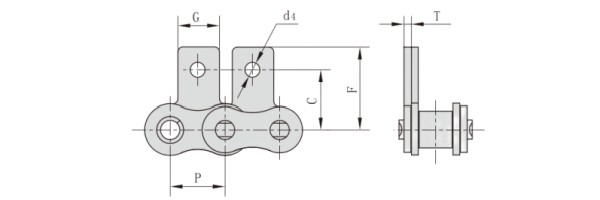

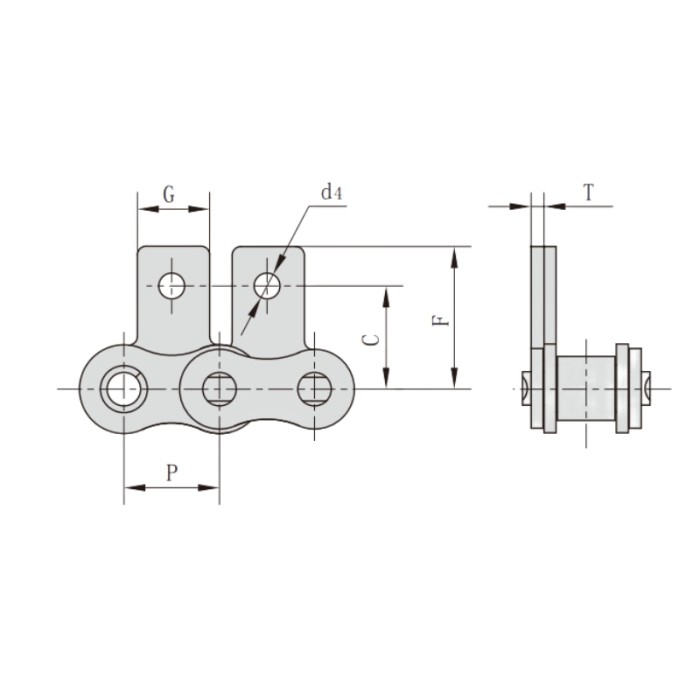

Metric 10B SA1 Attachment Roller Chain Dimension

Pitch (P): 15.875mm

Attachment Dimension (G): 14.3mm

Attachment Dimension (C): 16.5mm

Attachment Dimension (F): 22.95mm

Attachment Dimension (d4): 5.3mm

Link Plate Thickness (T): 1.7mm
