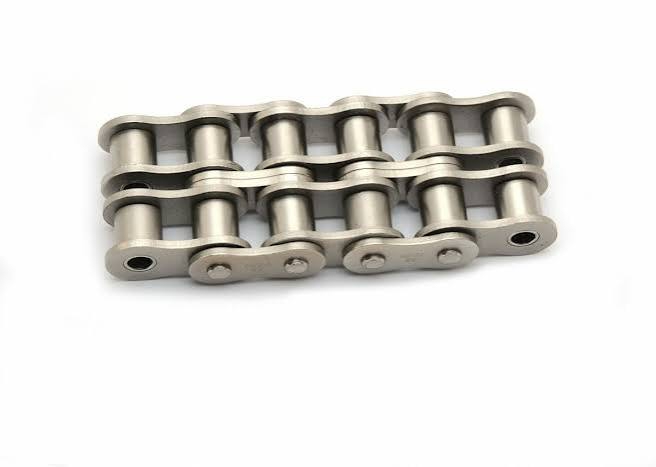

About 10BSS-2 Stainless Steel Roller Chain
10BSS‑2 duplex stainless‑steel roller chain is manufactured to ISO‑606 standard with a pitch of 15.875 mm. Made of premium 304 stainless steel, this double‑strand chain delivers higher tensile load‑capacity than single‑strand chains, together with excellent rust‑proof, corrosion‑resistant and oxidation‑resistant performance.
Precision‑machined components guarantee smooth transmission, low noise and outstanding wear resistance. It works reliably in wet, acidic, high‑temperature and other harsh environments. Widely applied to food‑processing equipment, chemical conveyors, marine machinery and automated production lines. Custom attachments and special material options can be supplied on request.

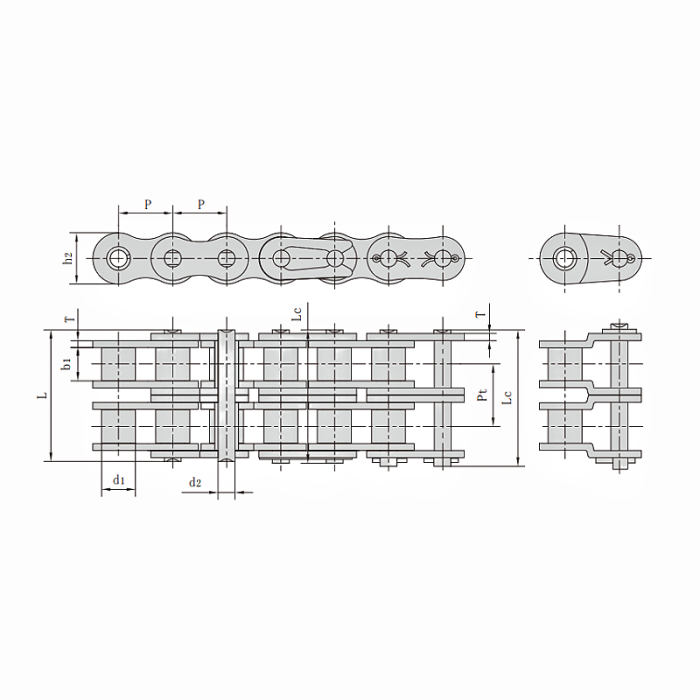

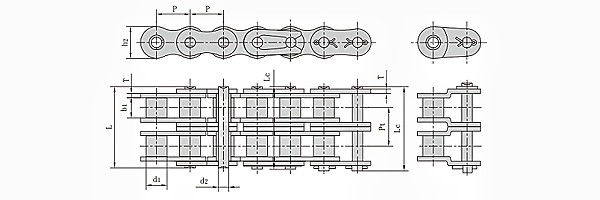

Metric 10BSS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 15.875mmRoller diameter : 10.16mmWidth between inner plates (b1): 9.65mmPin diameter (d2): 5.08mmPin length (L): 36.1mmPin length (Lc): 37.5mmInner Plate depth (h2): 14.7mmPlate thickness (T): 1.7mmTransverse pitch (Pt): 16.59mm
