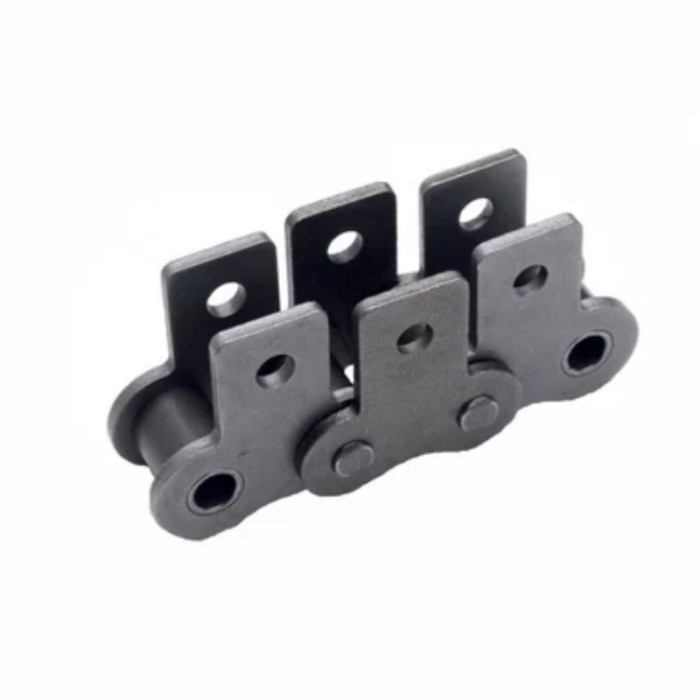

About 08B SK1 Attachment Roller Chain

08B SK1 attachment roller chain is manufactured strictly in accordance with ISO‑606 (DIN 8187) metric standard. It is fitted with standard SK1 one‑hole upright attachments on both sides, specially designed for conveyor and material‑handling systems.

Made of heat‑treated high‑strength carbon steel, the chain delivers excellent tensile strength, wear resistance and stable long‑time running performance. Precision‑machined SK1 attachments enable firm connection to fixtures and transported parts.

This conveyor chain is widely used in packaging equipment, food‑processing machinery, automated assembly lines and light‑duty conveying devices. Custom attachment spacing, galvanized surface treatment and stainless‑steel versions are available upon your request.

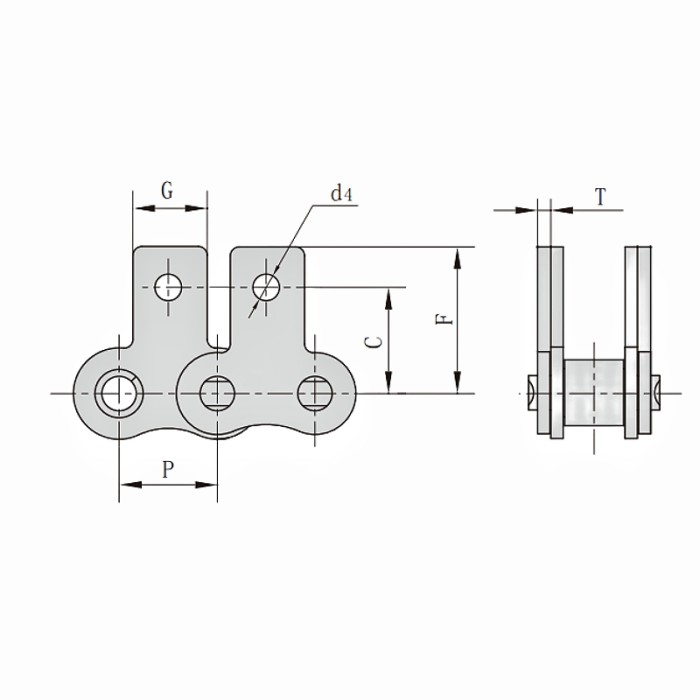

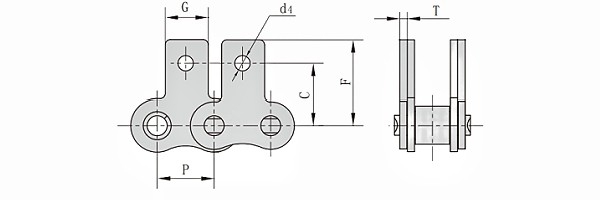

Metric 08B SK1 Attachment Roller Chain Dimension

Pitch (P): 12.7mm

Attachment Dimension (G): 5.9mm

Attachment Dimension (C): 13.35mm

Attachment Dimension (F): 18.9mm

Attachment Dimension (d4): 4.3mm

Link Plate Thickness (T): 1.6mm
