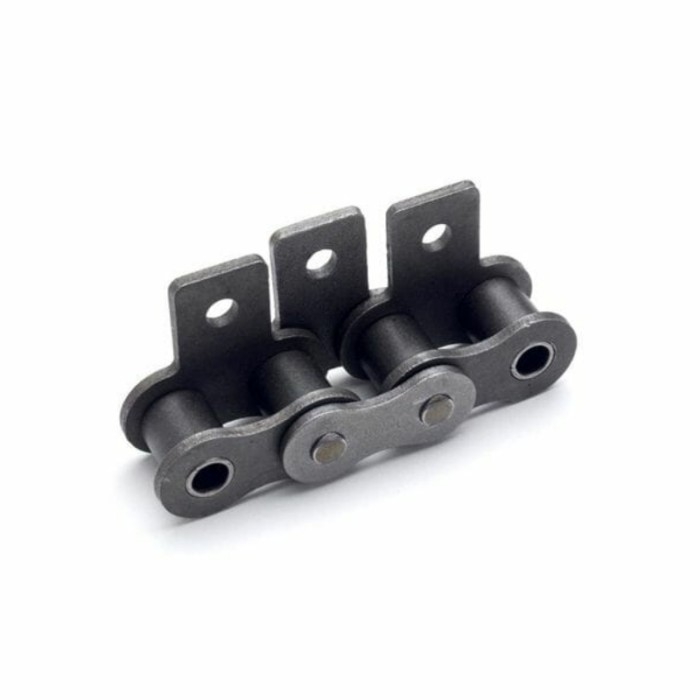

About 08B SA1 Attachment Roller Chain

Our 08B SA1 attachment roller chain is manufactured to ISO‑606 metric standard. It is fitted with SA1 extended attachments on selected links, ideal for conveying, lifting and material‑handling systems. Made of high‑quality carbon steel, the chain features excellent tensile strength, wear‑resistance and long‑term running stability.

Precision‑machined attachments ensure secure connection with fixtures. This chain is widely used in food machinery, packaging equipment, conveyor lines and automated production lines. Custom attachment spacing, surface treatment and stainless‑steel versions are available upon request.

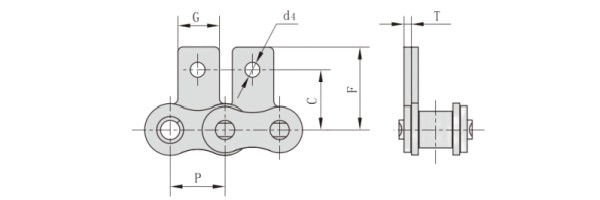

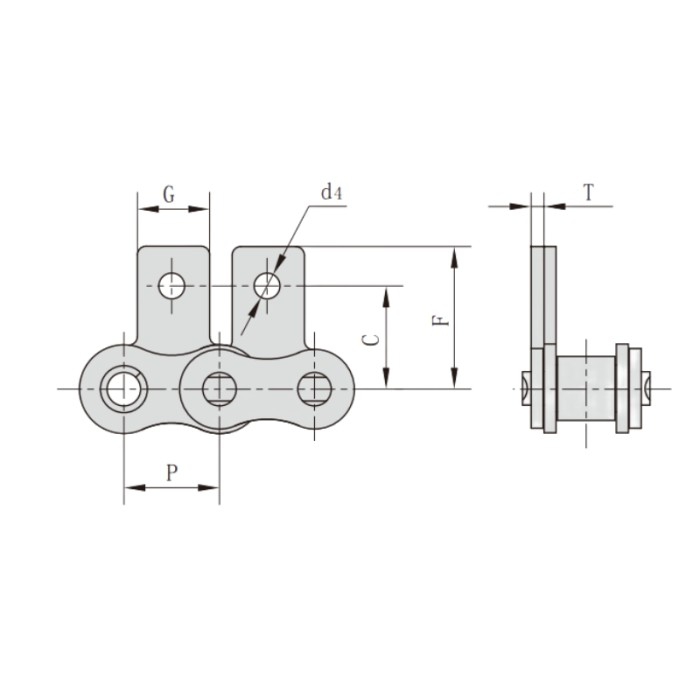

Metric 08B SA1 Attachment Roller Chain Dimension

Pitch (P): 12.7mm

Attachment Dimension (G): 5.9mm

Attachment Dimension (C): 13.35mm

Attachment Dimension (F): 18.9mm

Attachment Dimension (d4): 4.3mm

Link Plate Thickness (T): 1.6mm
