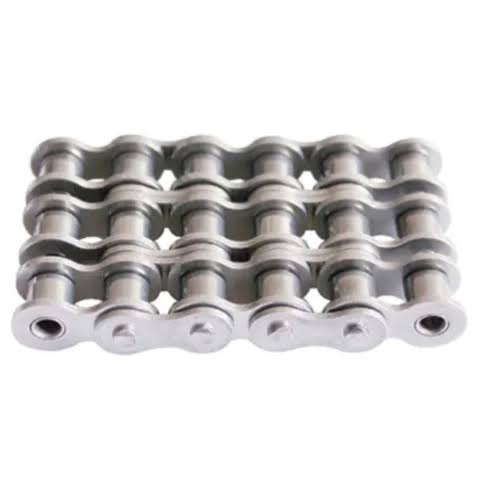

About 08BSS-3 Stainless Steel Roller Chain
08BSS‑3 is triple‑strand stainless steel roller chain complying with ISO 606 (DIN 8187) standard, pitch 12.7 mm. Made of high‑grade 304 stainless steel, it has excellent rust‑proof and corrosion‑resistant performance, suitable for humid, salt‑fog and slightly corrosive conditions.
Precision‑machined parts guarantee flexible operation, low noise and greatly improved load capacity versus single‑strand and double‑strand chains. It is widely adopted in food machinery, packaging, chemical and heavy‑duty conveyor systems. Fully interchangeable with standard 08B‑3 sprockets for easy installation.

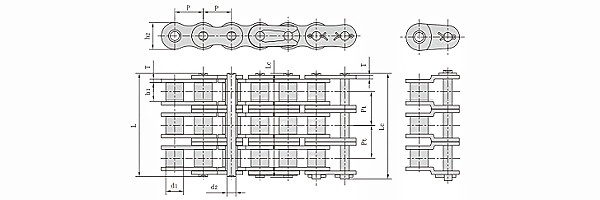

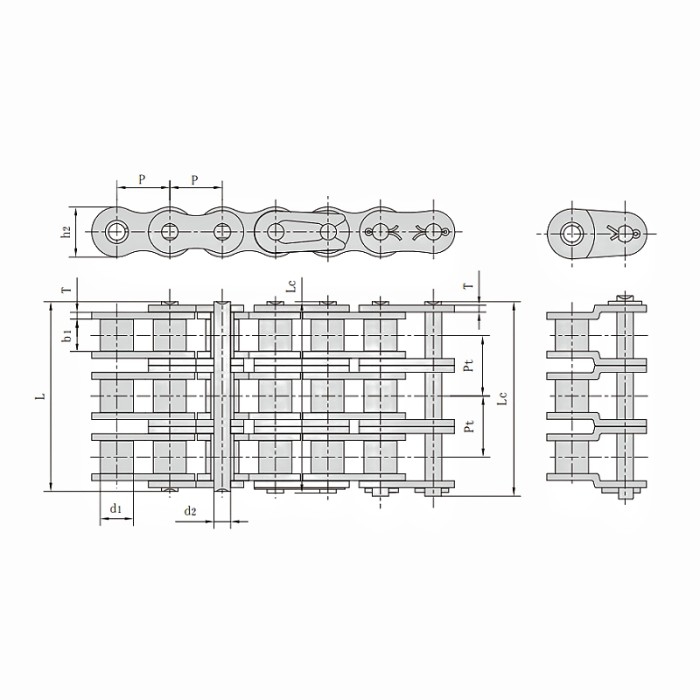

Metric 08BSS-3 Stainless Steel Roller Chain Dimension
Pitch (P): 12.7mmRoller diameter : 8.51mmWidth between inner plates (b1): 7.75mmPin diameter (d2): 4.45mmPin length (L): 45.1mmPin length (Lc): 46.1mmInner Plate depth (h2): 11.8mmPlate thickness (T): 1.6mmTransverse pitch (Pt): 13.92mm
