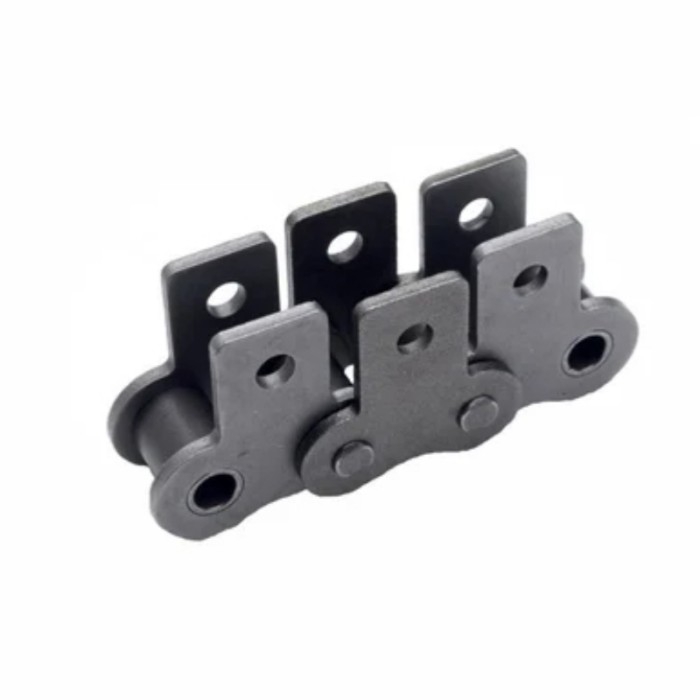

About 06B SK1 Attachment Roller Chain

06B SK1 attachment roller chain follows ISO606‑B standard with 9.525 mm pitch. It is fitted with upright single‑hole SK1 attachments for mounting fixtures, trays and conveying accessories conveniently. Made of high‑quality carbon steel with heat‑treatment, this chain delivers good tensile strength, low elongation and outstanding wear resistance. Precise manufacturing ensures smooth, stable running and perfect sprocket compatibility. Widely used in packaging, food, automation and light‑duty conveyor systems. Custom attachment spacing and surface treatments are available upon request

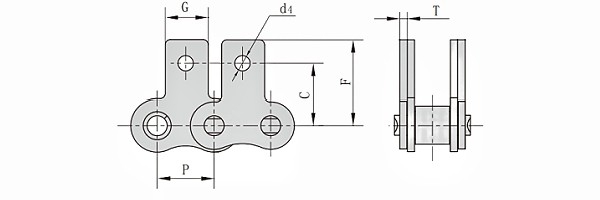

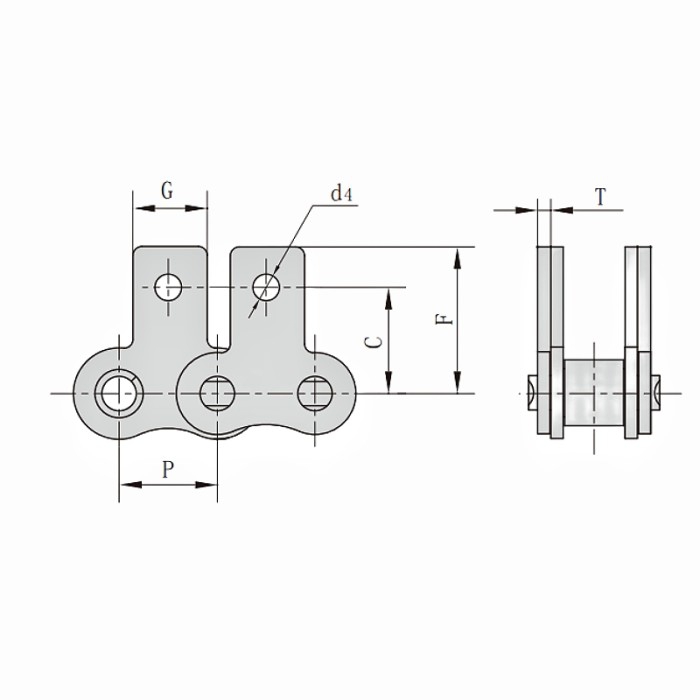

Metric 06B SK1 Attachment Roller Chain Dimension

Pitch (P): 9.525mm

Attachment Dimension (G): 8mm

Attachment Dimension (C): 9.52mm

Attachment Dimension (F): 13.5mm

Attachment Dimension (d4): 3.5mm

Link Plate Thickness (T): 1.3mm
