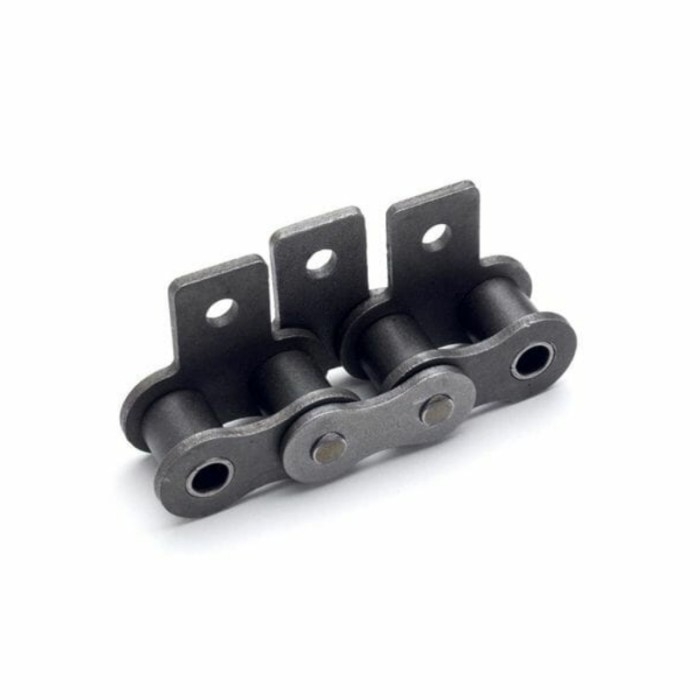

About 06B SA1 Attachment Roller Chain

06B SA1 attachment roller chain follows ISO 606‑B metric standard, pitch 9.525mm. The SA1 means one‑hole straight attachment on one side of the link plate, convenient for mounting fixtures, pushers and carrying parts.

Made of heat‑treated high‑carbon steel, it delivers stable tensile strength, low wear and smooth running. This attachment chain is widely used for small‑size conveying, automated machinery and light‑duty material‑pushing equipment. Custom surface treatment and attachment spacing are available on request.

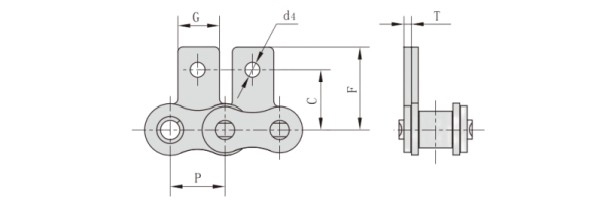

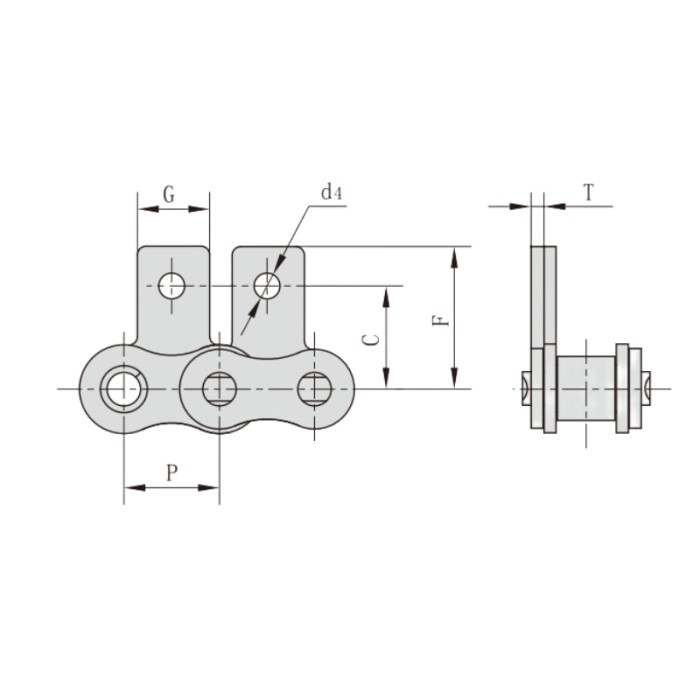

Metric 06B SA1 Attachment Roller Chain Dimension

Pitch (P): 9.525mm

Attachment Dimension (G): 8mm

Attachment Dimension (C): 9.52mm

Attachment Dimension (F): 13.5mm

Attachment Dimension (d4): 3.5mm

Link Plate Thickness (T): 1.3mm
