Metric 06BSS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 06BSS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

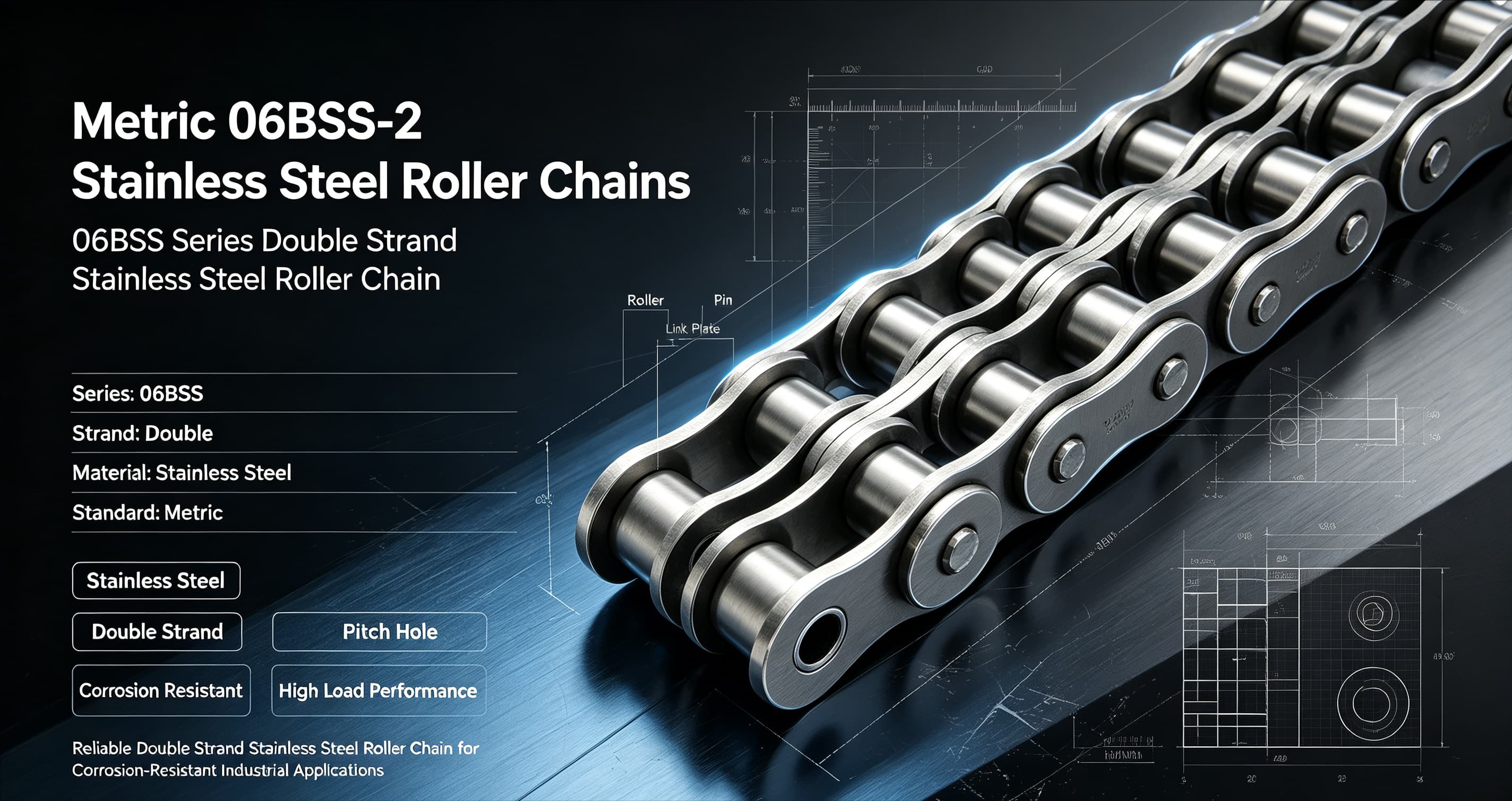

    裁剪旋转 (4)_compressed.jpeg

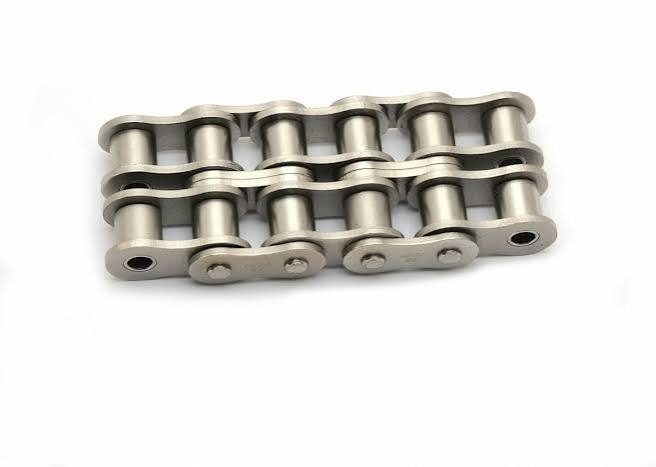

    About 06BSS-2 Stainless Steel Roller Chain

    06BSS‑2 is a double‑strand stainless steel roller chain complying with BS standards, pitch 9.525mm. Made of premium 304 stainless steel, it features outstanding rust and corrosion‑proof performance.
    Precision‑machined components ensure smooth operation, low noise and stable power transmission. It works reliably under humid, wet and mildly corrosive conditions.
    Widely used in food machinery, pharmaceutical, packaging, marine and light‑chemical conveying systems. Custom cut‑to‑length chains, connecting links and offset links are offered to meet your installation demands

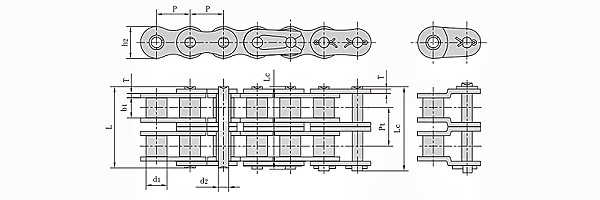

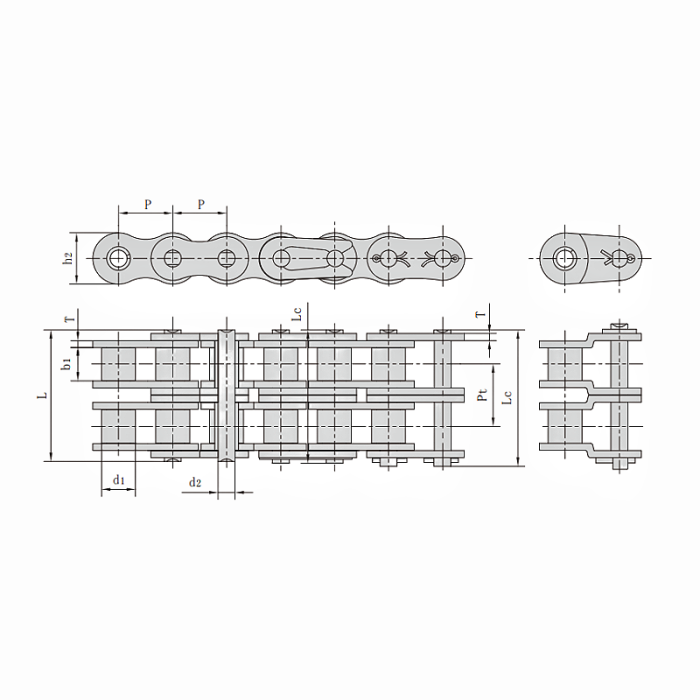

    Metric 06BSS-2 Stainless Steel Roller Chain Dimension




  • Pitch (P): 9.525mm
  • Roller diameter : 6.35mm
  • Width between inner plates (b1): 5.72mm
  • Pin diameter (d2): 3.28mm
  • Pin length (L): 23.4mm
  • Pin length (Lc): 24.4mm
  • Inner Plate depth (h2): 8.2mm
  • Plate thickness (T): 1.3mm
  • Transverse pitch (Pt): 10.24mm
