Metric 05BSS-2 Stainless Steel Roller Chains

  • Categories: Double Strand Roller Chains
  • Brand: HXST-Drive
  • Model: Metric 05BSS-2 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (2)_compressed.jpeg

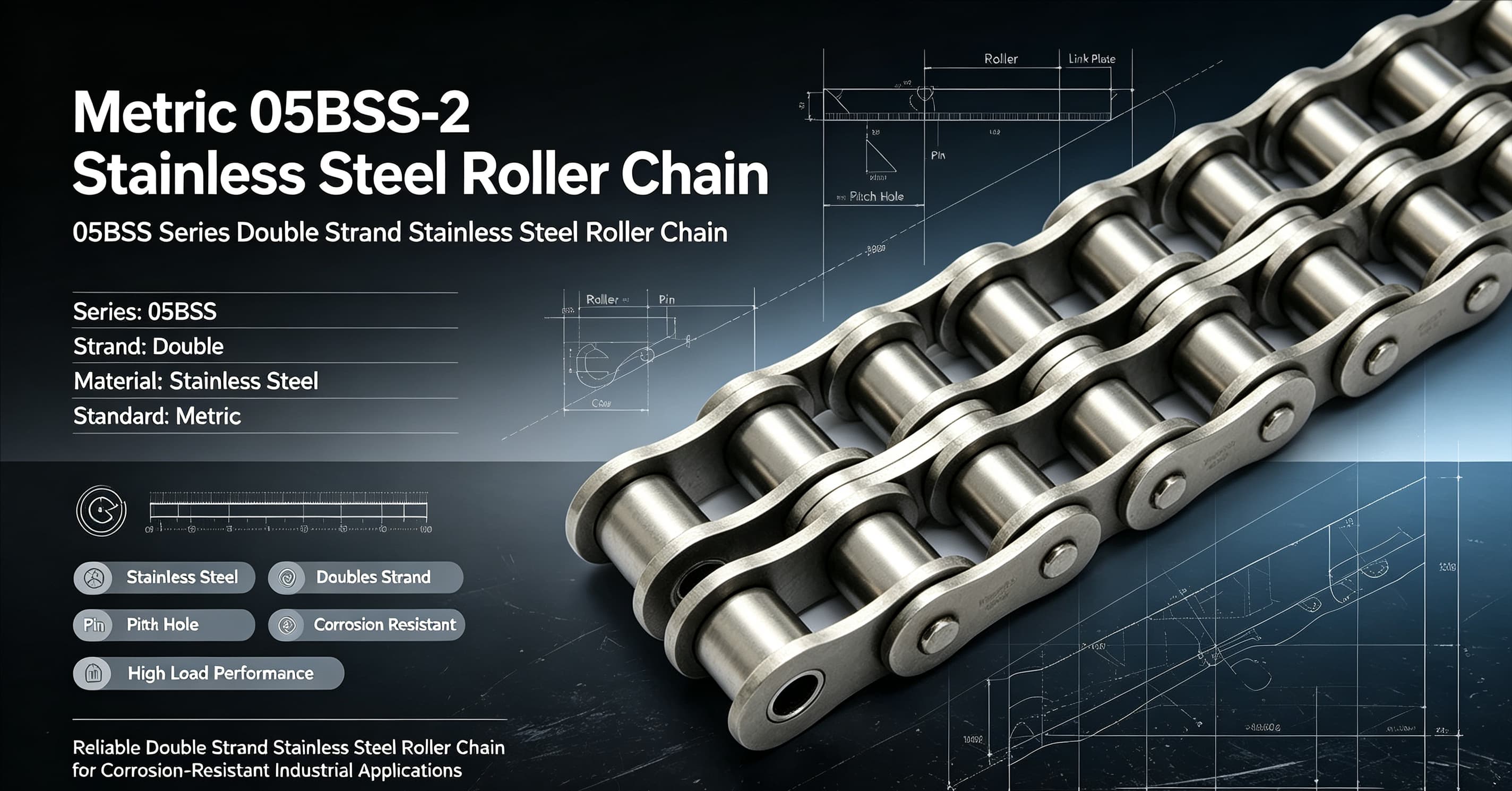

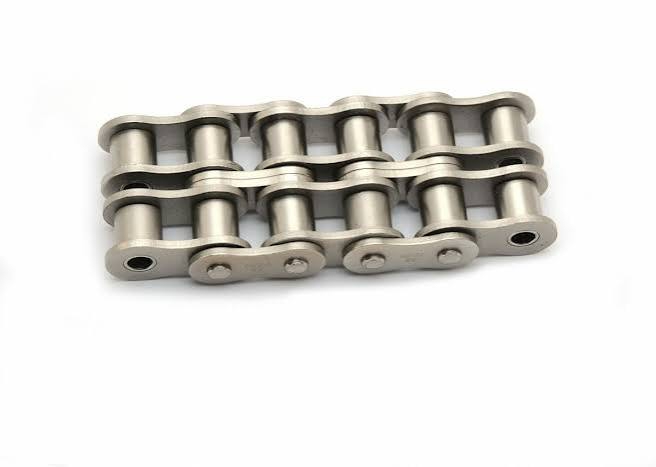

    About 05BSS-2 Stainless Steel Roller Chain

    05BSS‑2 double‑strand stainless steel roller chain conforms to ISO metric standards. Constructed from premium stainless steel, it delivers superior anti‑corrosion and rust‑resistant properties, suitable for damp, chemical‑exposed working environments. Precision‑processed components guarantee stable tensile strength, smooth transmission and low‑noise operation. The two‑row design offers higher load capacity than single‑strand chains. Widely used in food machinery, pharmaceutical equipment, marine and chemical conveyors. Custom attachments and varied surface treatments are available to satisfy your unique demands.

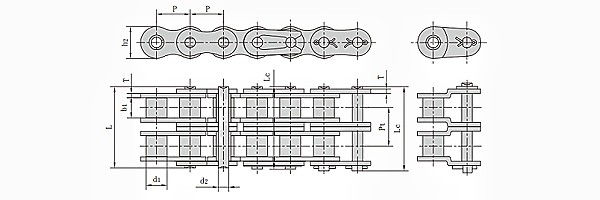

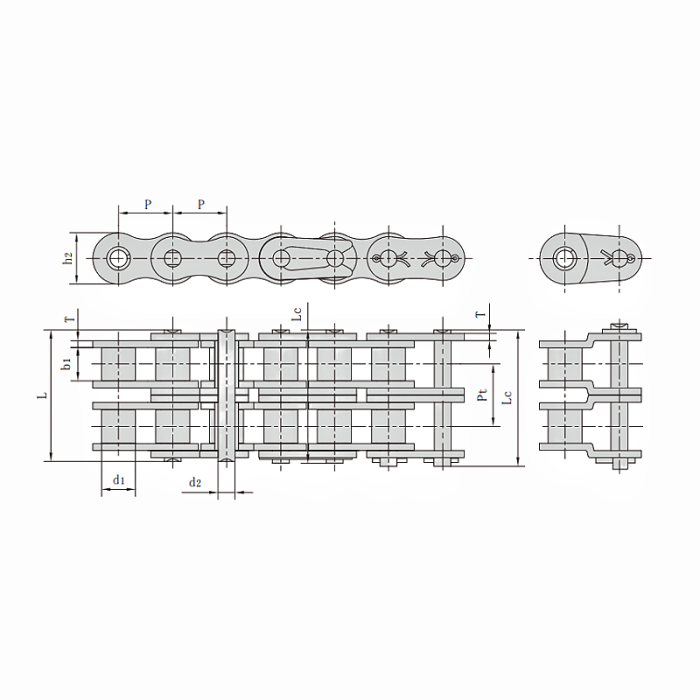

    Metric 05BSS-2 Stainless Steel Roller Chain Dimension





  • Pitch (P): 8mm
  • Roller diameter : 5mm
  • Width between inner plates (b1): 3mm
  • Pin diameter (d2): 2.31mm
  • Pin length (L): 13.9mm
  • Pin length (Lc): 14.5mm
  • Inner Plate depth (h2): 7.1mm
  • Plate thickness (T): 0.8mm
  • Transverse pitch (Pt): 5.64mm
