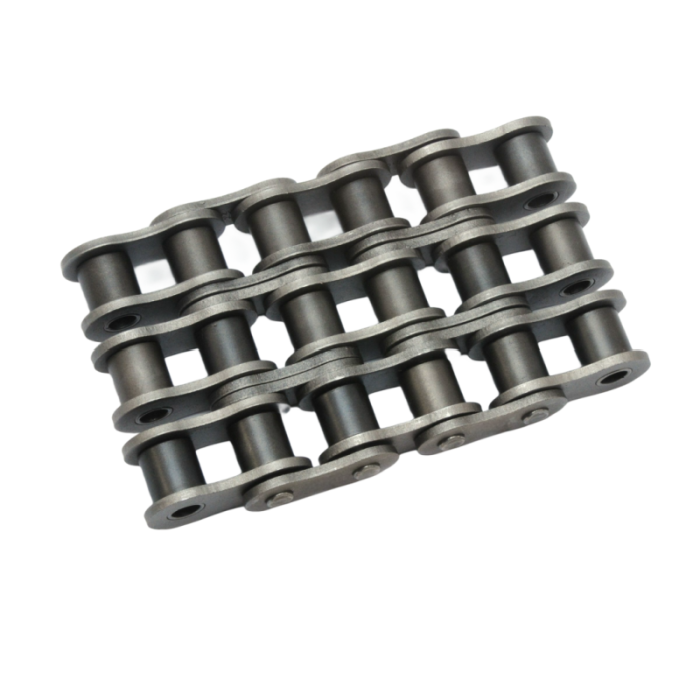

About #240H-3 Heavy Duty Roller Chain
ANSI‑standard triple‑strand heavy‑duty roller chain is manufactured from high‑grade alloy steel and treated with precise heat‑treatment. Reinforced thicker link plates greatly boost breaking strength, wear resistance and impact resistance. Its three‑row structure provides outstanding load‑bearing capacity for harsh, high‑torque working environments. Ideal for mining equipment, heavy‑duty conveyors, construction machinery and large‑scale industrial drives. Various surface finishes are optional, and customized solutions are offered to satisfy diverse application demands.

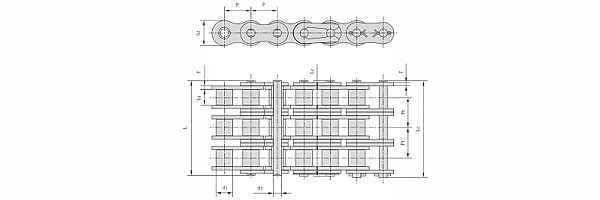

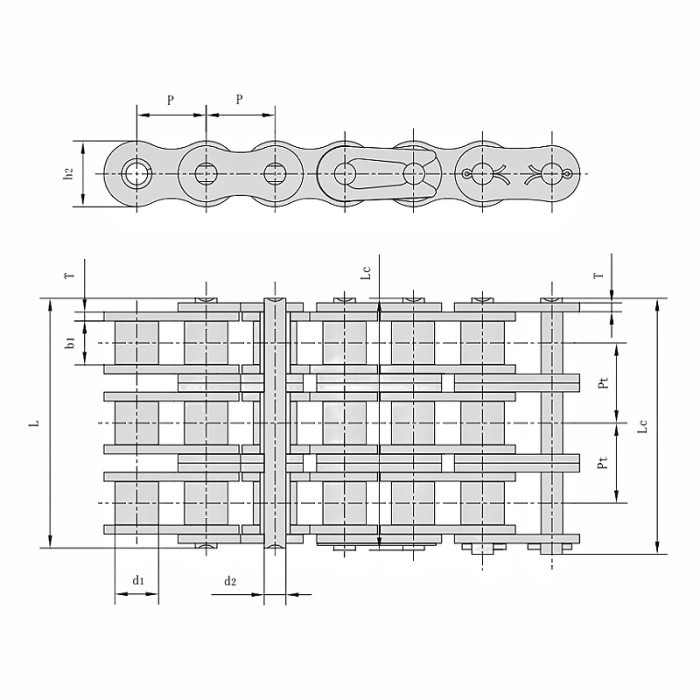

ANSI #240H-3 Heavy Duty Roller Chains Dimension
Pitch (P): 76.2mm
Roller diameter (d1): 47.63mm
Width between inner plates (b1): 47.35mm
Pin diameter (d2): 23.81mm
Pin length (L): 313.8mm
Pin length (Lc): 324.3mm
Inner plate depth (h2): 72.3mm
Plate thickness (T): 12.7mm
Transverse pitch (Pt）: 101.22mm
