ANSI #240H-2 Heavy Duty Roller Chain

  • Categories: Double Heavy Duty Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 240H-2 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

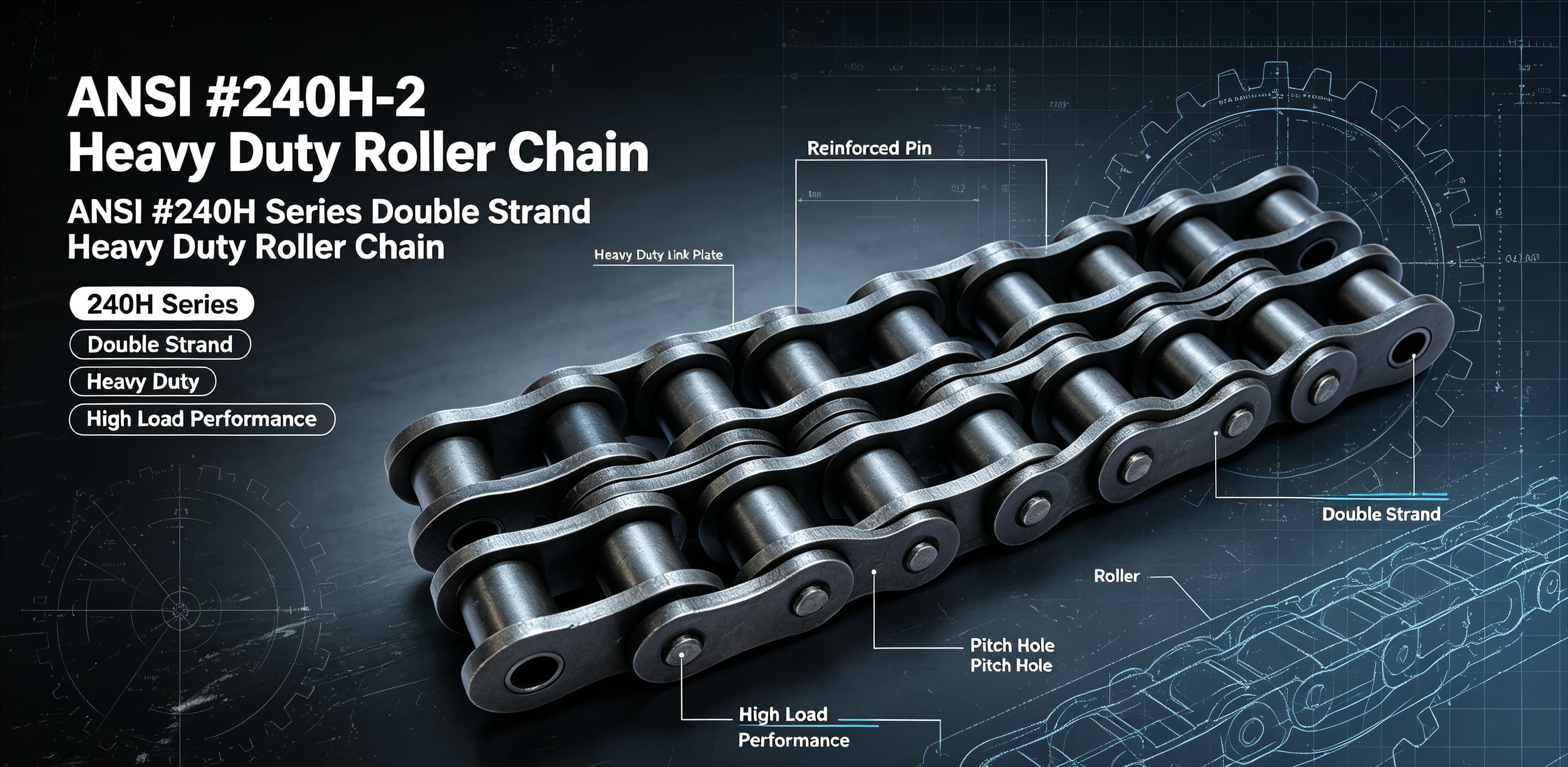

    裁剪旋转 (3)_compressed.jpeg

    About #240H-2 Heavy Duty Roller Chain

    #240H‑2 double‑strand heavy‑duty roller chain follows ANSI specifications, equipped with thicker side plates for higher load capacity. It is produced from high‑quality alloy steel and undergoes strict heat‑treatment, delivering great tensile strength, impact resistance and wear resistance.

    Precision manufacturing ensures flexible roller movement, effectively cutting down friction, vibration and noise under continuous heavy‑duty operation. Suitable for heavy conveyors, mining, construction and large industrial transmission equipment. Various anti‑corrosion surface treatments are optional. Custom lengths and attachments are available to meet your project requirements.

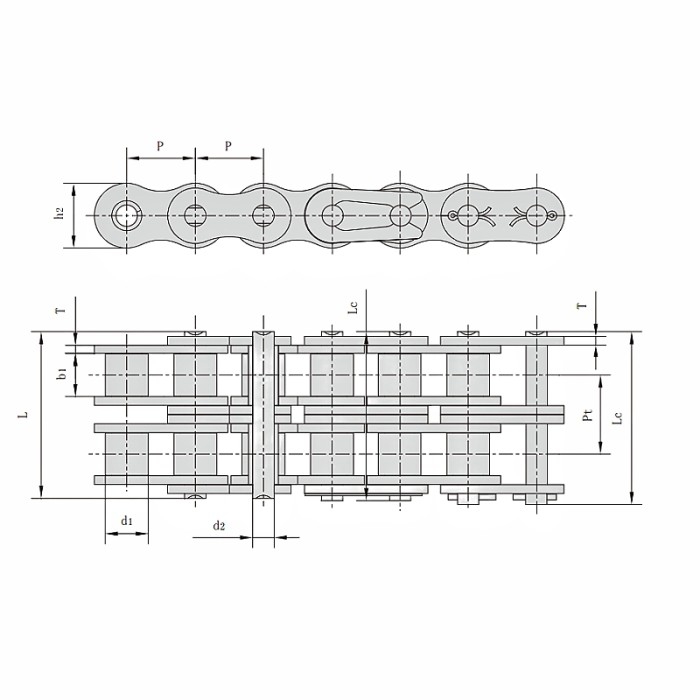

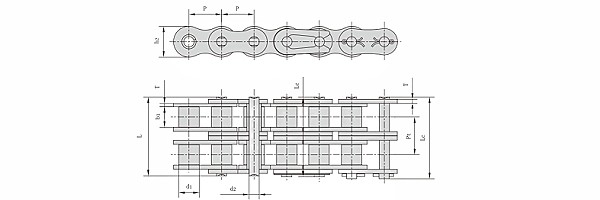

    ANSI #240H-2 Heavy Duty Roller Chains  Dimension





    Pitch (P): 76.2mm

  • Roller diameter (d1): 47.63mm

  • Width between inner plates (b1): 47.35mm

  • Pin diameter (d2): 23.81mm

  • Pin length (L): 212.6mm

  • Pin length (Lc): 223.1mm

  • Inner plate depth (h2): 72.3mm

  • Plate thickness (T): 12.7mm

  • Transverse pitch (Pt): 101.22mm
