ANSI #240-2 Roller Chain

  • Categories: Double Strand Roller Chain
  • Brand: HXST-Drive
  • Model: ANSI 240-2 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

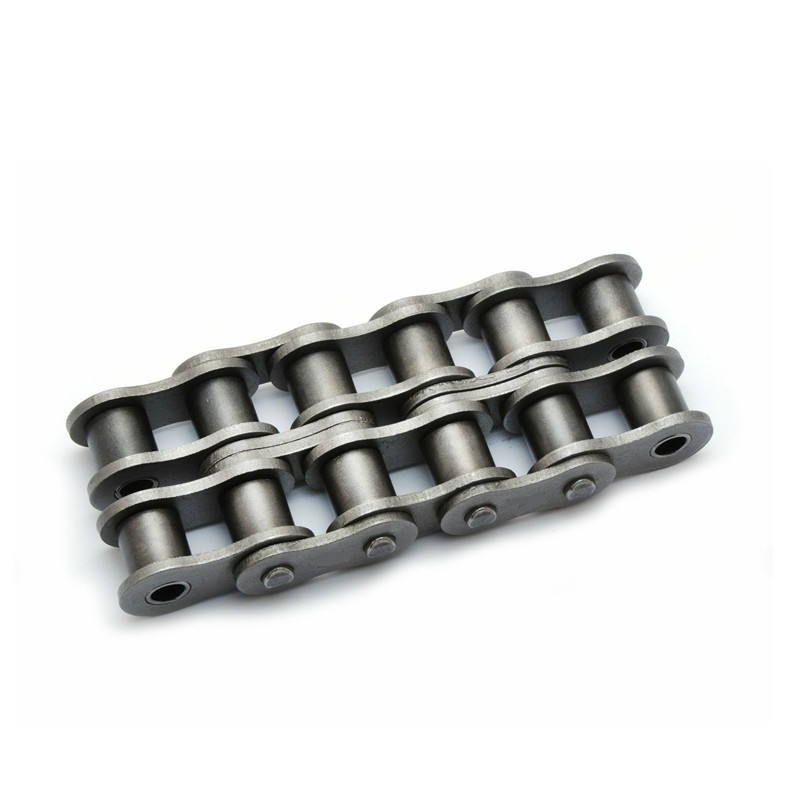

    About #240-2 Roller Chain

    #240‑2 double‑strand roller chain is manufactured in full accordance with ANSI standards for reliable dimensional accuracy and great interchangeability. Constructed from premium alloy steel with professional heat‑treatment, the chain delivers high tensile strength, outstanding wear resistance and long service life.

    Its optimized structure ensures flexible roller rotation, lowering friction, vibration and operating noise even under continuous heavy‑load operation. Ideal for mining, construction, agricultural machinery and heavy‑duty conveyor systems. Various surface treatments are optional for corrosion protection. Custom cut‑to‑length and matching attachments are available upon request.

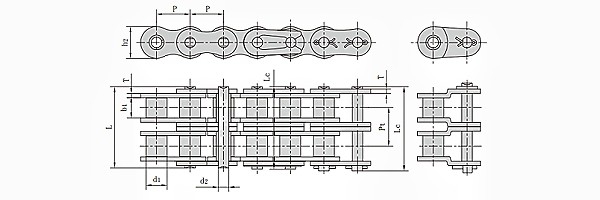

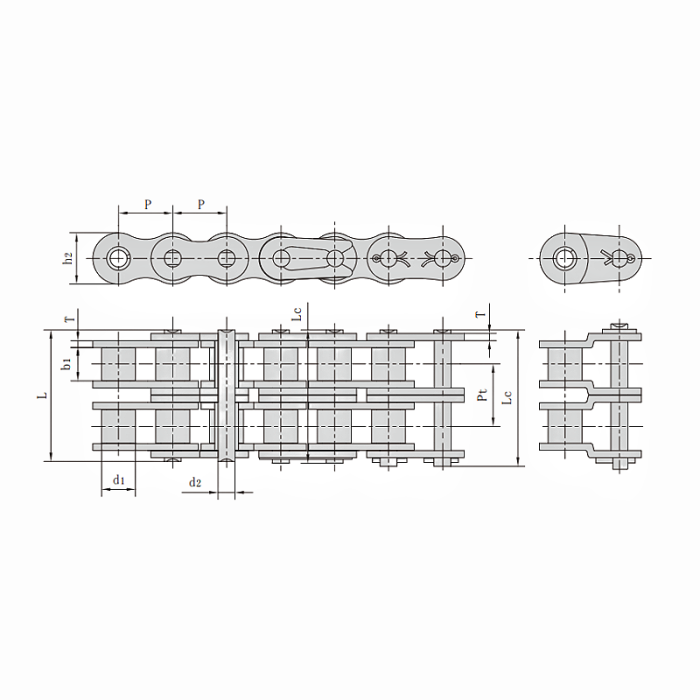

    ANSI #240-2 Roller Chains  Dimension





    Pitch (P): 76.2mm

    Roller diameter (d1): 47.63mm

    Width between inner plates (b1): 47.35mm


  • Pin diameter (d2): 23.81mm

  • Pin length (L): 183.4mm

  • Pin length (Lc): 190.8mm

  • Inner plate depth (h2): 72.39mm

  • Plate thickness (T): 9.5mm

  • Transverse pitch (Pt): 87.83mm
