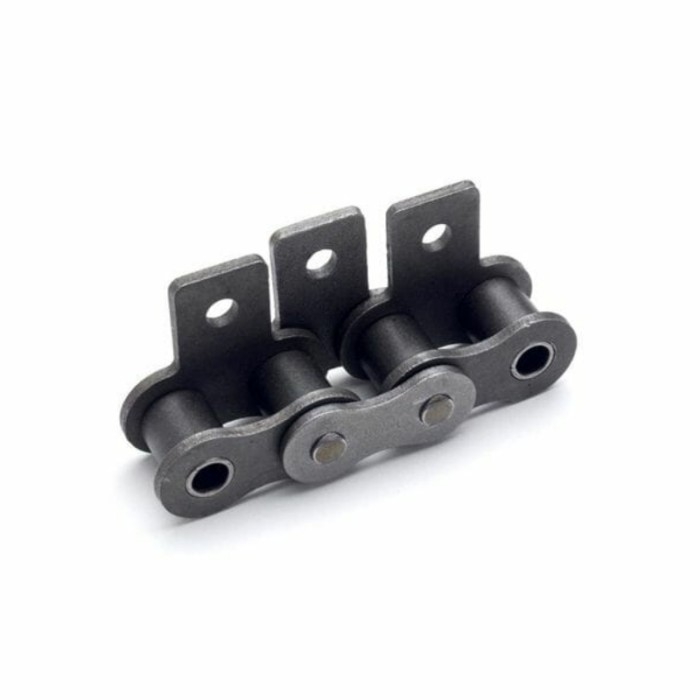

ANSI #200 Roller Chain With SA1 Attachment

  • Categories: Roller Chain With SA1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 200-SA1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (4)_compressed.jpeg

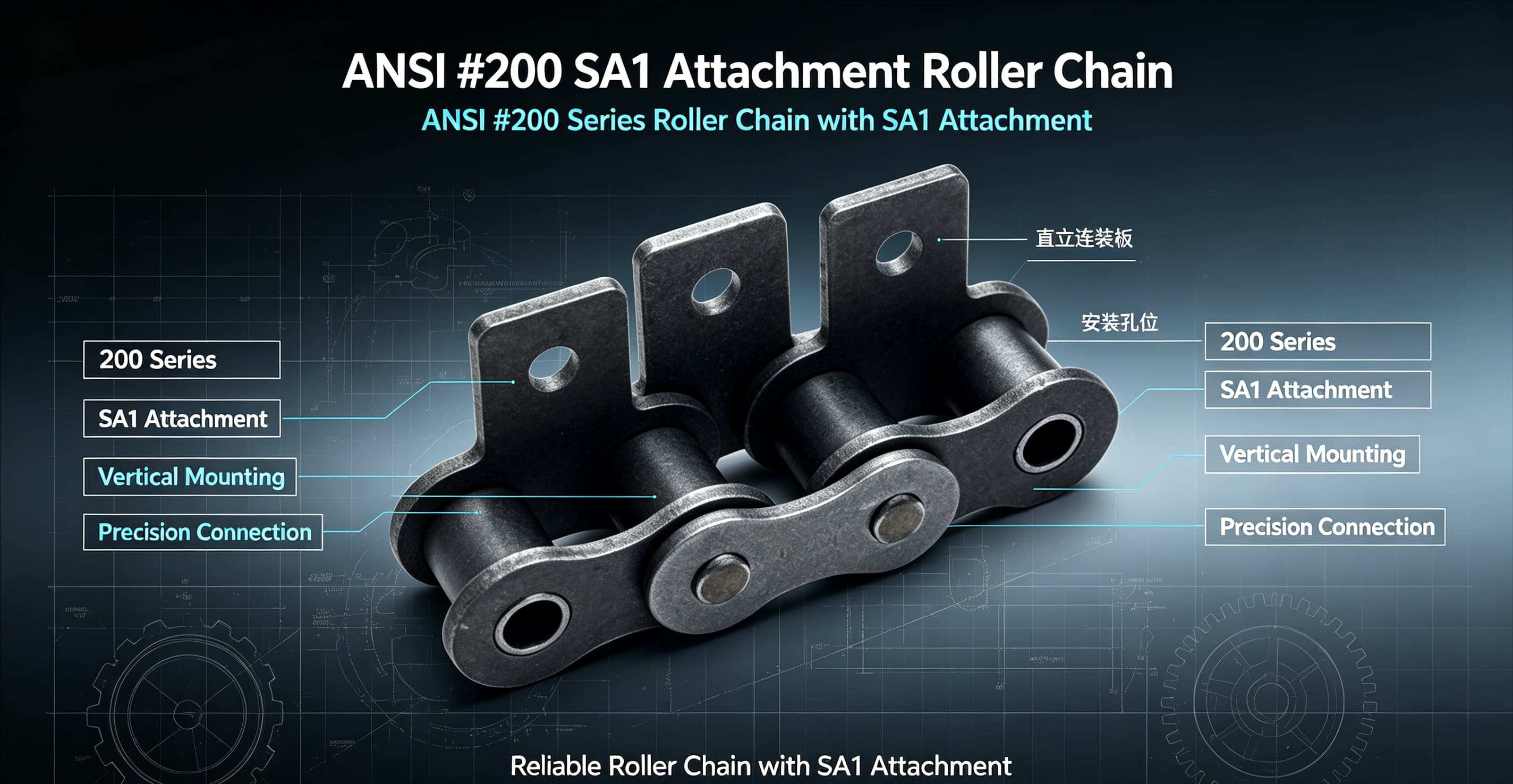

    About #200 SA1 Attachment Roller Chain

    #200 SA1 attachment roller chain complies with ANSI industrial standards, crafted from heat-treated high-tensile alloy steel for exceptional durability and wear resistance.


    Specially formed SA1 attachments are firmly integrated on side plates to fix transport fixtures steadily. Precision rollers reduce friction and running noise, supporting stable continuous conveying. Cottered links allow quick assembly and routine maintenance.


    This heavy-duty conveyor chain fits grain transport, mining conveyors and large industrial handling equipment. Custom galvanized coating is available for moisture and rust resistance. Strict quality testing ensures consistent performance under long-term heavy-load operation.

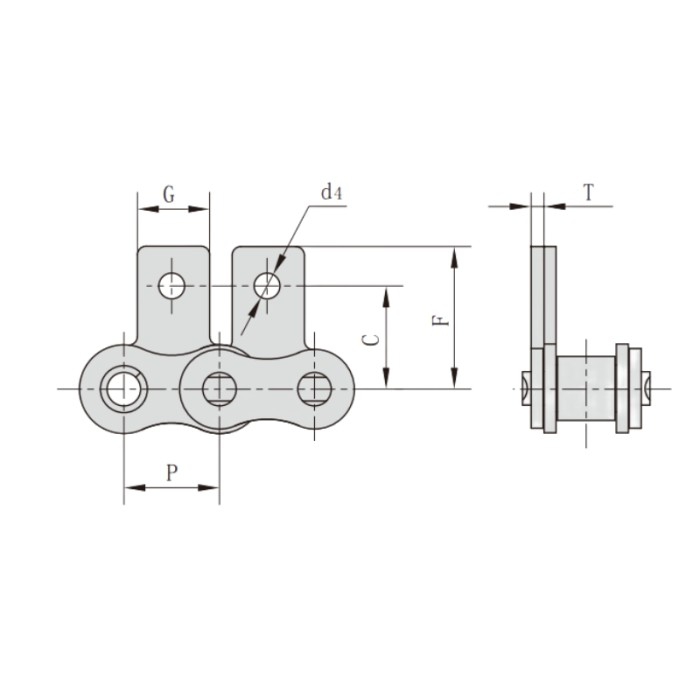

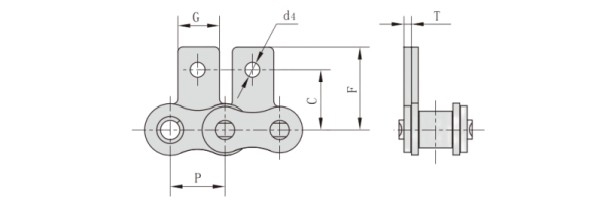

    ANSI #200 SA1 Attachment Roller Chain Dimension


  • Pitch (P): 63.5mm
  • Attachment Dimension (G): 50.8mm
  • Attachment Dimension (C): 63.5mm
  • Attachment Dimension (F): 88.9mm
  • Attachment Dimension (d4): 16.3mm
  • Link Plate Thickness (T): 8mm
