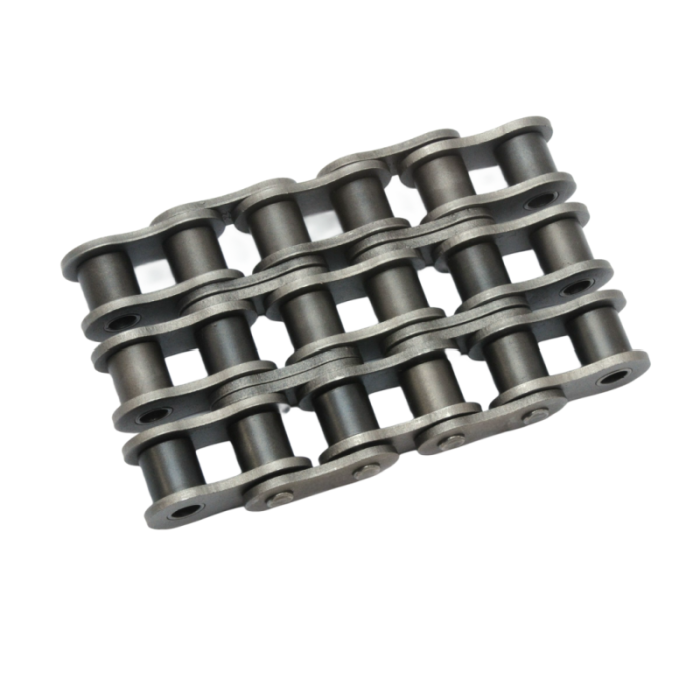

This triple-strand #200H roller chain meets ANSI B29.1 specifications, featuring thickened reinforced link plates for extreme heavy-load and high-torque transmission scenarios. All pins, bushings and rollers undergo professional heat treatment, delivering outstanding tensile strength, shock resistance and long wear life.
Precision machining effectively restricts chain elongation during prolonged heavy-duty operation, ensuring smooth engagement with matched triple #200H sprockets. It is ideal for large mining machinery, heavy bulk conveyors and heavy engineering equipment. Custom lengths, attachments and stainless steel alternatives are available upon inquiry.

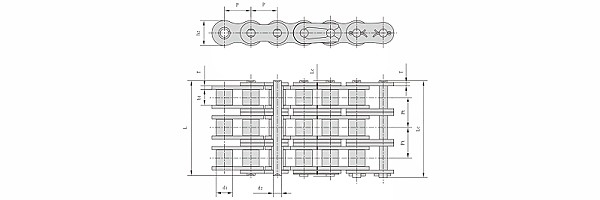

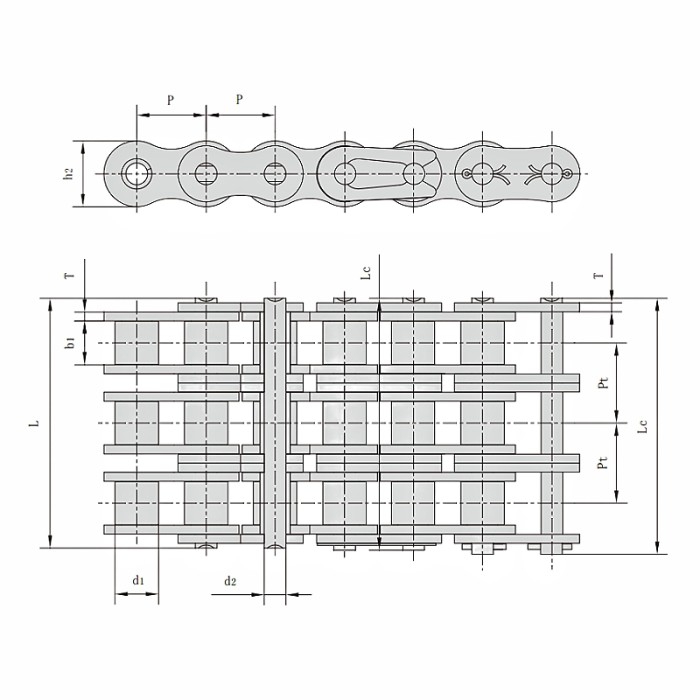

ANSI #200H-3 Heavy Duty Roller Chains Dimension
Pitch (P): 63.5mm
Roller diameter (d1): 39.68mm
Width between inner plates (b1): 37.85mm
Pin diameter (d2): 19.85mm
Pin length (L): 243.2mm
Pin length (Lc): 250.1mm
Inner plate depth (h2): 60mm
Plate thickness (T): 9.5mm
Transverse pitch (Pt）: 78.31mm
