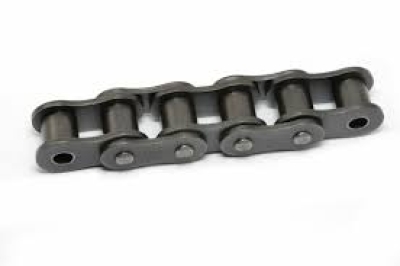

About #200-1 Roller Chain
#200-1 single-strand roller chain follows ANSI standard, crafted from high-strength carbon steel with precision heat treatment. It delivers superior tensile strength, outstanding wear resistance and stable transmission under heavy loads.
Each component undergoes strict machining and surface hardening, reducing friction and extending service life.
Compact yet robust structure fits large industrial machinery, conveyors and heavy-duty drive equipment.
Custom options include stainless steel, heavy-duty H-type version and cottered connections. Strict quality inspection ensures consistent performance, low elongation and reliable long-time operation. Ideal for high-load, low-speed industrial transmission scenarios.
ANSI #200-1 Roller Chains Dimension
Pitch (p): 63.5mm
Roller Diameter (d1): 39.68mm
Width between inner plates (b1): 37.85mm
Pin diameter (d2): 19.85mm
Pin length (L): 80.3mm
Pin length (Lc): 87.2mm
Inner plate depth (h2): 60mm
Plate thickness (T): 8mm
