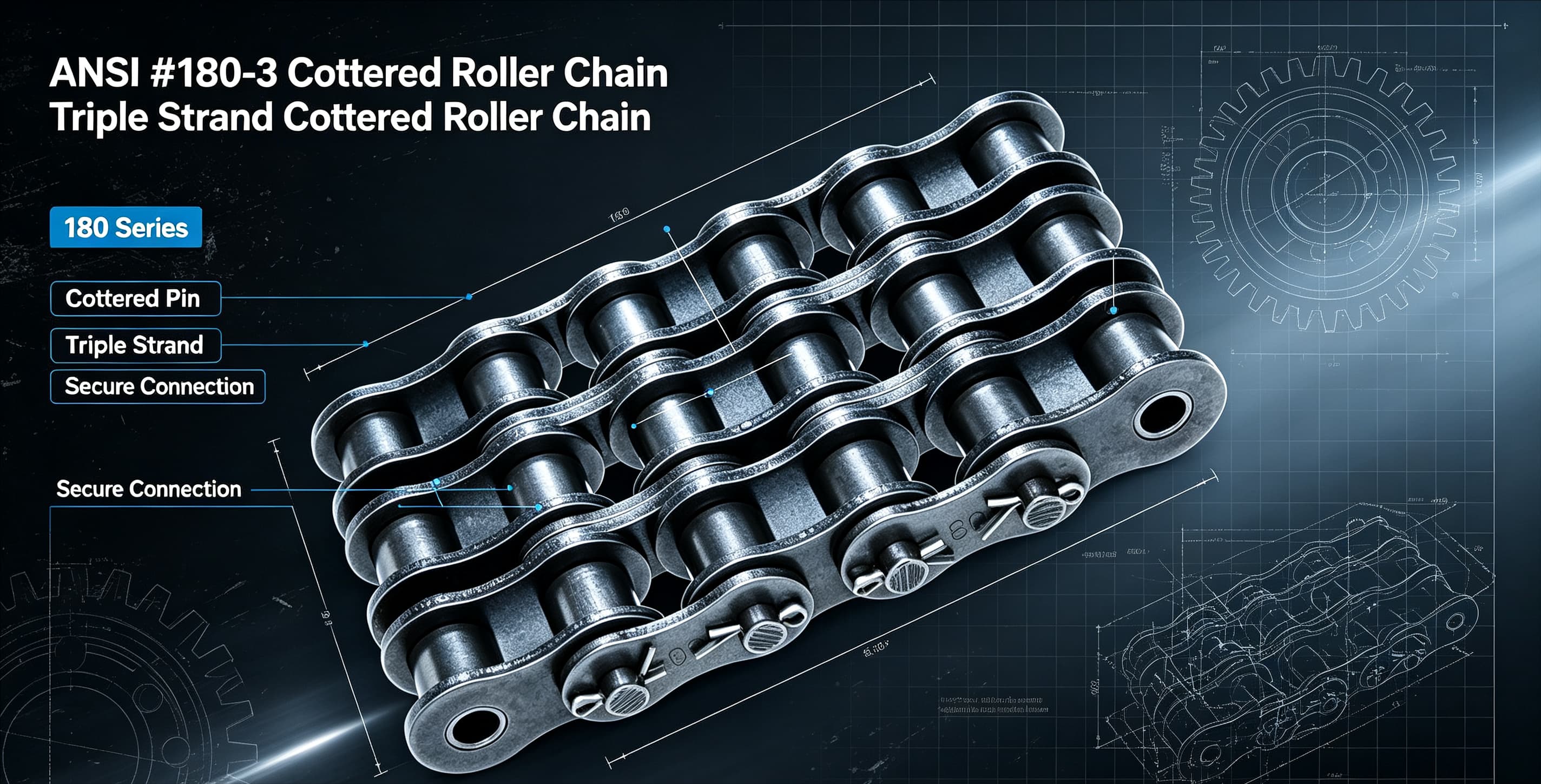

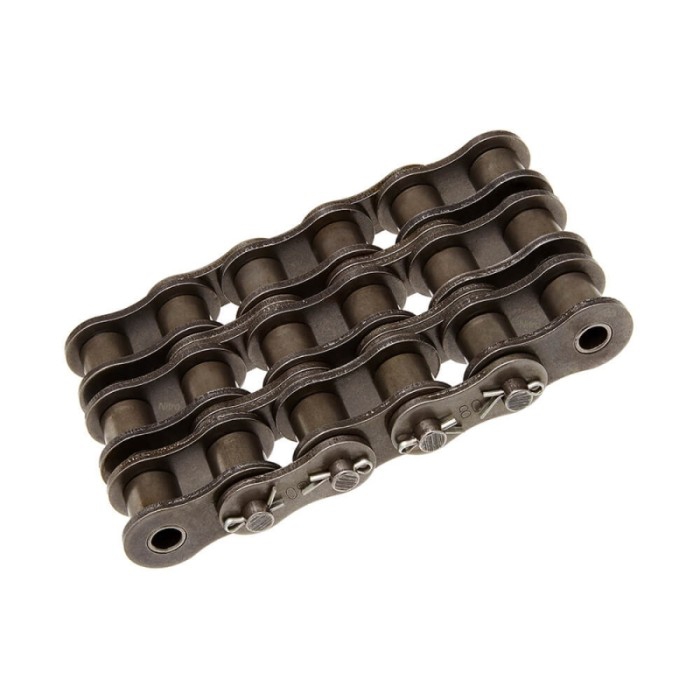

About #180-3 Cottered Roller Chain
this triple-strand heavy-duty roller chain adopts a detachable cotter pin design for easy on-site disassembly and length adjustment. With a 57.15mm pitch triplex structure, it delivers triple load capacity versus simplex chains and outstanding shock resistance.
All components are precision heat-treated alloy steel with black oxide anti-rust coating, featuring high tensile strength and long wear life. Unlike riveted chains, cottered pins eliminate grinding work during maintenance.
Ideal for low-speed high-torque equipment: mining conveyors, metallurgical rollers, cement mixers and heavy lifting machinery. Matching cottered master links, offset links and customized hardened triplex sprockets are available. Stainless steel and reinforced 180H-3 versions can be ordered for corrosive or overload conditions.

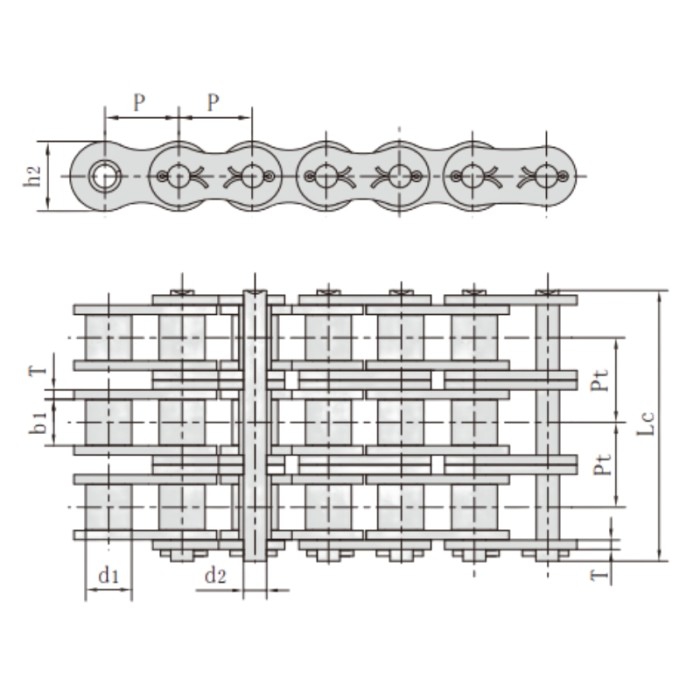

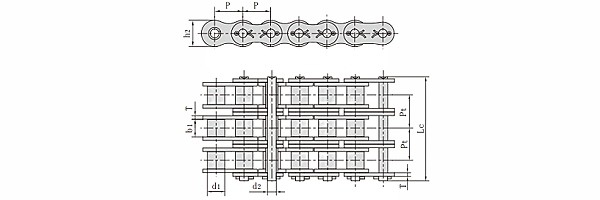

ANSI #180-3 Cottered Roller Chains Dimension
Pitch (P): 57.15mm
Roller diameter (d1): 35.71mm
Width between inner plates (b1): 35.48mm
Pin diameter (d2): 17.46mm
Pin length (Lc): 210.2mm
Inner plate depth (h2): 53.6mm
Plate thickness (T): 7.2mm
Transverse pitch (Pt）: 65.84mm
