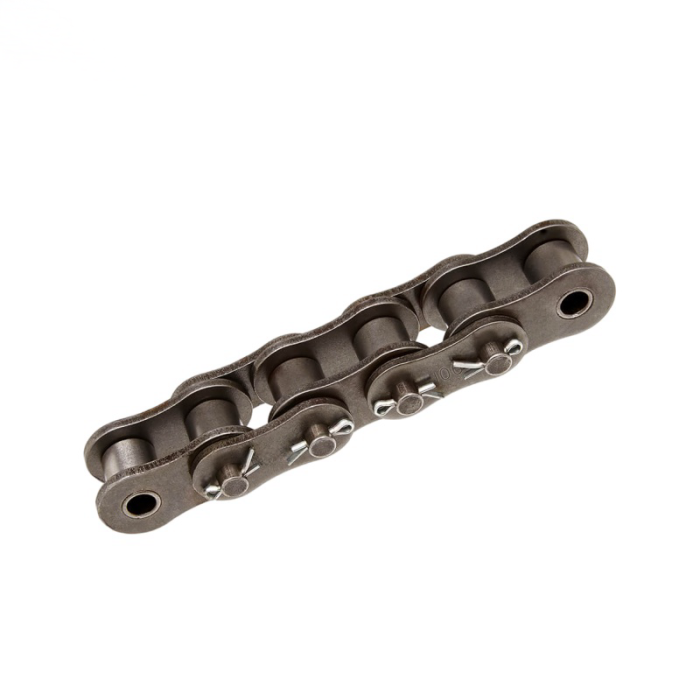

#180-1 single-strand cottered roller chain complies fully with ANSI standards. Equipped with cotter pin connections for quick disassembly and easy on-site maintenance, it simplifies installation and replacement on production lines.
All core components undergo strict heat treatment to boost tensile strength and wear resistance. Precision-machined rollers and pins reduce friction and running noise, delivering stable transmission under moderate to heavy loads.
Crafted from premium carbon steel, this chain suits large conveyors, agricultural machinery and general industrial drive systems. Optional black oxide anti-rust finish is offered. Featuring reliable connection structure, long service life and low downtime, it is a cost-effective transmission choice for various industrial applications.

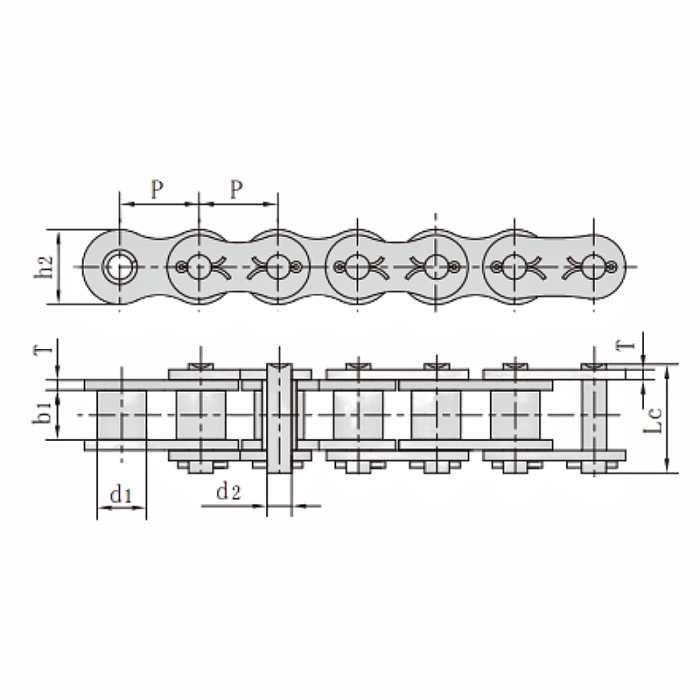

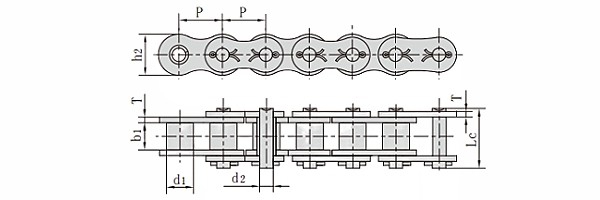

ANSI #180-1 Cottered Roller Chains Dimension
Pitch (P): 57.15mm
Roller diameter (d1): 35.71mm
Width between inner plates (b1): 35.48mm
Pin diameter (d2): 17.46mm
Pin length (Lc): 78.6mm
Inner plate depth (h2): 53.6mm
Plate thickness (T) : 7.2mm
