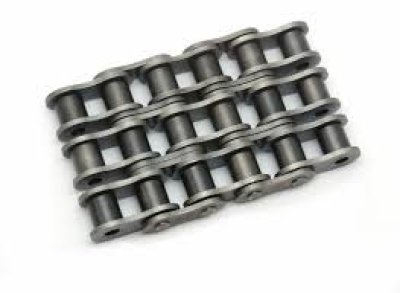

About #180-3 Triple Roller Chain
#180-3 triple roller chain complies with ANSI industrial standards, crafted from high-strength alloy steel with precision heat treatment. The triple-row design delivers triple load capacity, ideal for heavy-duty transmission in mining, metallurgy and large conveyor equipment.
Solid pins, thick side plates and seamless rollers enhance wear resistance and tensile strength. Surface anti-rust treatment resists corrosion in harsh dusty & humid environments. Custom options include stainless steel, cottered type and attachment links. Strict dimensional control ensures smooth operation, low noise and long service life. Reliable heavy-load drive solution for high-torque industrial machinery.

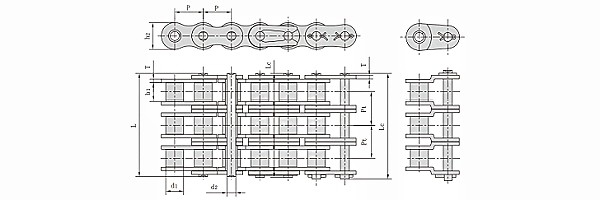

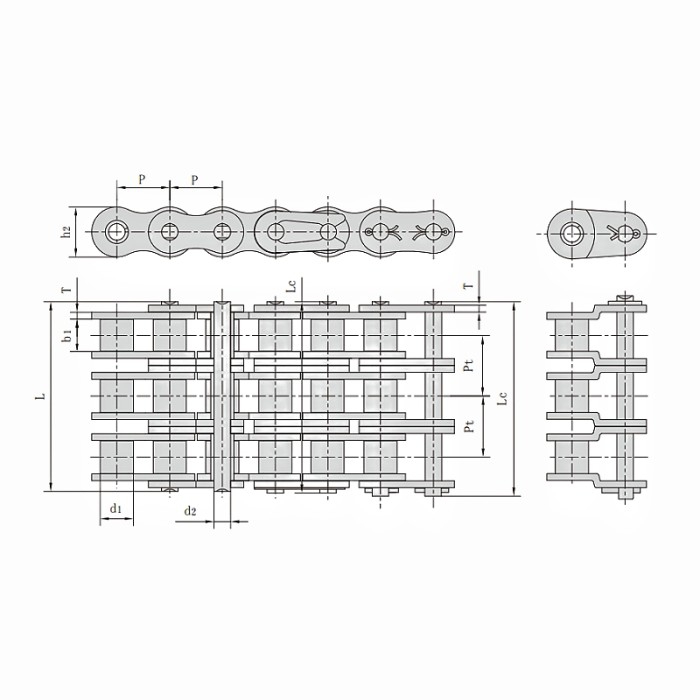

ANSI #180-3 Roller Chains Dimension
Pitch (P): 57.15mm
Roller diameter (d1): 35.71mm
Width between inner plates (b1): 35.48mm
Pin diameter (d2): 17.46mm
Pin length (L): 204.4mm
Pin length (Lc): 210.2mm
Inner plate depth (h2): 53.6mm
Plate thickness (T): 7.2mm
Transverse pitch (Pt）: 65.84mm
