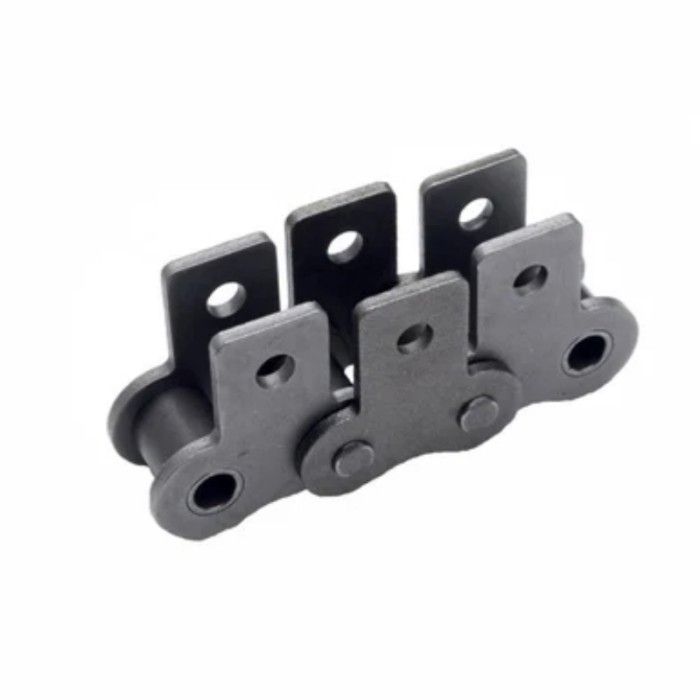

About #160 SK1 Attachment Roller Chain
#160 SK1 attachment roller chain complies with ANSI industrial standards, designed for heavy-load conveying and transmission scenarios. Equipped with solid SK1 side attachments on each link, it enables stable mounting of fixtures, pallets and transport brackets.
Fabricated from high-strength carbon steel with precise heat treatment, the chain delivers outstanding tensile strength, wear resistance and long service life. Smooth roller motion reduces friction noise during continuous operation. Custom stainless steel and heavy-duty versions are available for humid, corrosive environments.
Strict dimensional control ensures seamless matching with standard #160 sprockets. Ideal for large conveyor lines, machinery assembly and bulk material handling. Compact structure, easy installation and low maintenance cut your overall operating costs.

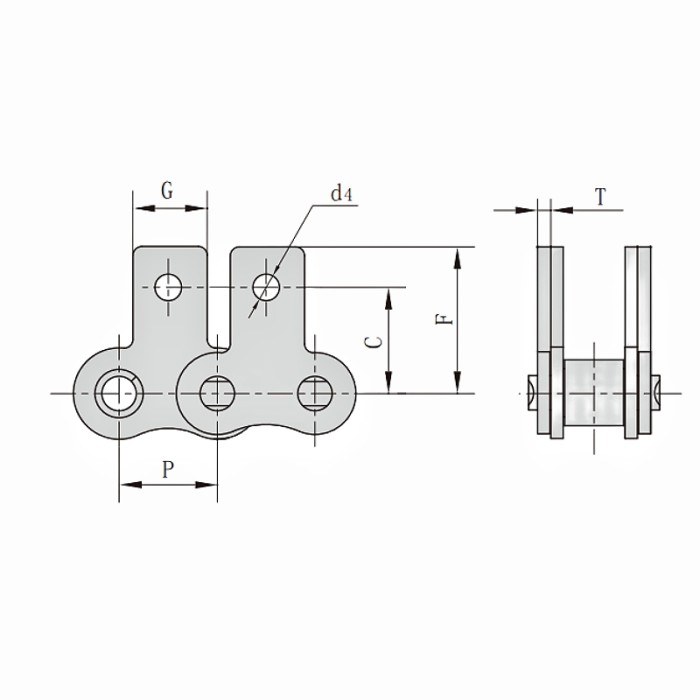

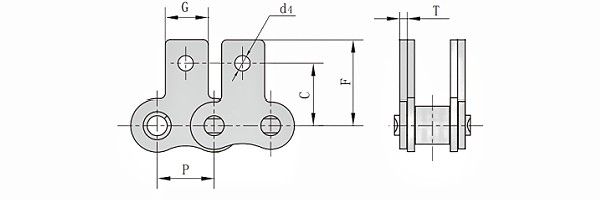

ANSI #160 SK1 Attachment Roller Chain Dimension
Pitch (P): 50.8mm
Attachment Dimension (G): 38.1mm
Attachment Dimension (C): 50.8mm
Attachment Dimension (F): 69.85mm
Attachment Dimension (d4): 13.1mm
Link Plate Thickness (T): 6.4mm
