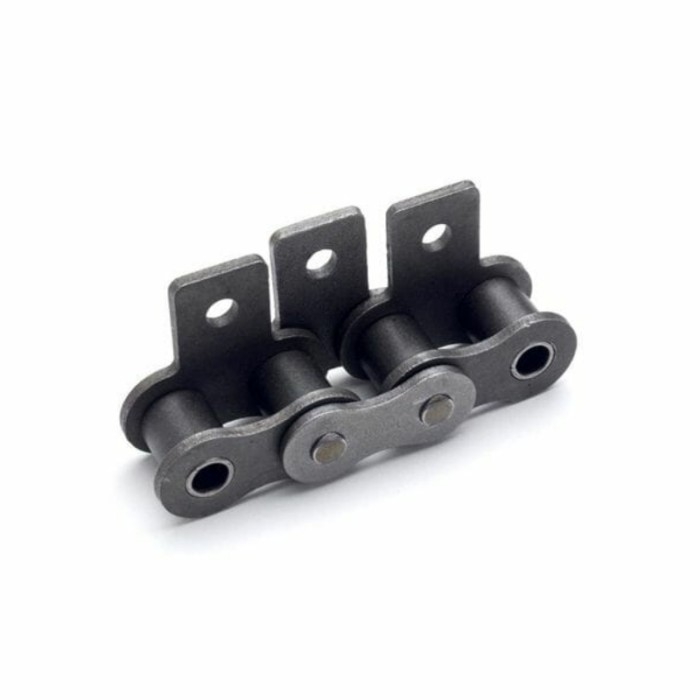

About #160 SA1 Attachment Roller Chain
ANSI-standard #160 roller chain is fitted with offset SA1 bent attachments for offset side mounting. All pins, bushings and rollers are made of heat-treated alloy steel, providing strong tensile strength and long service life under heavy conveying loads.
Precision production controls tight tolerances to lower elongation during continuous running, enabling smooth engagement with matching #160 sprockets. It works reliably for large conveyor systems, agricultural machines and packaging lines. Custom lengths, stainless steel and heavy-duty #160H versions are available upon your request.

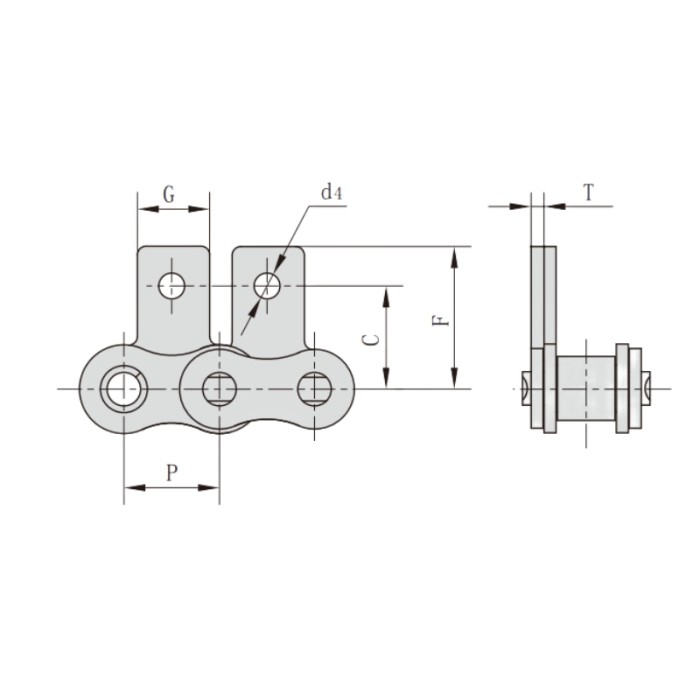

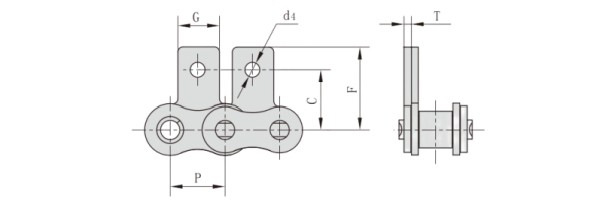

ANSI #160 SA1 Attachment Roller Chain Dimension
Pitch (P): 50.8mm
Attachment Dimension (G): 38.1mm
Attachment Dimension (C): 50.8mm
Attachment Dimension (F): 69.85mm
Attachment Dimension (d4): 13.1mm
Link Plate Thickness (T): 6.4mm
