ANSI #160 Roller Chain With K1 Attachment

  • Categories: Roller Chain With K1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 160-K1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

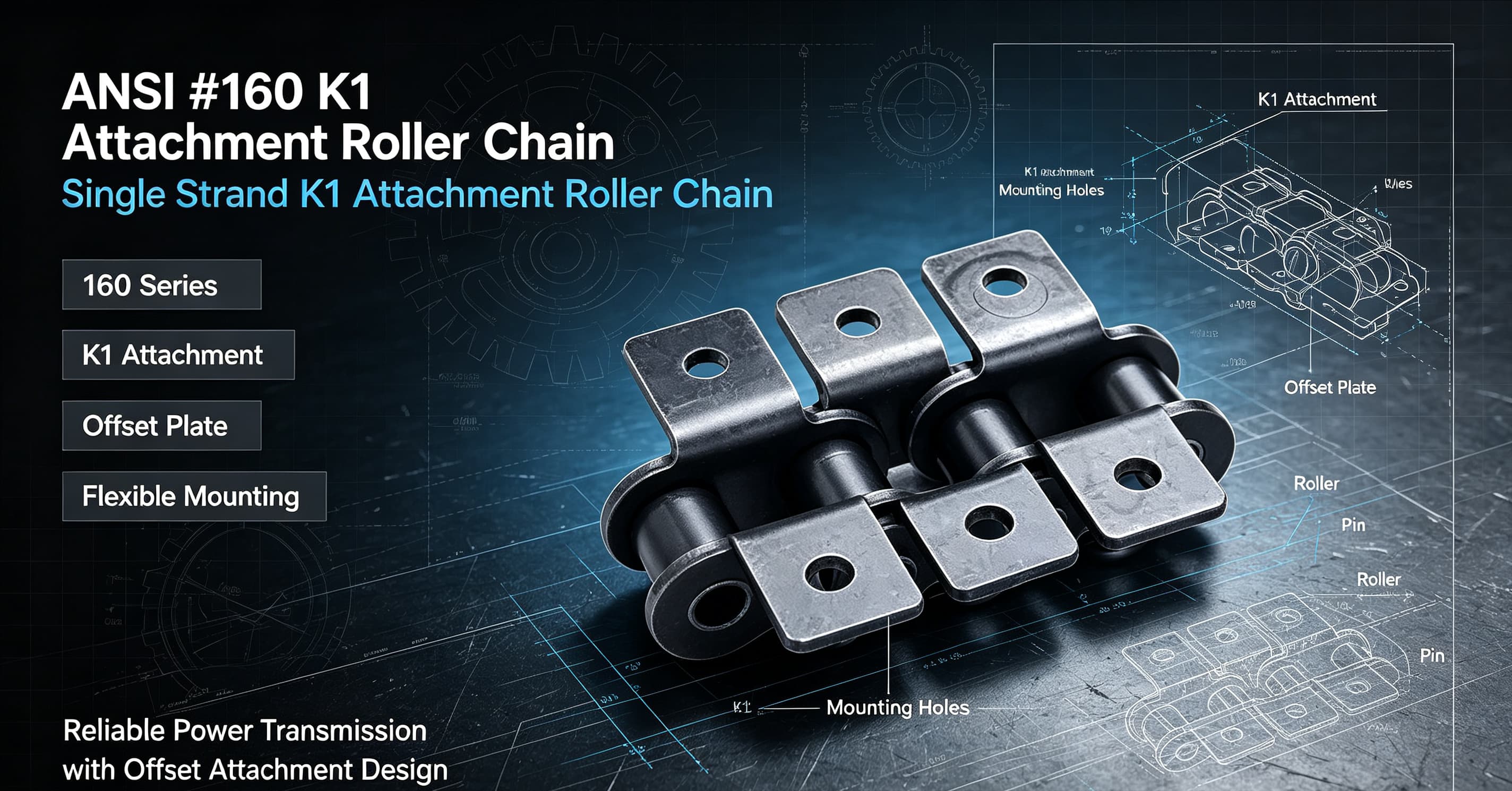

    裁剪旋转 (6)_compressed.jpeg

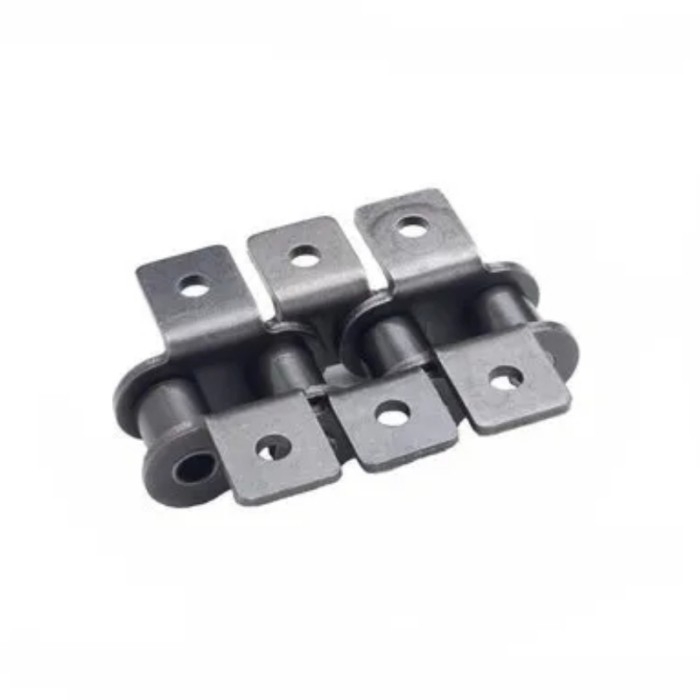

    About #160 K1 Attachment Roller Chain


    Compliant with ANSI standards, this #160 roller chain is equipped with K1 flat two-hole attachments for secure workpiece fixing. Heat-treated alloy steel components deliver great tensile strength and wear resistance for heavy conveying applications.

    Precision manufacturing limits chain elongation under long continuous loads and ensures smooth coordination with matched #160 sprockets. It performs steadily on large automated conveyors, woodworking and packaging machinery. Custom cut lengths, stainless steel and heavy-duty variants can be customized as required.

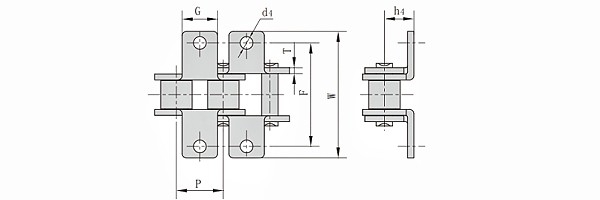

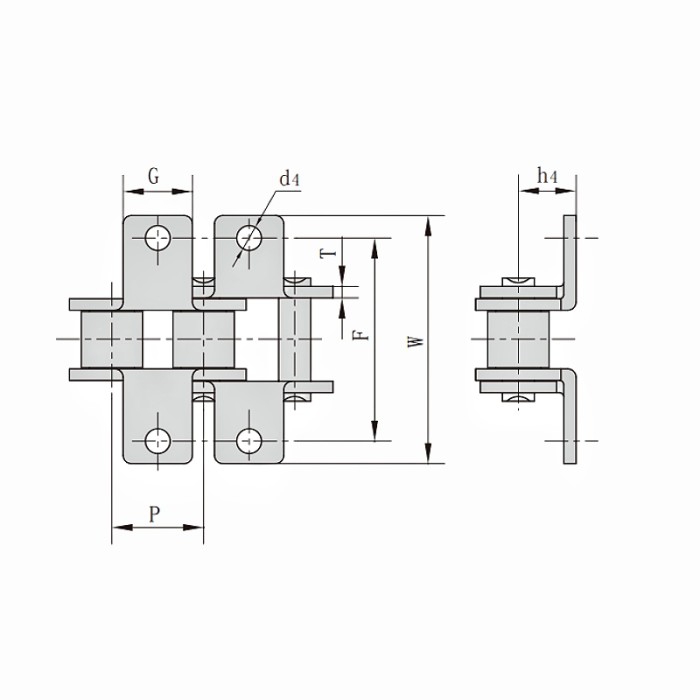

    ANSI #160 K1 Attachment Roller Chain Dimension





    Pitch (P): 50.8mm


  • Attachment Dimension (G): 38.1mm

  • Attachment Dimension (F): 101.6mm

  • Attachment Dimension (W): 142.8mm

  • Attachment Dimension (h4): 31.75mm

  • Attachment Dimension (d4): 13.1mm

  • Link Plate Thickness (T): 6.4mm
