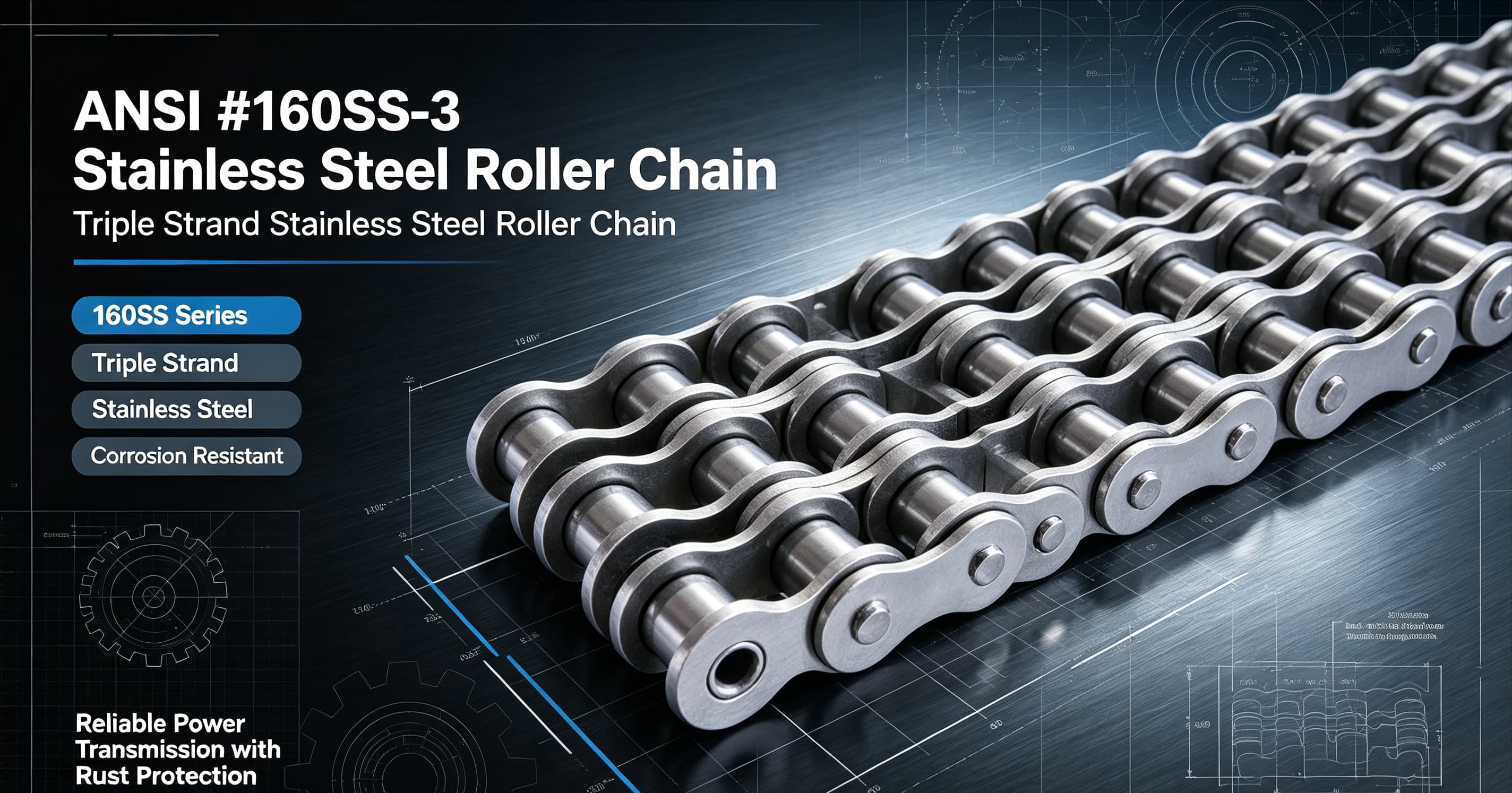

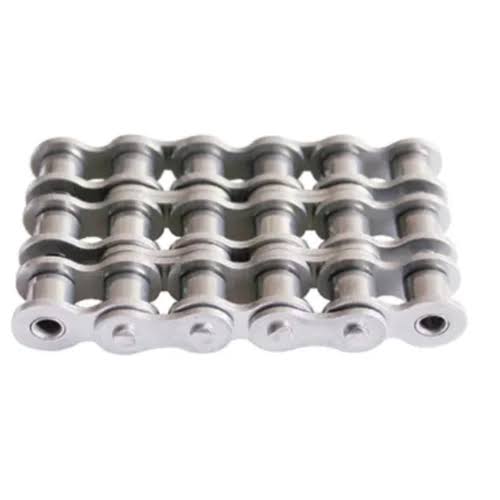

About #160SS-3 Stainless Steel Roller Chain
triple-strand #160SS roller chain meets ANSI specifications, fully crafted from premium stainless steel. It delivers outstanding anti-rust, acid and moisture resistance, perfectly suited for corrosive, humid and sanitary working conditions.
Precision polished components guarantee stable tensile strength and low elongation during continuous operation, meshing smoothly with matched triple stainless steel #160 sprockets. Widely used in food machinery, chemical conveyors and marine transmission equipment. Custom lengths and assorted attachments are available on demand.

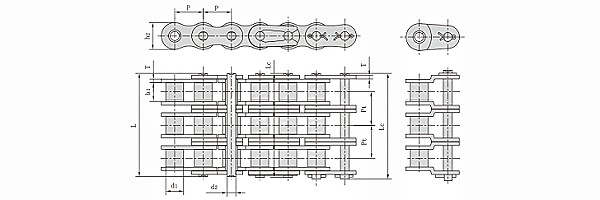

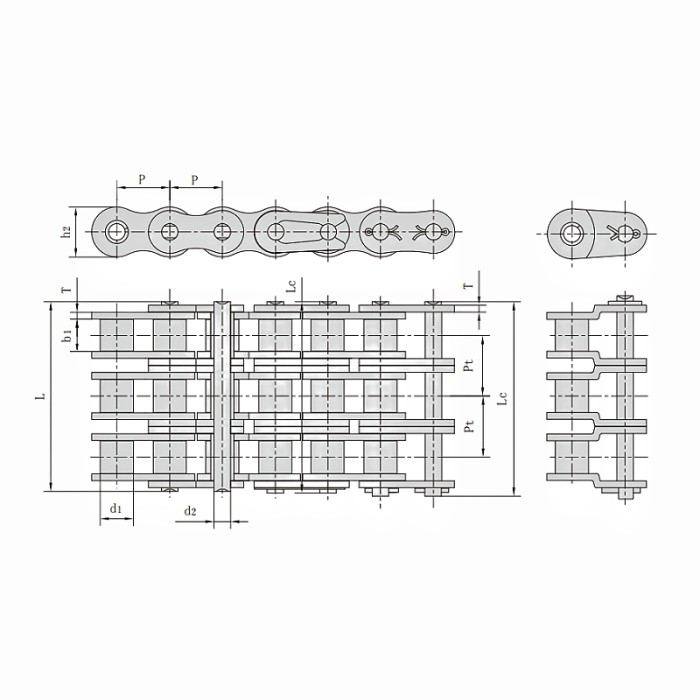

ANSI #160SS-3 Stainless Steel Roller Chain Dimension
Roller diameter : 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 181.8mm
Pin length (Lc): 186.6mm
Inner Plate depth (h2): 47.8mm
Plate thickness (T): 6.4mm
Transverse pitch (Pt): 58.55mm
