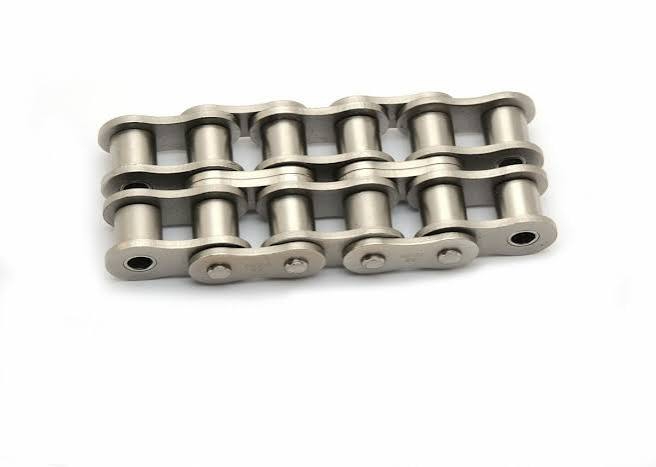

About #160SS-2 Stainless Steel Roller Chain
This duplex #160 stainless steel roller chain follows ANSI standards, fully constructed from corrosion-resistant stainless steel. It resists rust, acid and moisture perfectly for harsh humid or chemical working environments.
Every component undergoes precise polishing processing with stable tensile performance and low elongation during long-term operation, matching perfectly with duplex stainless steel #160 sprockets. Ideal for food processing, marine equipment, chemical conveyors and sanitary production lines. Custom lengths and various attachments can be customized per your requirements.

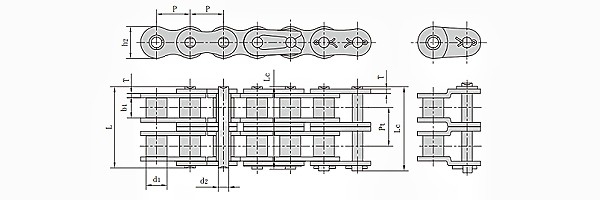

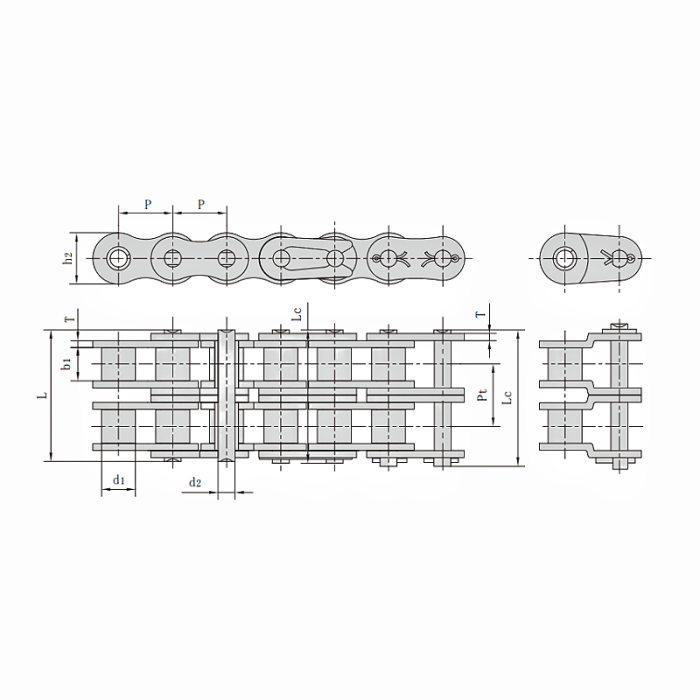

ANSI #160SS-2 Stainless Steel Roller Chain Dimension
Pitch (P): 50.8mm
Roller diameter : 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 123.2mm
Pin length (Lc): 28.1mm
Inner Plate depth (h2): 47.8mm
Plate thickness (T): 6.4mm
Transverse pitch (Pt): 58.55mm
