ANSI #160SS-1 Stainless Steel Roller Chains

  • Categories: Single Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 160SS-1 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction

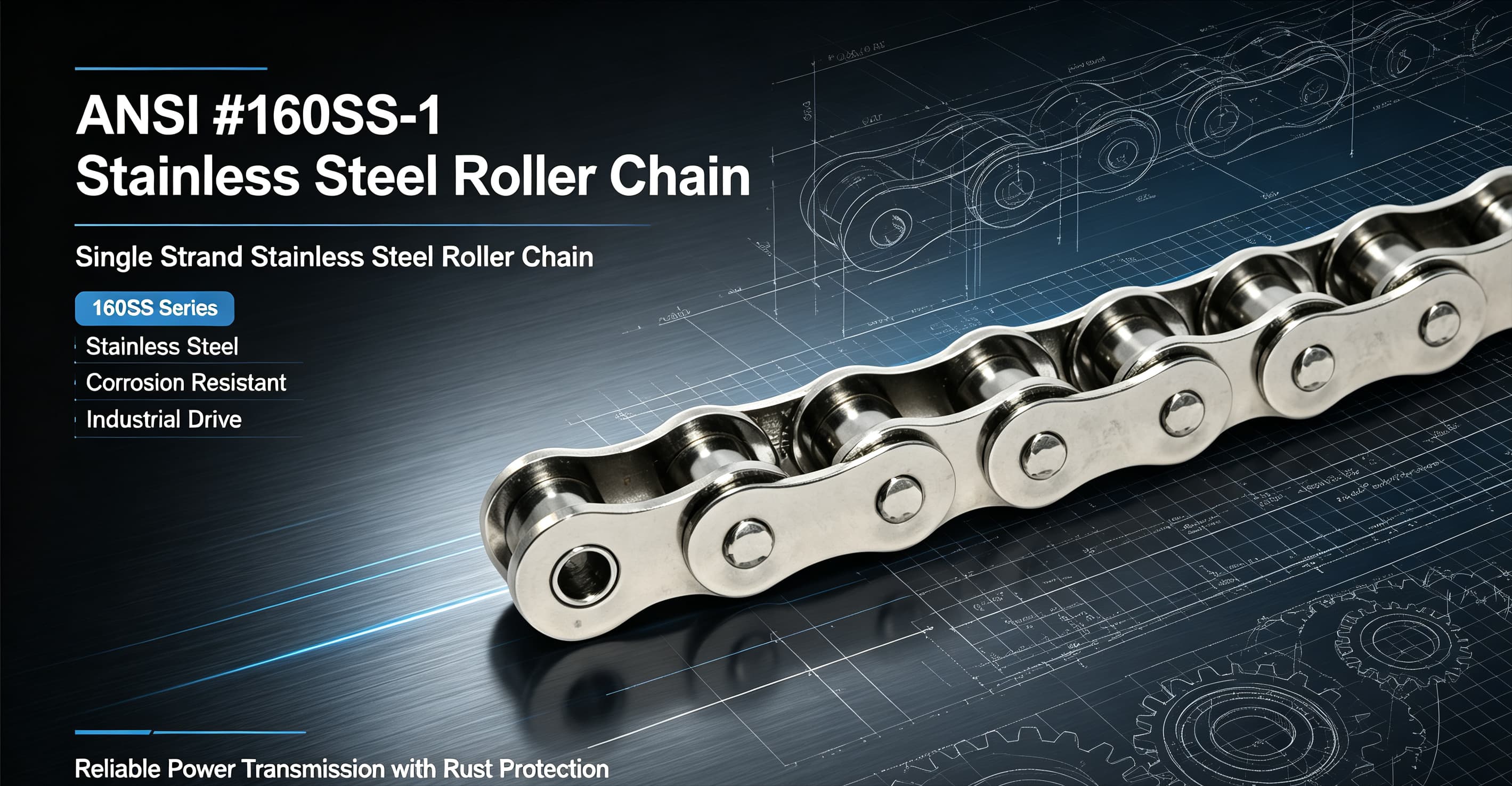

    裁剪旋转 (2)_compressed.jpeg

    About #160SS Stainless Steel Roller Chain

    #160SS roller chain complies strictly with ANSI B29.1 standards with a 2-inch pitch, fully crafted from premium 304 stainless steel for outstanding rust, acid and alkali resistance.


    All pins, bushings and rollers undergo precision machining and cold hardening to boost wear resistance. Pre-stretched before delivery to reduce initial elongation and ensure smooth stable operation.


    Clean, hygienic and adaptable to humid, high-low temperature and frequent washdown scenarios. Widely adopted in food processing, pharmaceutical, chemical and marine conveying equipment. Riveted and cottered styles available for easy installation and maintenance.


    ANSI #160SS Stainless Steel Roller Chain Dimension





    Pitch (P): 50.8mm

  • Roller diameter (d1): 28.58mm

  • Width between inner plates (b1) : 31.55mm

  • Pin diameter (d2): 14.27mm

  • Pin length (L): 64.8mm

  • Pin length (Lc): 69.6mm

  • Inner plate depth (h2): 47.8mm

  • Plate thickness (T): 6.4mm
