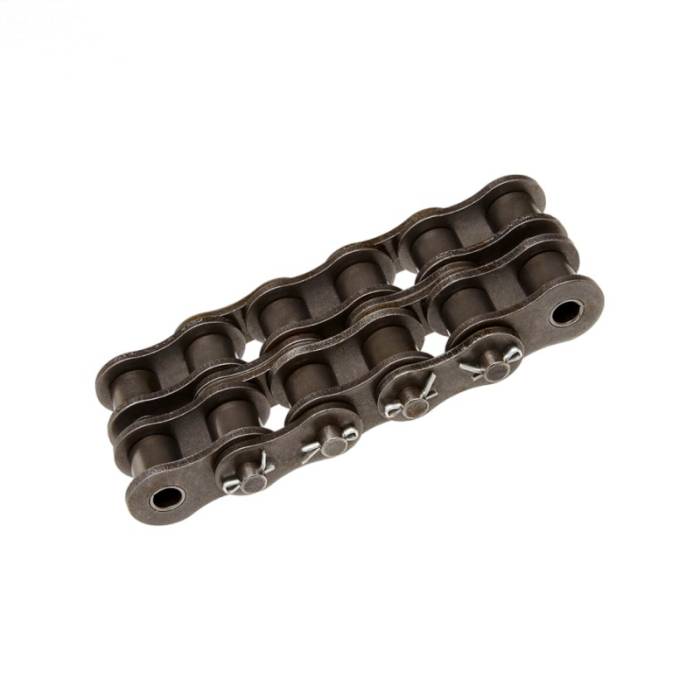

This duplex ANSI #160 roller chain adopts a cottered pin structure for convenient assembly and quick disassembly during maintenance. All core components are heat-treated alloy steel, delivering high tensile strength and great wear resistance under heavy loads.
Precision manufacturing controls tight tolerances to reduce elongation in long-term operation, meshing perfectly with matched double #160 sprockets. Suited for heavy conveyors, agricultural equipment and construction machinery. Custom lengths, attachments and stainless steel alternatives can be customized as requested.

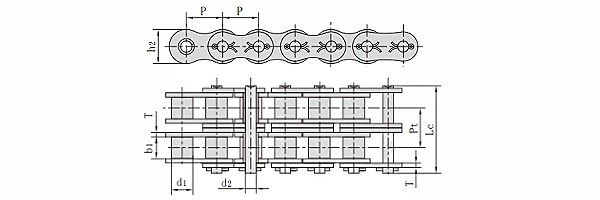

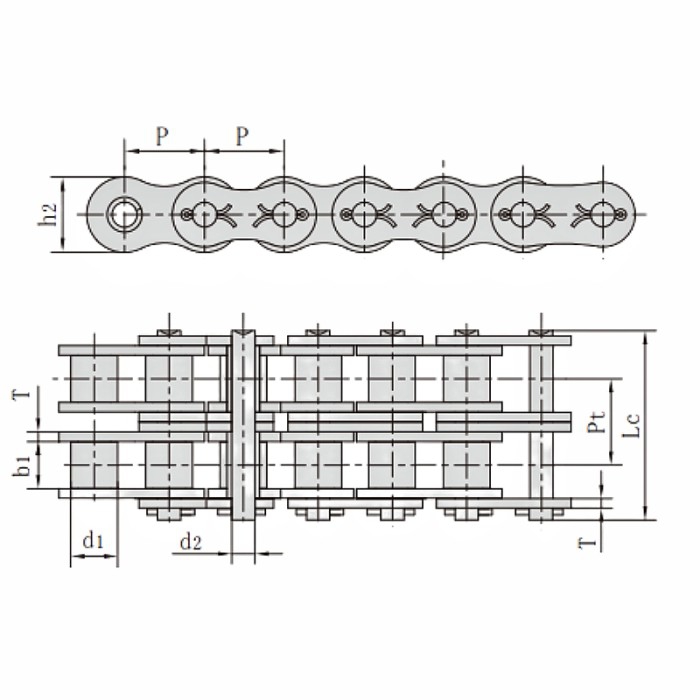

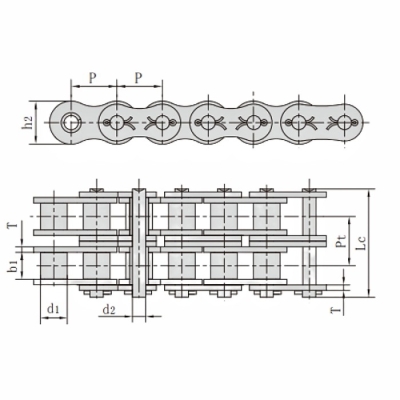

ANSI #160-2 Cottered Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (Lc): 128.1mm
Inner plate depth (h2): 47.8mm
Plate thickness (T): 6.4mm
Transverse pitch (Pt): 58.55mm
