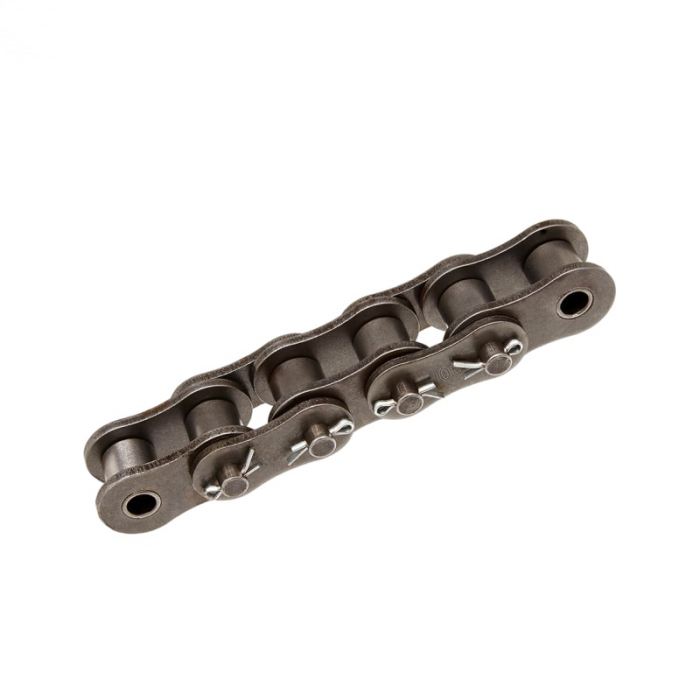

This ANSI standard single-strand #160 cottered roller chain adopts cotter pin design for easy disassembly and reliable connection. All pins, bushings and rollers are made of heat-treated alloy steel with high tensile strength and excellent wear resistance.
Strict precision machining ensures low elongation and smooth engagement with matching #160 sprockets. The cotter structure facilitates quick maintenance and part replacement, widely used in heavy conveyors, agricultural and construction machinery. Custom lengths, heavy-duty and stainless steel options are available on demand.

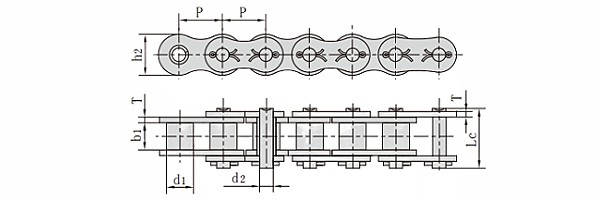

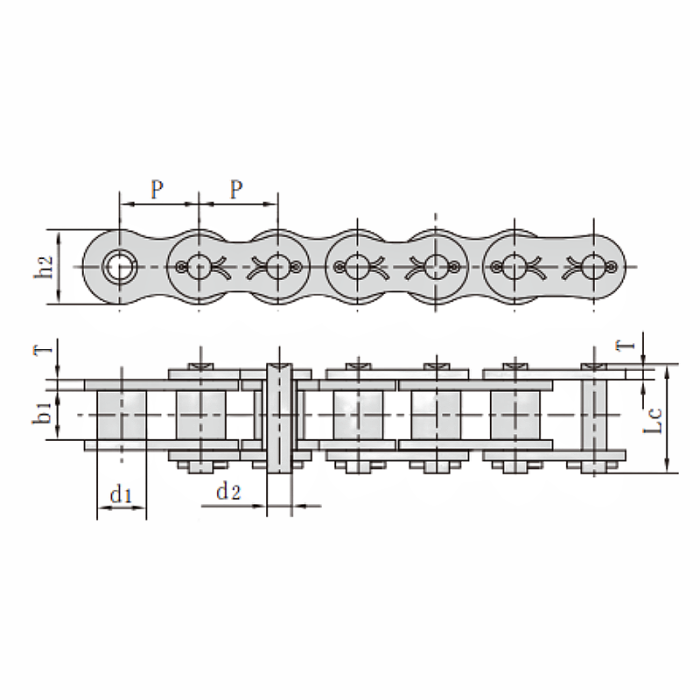

ANSI #160-1 Cottered Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (Lc): 69.6mm
Inner plate depth (h2): 47.8mm
Plate thickness (T) : 6.4mm
