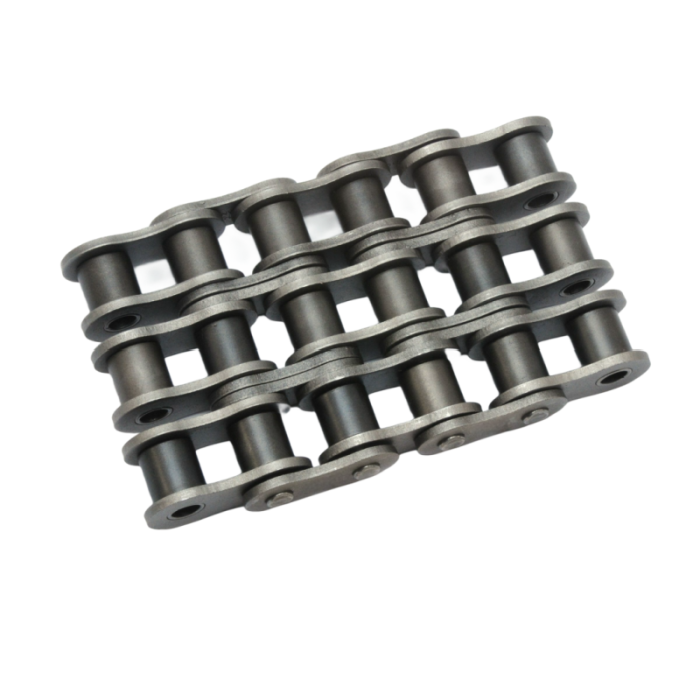

Complying with ANSI B29.1 standard, #160H-3 triple heavy-duty roller chain adopts reinforced thick link plates and fully heat-treated alloy steel parts. It features remarkable tensile strength and outstanding shock resistance for ultra-high load transmission.
Precision manufacturing limits chain elongation under long continuous operation, achieving stable meshing with matched triple #160H sprockets. Ideal for mining machinery, large conveyors, construction equipment and heavy industrial drive systems. Custom lengths, different attachments and stainless steel chains are available upon your request.

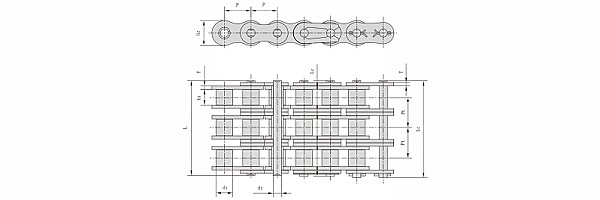

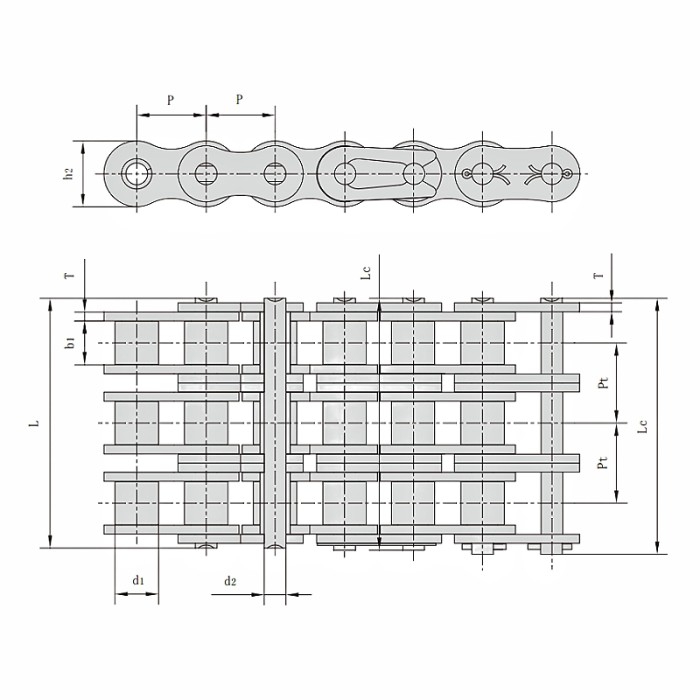

ANSI #160H-3 Heavy Duty Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 192mm
Pin length (Lc): 196.8mm
Inner plate depth (h2): 47.8mm
Plate thickness (T): 7.2mm
Transverse pitch (Pt）: 61.9mm
