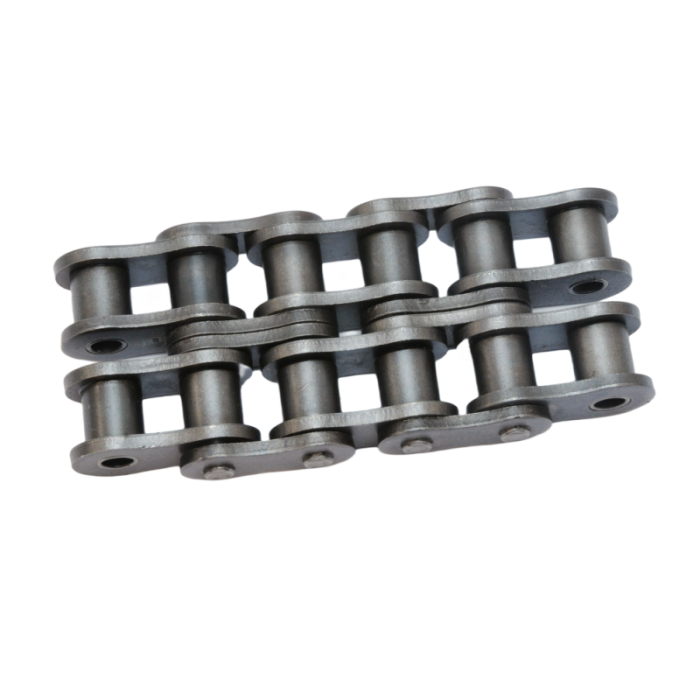

#160H-2 double roller chain meets ANSI B29.1 standards, upgraded with thickened side plates for extreme heavy-load transmission. All core parts are heat-treated alloy steel, delivering superior tensile strength and anti-impact performance.
Precision production effectively restrains chain elongation during long-hour operation, meshing smoothly with matched duplex #160H sprockets. It fits mining equipment, large conveying lines, construction and high-torque industrial drives. Custom lengths, various attachments and stainless steel versions are available on request.

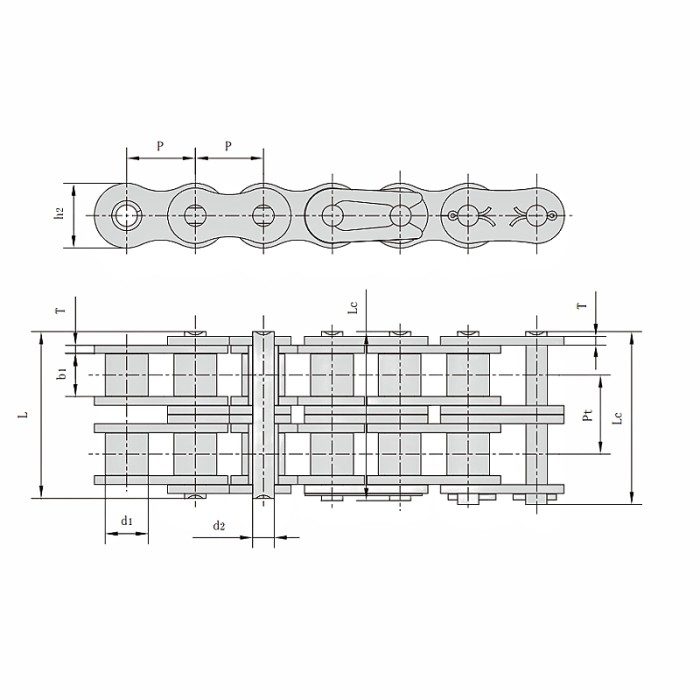

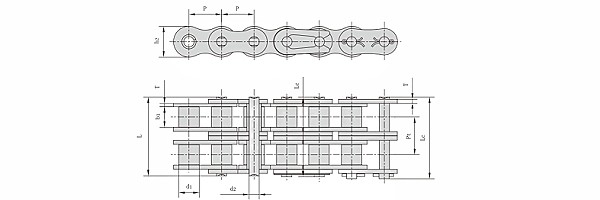

ANSI #160H-2 Heavy Duty Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 130.1mm
Pin length (Lc): 134.9mm
Inner plate depth (h2): 47.8mm
Plate thickness (T): 7.2mm
Transverse pitch (Pt): 61.9mm
