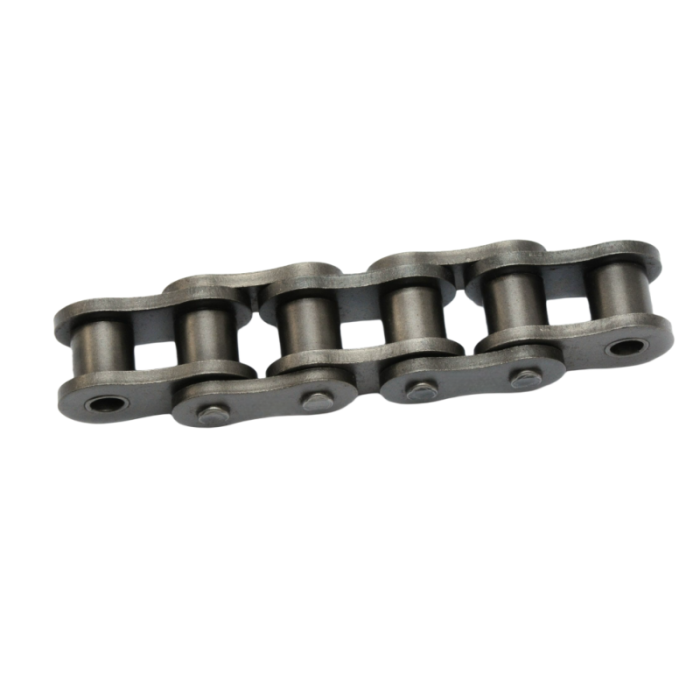

This ANSI-compliant #160H heavy-duty roller chain is designed for high-torque, harsh working conditions. Reinforced thicker link plates and fully heat-treated alloy steel pins, bushings and rollers greatly boost tensile strength, shock resistance and wear lifespan.
Fine precision manufacturing controls low elongation under long continuous heavy loads, realizing smooth meshing with matching #160 sprockets. Widely applied in mining gear, large conveyors, construction and agricultural heavy machinery. Custom lengths, attachments and stainless steel alternatives can be customized as required.

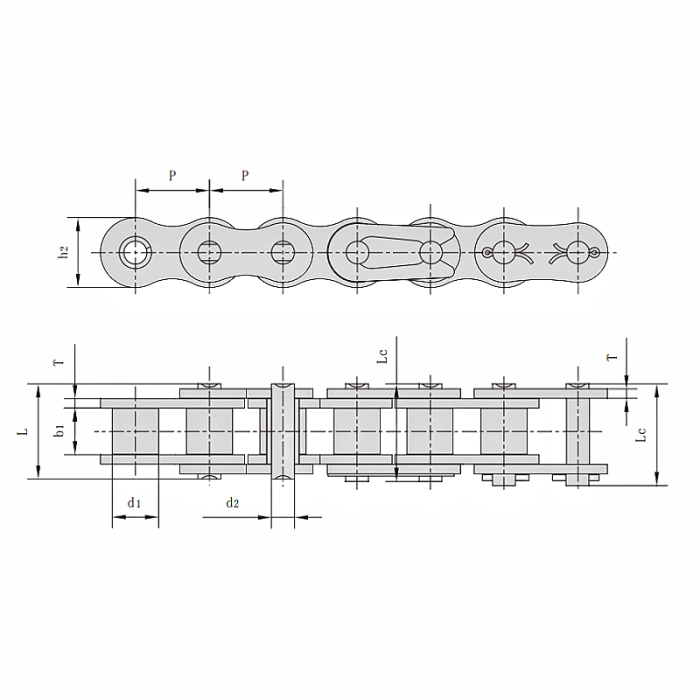

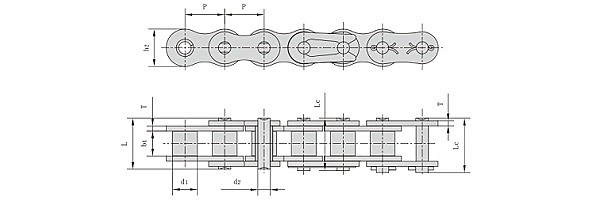

ANSI #160H Heavy Duty Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 68.2mm
Pin length (Lc): 73mm
Inner plate depth (h2): 47.8mm
Plate thickness (T) : 7.2mm
