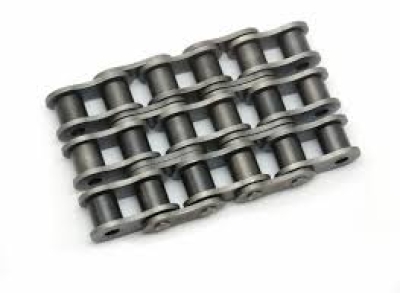

Complying with ANSI B29.1 standard, #160-3 triple roller chain is built for ultra-heavy power transmission. All key components are made of heat-treated alloy steel with superior tensile strength and impact resistance.
Strict precision control keeps low elongation under long-time heavy load operation, delivering stable power transmission with matched #160 triple sprockets. Perfect for mining equipment, large conveyors, heavy machinery and industrial drive systems. Custom lengths, heavy-duty and stainless steel versions can be customized per client demands.

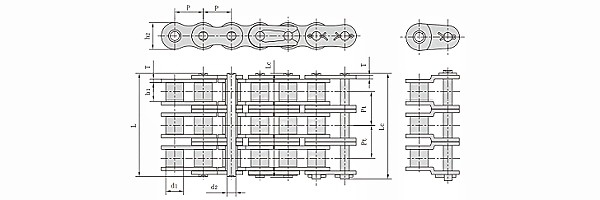

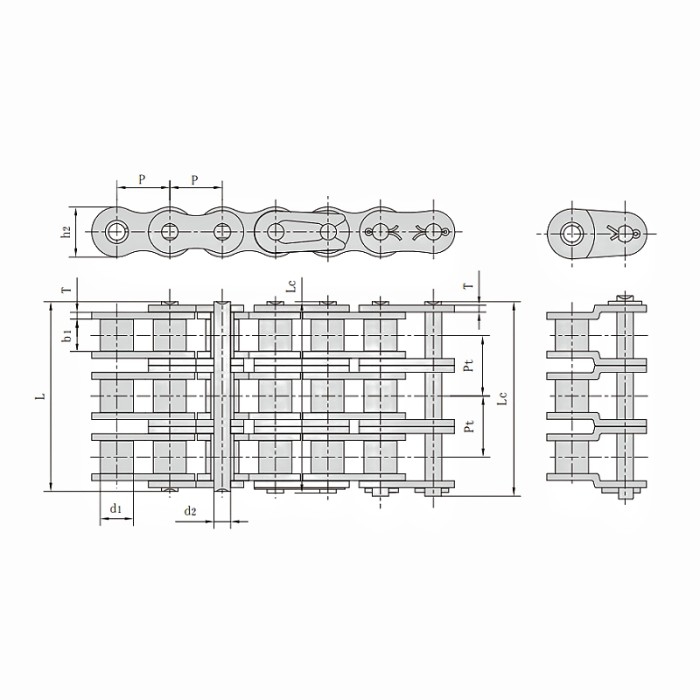

ANSI #160-3 Roller Chains Dimension
Pitch (P): 50.8mm
Roller diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 181.8mm
Pin length (Lc): 186.8mm
Inner plate depth (h2): 47.8mm
Plate thickness (T): 6.4mm
Transverse pitch (Pt）: 58.55mm
