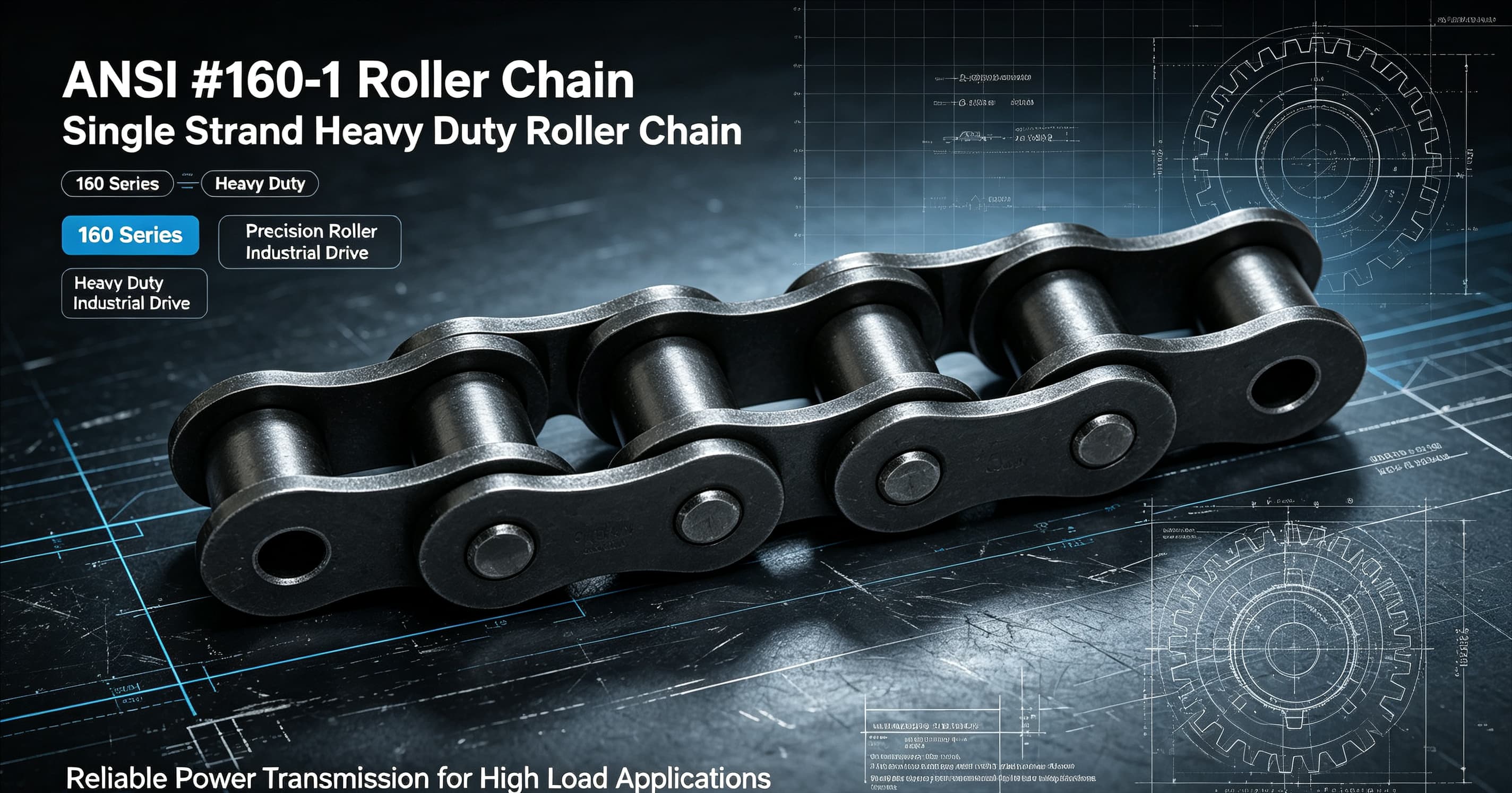

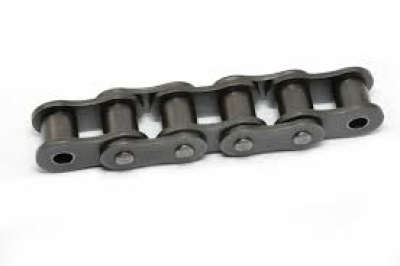

About #160-1 Roller Chain
Fully compliant with ANSI B29.1 standard, this 2-inch pitch heavy-duty roller chain adopts premium alloy carbon steel with precise heat treatment, delivering outstanding tensile strength, anti-fatigue and wear resistance. All components go through pre-stretching and surface anti-rust lubrication to reduce friction and extend service life.
Perfectly interchangeable with matched #160 sprockets, it fits heavy-load transmission scenarios including mining machinery, large conveyors and agricultural equipment. Riveted or cottered styles are available for flexible installation. Strict dimensional inspection ensures stable, low-noise long-term operation under continuous heavy working conditions.
ANSI #160-1 Roller Chains Dimension
Pitch (p): 50.8mm
Roller Diameter (d1): 28.58mm
Width between inner plates (b1): 31.55mm
Pin diameter (d2): 14.27mm
Pin length (L): 64.8mm
Pin length (Lc): 69.6mm
Inner plate depth (h2): 47.8mm
Plate thickness (T): 6.4mm
