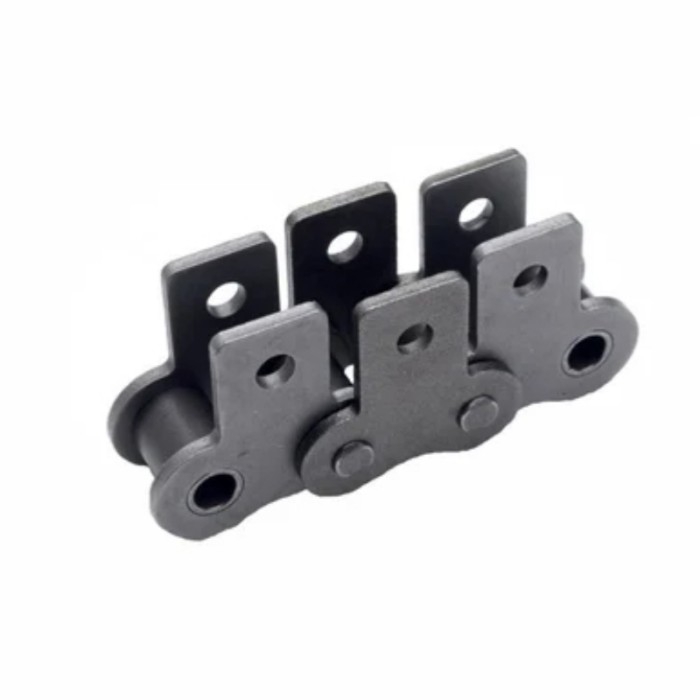

ANSI #140 roller chain comes with SK1 offset bent attachments for offset mounting needs. Heat-treated alloy steel pins, rollers and bushings bring great tensile strength and long service life under heavy conveying loads.
Precision machining ensures low elongation and seamless coordination with matching #140 sprockets, enabling stable quiet running. Suitable for packaging, agricultural, woodworking and automated conveyor systems. Custom lengths, stainless steel and heavy-duty variants can be customized as requested.

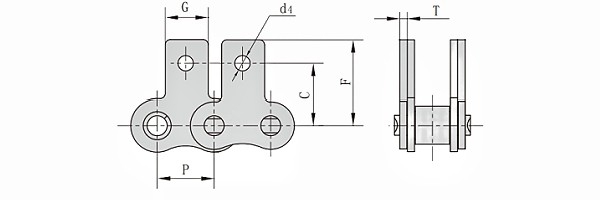

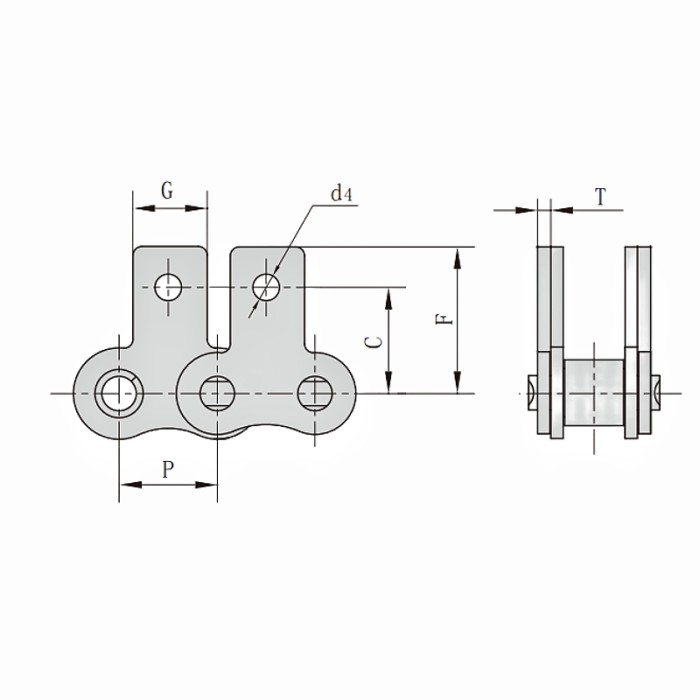

ANSI #140 SK1 Attachment Roller Chain Dimension
Pitch (P): 44.45mm
Attachment Dimension (G): 34.9mm
Attachment Dimension (C): 44.5mm
Attachment Dimension (F): 62mm
Attachment Dimension (d4): 11.4mm
Link Plate Thickness (T): 5.6mm
