ANSI #140 Roller Chain With SA1 Attachment

  • Categories: Roller Chain With SA1 Attachments
  • Brand: HXST-Drive
  • Model: ANSI 140-SA1 Roller Chain
  • Material: Carbon Steel
  • Color: Natural
  • Surface Treatment: Shot Peening /Heat Treatment/Plating/Lubrication
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (2)_compressed.jpeg

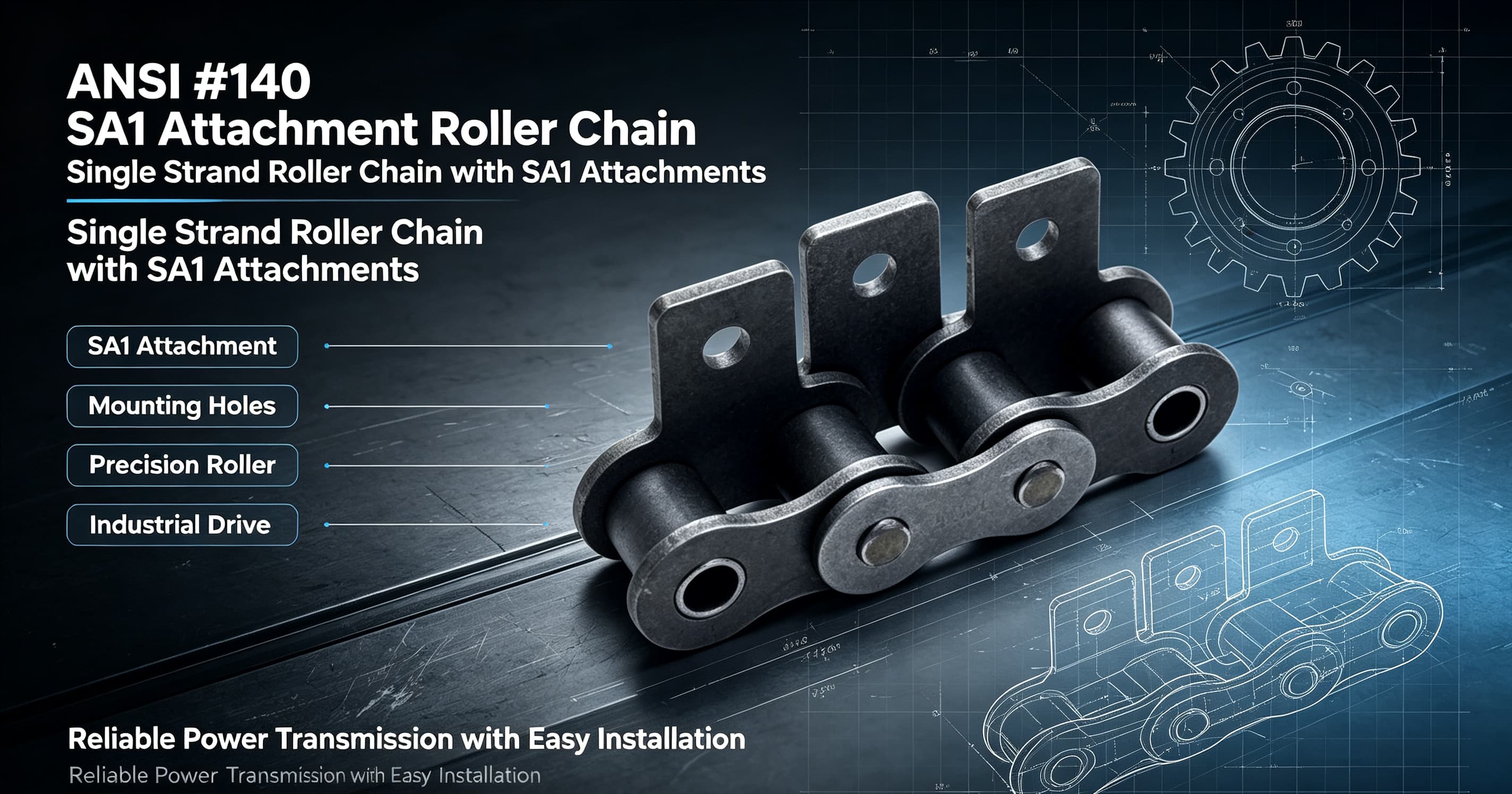

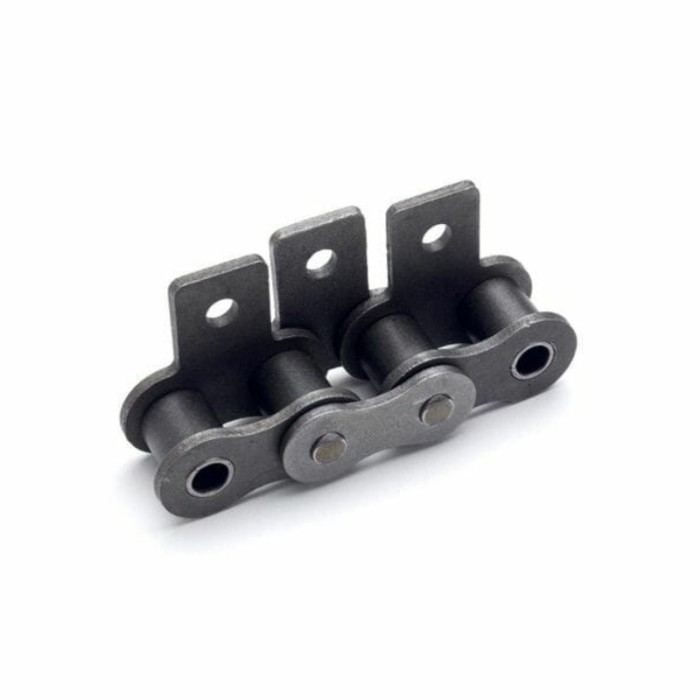

    About #140 SA1 Attachment Roller Chain

    ANSI #140 roller chain comes with SA1 offset bent attachments for offset mounting needs. Heat-treated alloy steel pins, rollers and bushings bring great tensile strength and long service life under heavy conveying loads.


    Precision machining ensures low elongation and seamless coordination with matching #140 sprockets, enabling stable quiet running. Suitable for packaging, agricultural, woodworking and automated conveyor systems. Custom lengths, stainless steel and heavy-duty variants can be customized as requested.

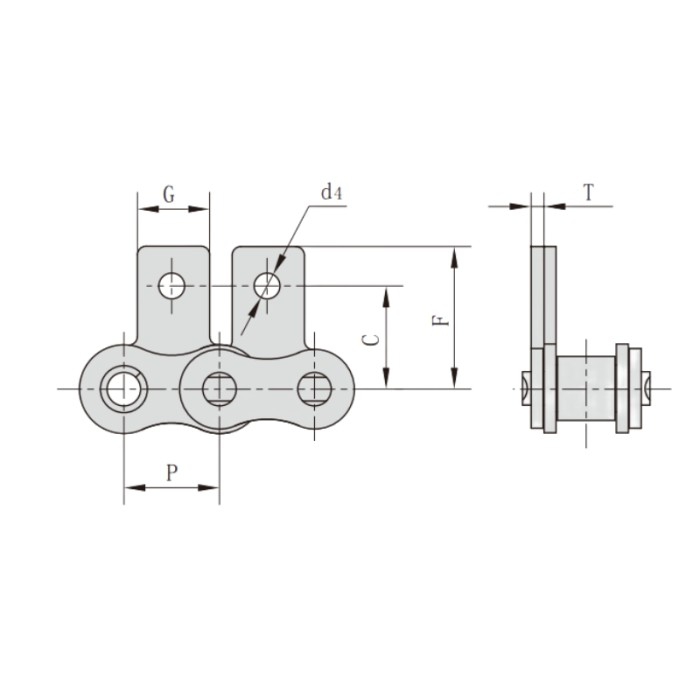

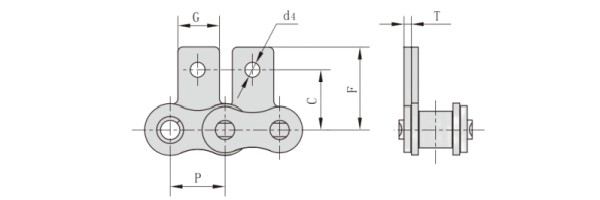

    ANSI #140 SA1 Attachment Roller Chain Dimension





  • Pitch (P): 44.45mm

  • Attachment Dimension (G): 34.9mm

  • Attachment Dimension (C): 44.5mm

  • Attachment Dimension (F): 62mm

  • Attachment Dimension (d4): 11.4mm

  • Link Plate Thickness (T): 5.6mm
