ANSI #140SS-3 Stainless Steel Roller Chains

  • Categories: Triple Strand Roller Chains
  • Brand: HXST-Drive
  • Model: ANSI 140SS-3 Roller Chain
  • Material: Stainless Steel
  • Color: Silver
  • Accuracy: High Precision Roller Chain
  • Quality: Durable Roller Chain
  • Interchangeability: Directly Interchangeable With Other Brands
  • +86 15336786278
    jake@hxstdrive.com
    • Product Introduction

    Product Introduction


    裁剪旋转 (5)_compressed.jpeg

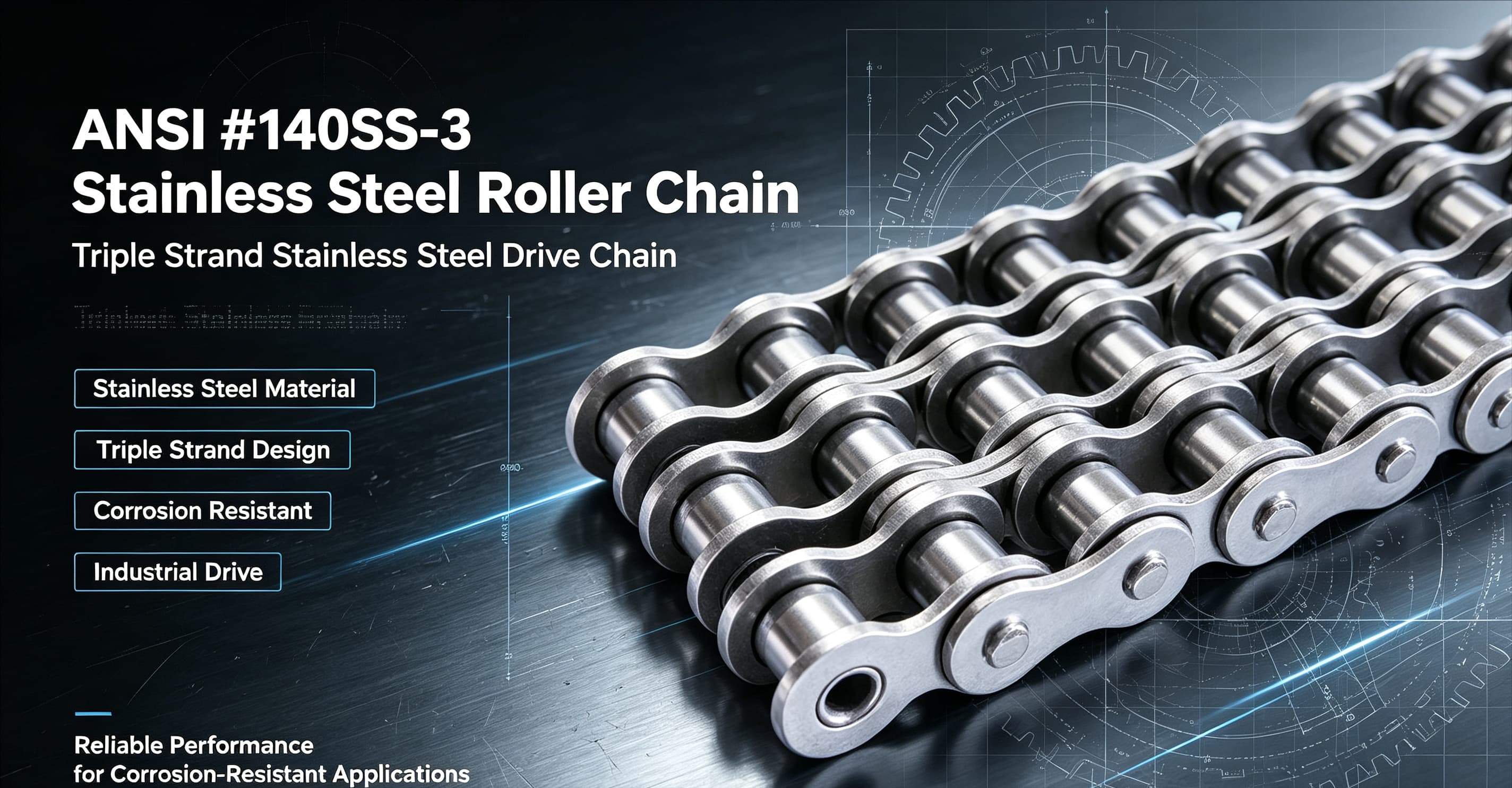

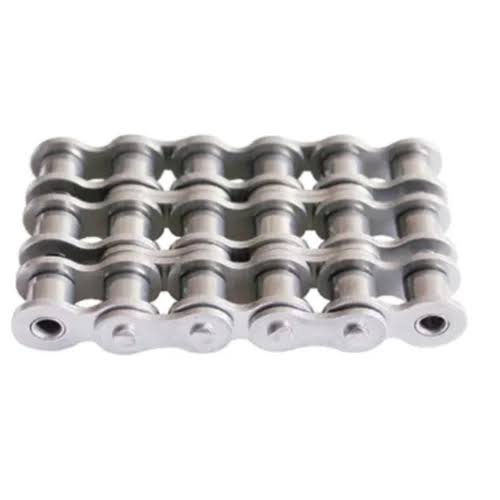

    About #140SS-3 Stainless Steel Roller Chain

    #140SS-3 triple stainless steel roller chain meets ANSI industrial standards, made of premium SUS304 stainless steel. It boasts strong corrosion, rust and chemical resistance, ideal for damp, acidic and hygienic working conditions.

    The 3-strand structure greatly boosts load bearing capacity and ensures steady power transmission. Precision machined components and tight riveting reduce friction and extend service life.

    Suitable for food machinery, marine equipment and chemical conveyors. Custom attachments, SUS316 options and matching connecting links are supported. Smooth running, easy to clean and durable for long-term heavy-duty use.

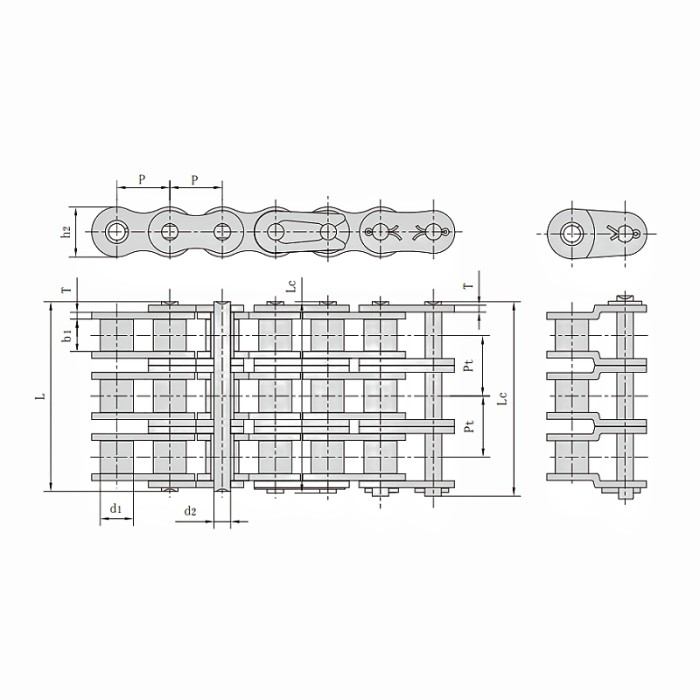

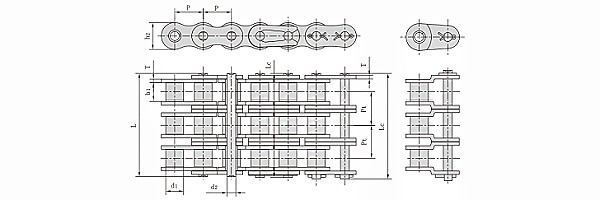

    ANSI #140SS-3 Stainless Steel Roller Chain Dimension





    Pitch (P): 38.1mm
  • Roller diameter : 22.23mm
  • Width between inner plates (b1): 25.22mm
  • Pin diameter (d2): 11.1mm
  • Pin length (L): 141.4mm
  • Pin length (Lc): 145.2mm
  • Inner Plate depth (h2): 35.7mm
  • Plate thickness (T): 4.8mm
  • Transverse pitch (Pt): 45.44mm
